Front Differential Assembly Removal

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

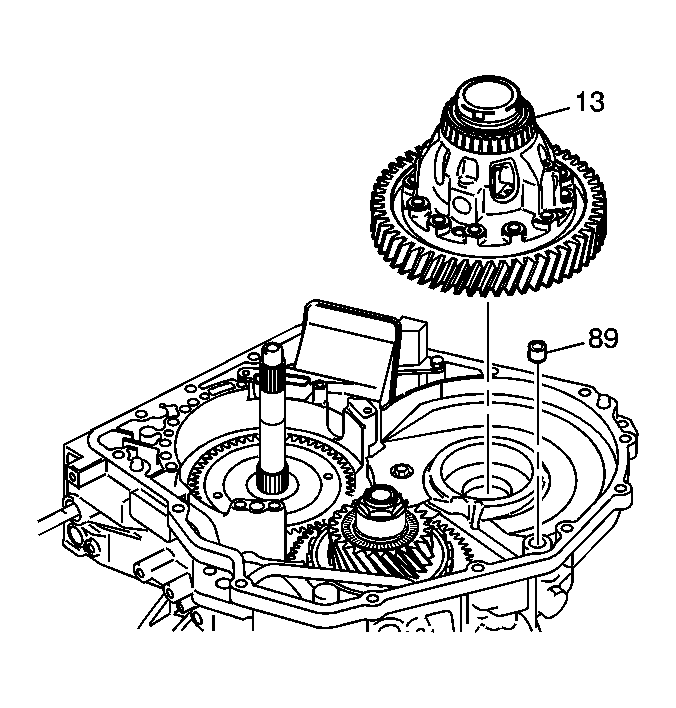

    Fig 1: View Of Front Differential Assembly & Case Fluid Passage Gasket
    GM894633Courtesy of GENERAL MOTORS CORP.
  1. Remove the front differential assembly (13).
  2. Remove the case fluid passage gasket (89).
