Front Differential Assembly Installation
Front Differential Assembly Installation
WARNING:
This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

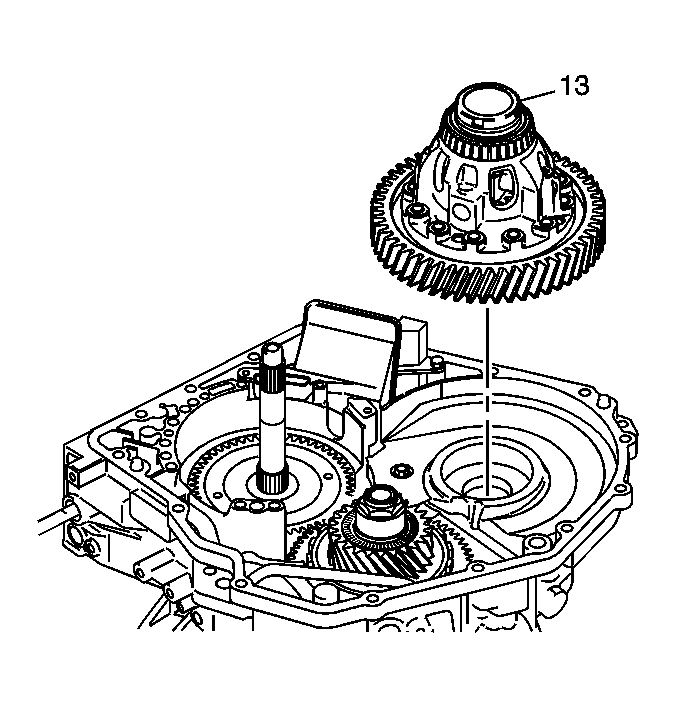

Fig 1: Installing Front Differential Assembly
Courtesy of GENERAL MOTORS CORP.
Install the front differential assembly (13) into the transmission case assembly.
