Forward and Direct Clutch Assembly Installation

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: View Of Forward & Direct Clutch Assembly

Courtesy of GENERAL MOTORS CORP.

Install the forward clutch and direct clutch assembly (23). Rotate the clutch assembly during installation in order to index the forward and direct clutch plates with the rear internal gear and the rear sun gear assembly.

Fig 2: Measuring Dimension A

Courtesy of GENERAL MOTORS CORP.

Measure dimension a.
Installation Height: Dimension a should be 50.850-51.825 mm (2.002-2.040 in).
If dimension a is greater than specification, index the forward and direct clutch assembly until the correct specification is met.

Fig 3: View Of Lube Fluid Pipe

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Do not bend or damage the lube fluid pipe.

Using a plastic hammer, install the lube fluid pipe (85).

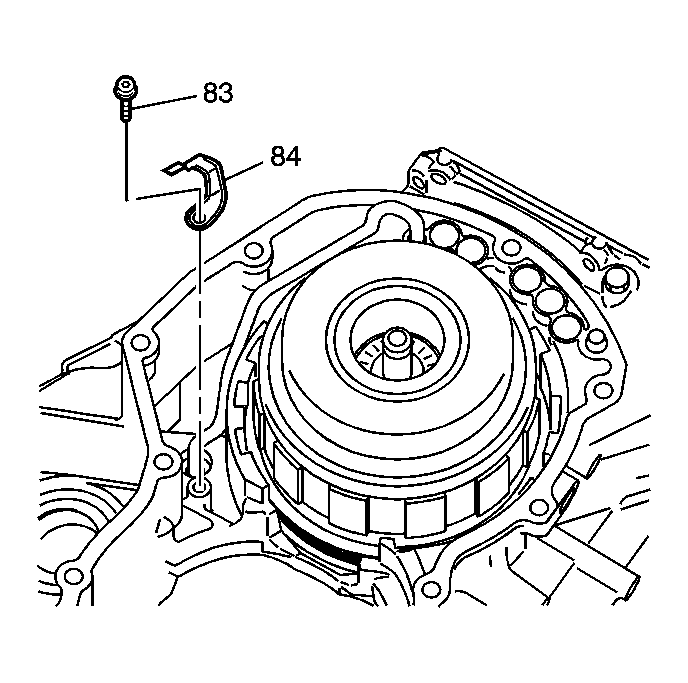

Fig 4: View Of Lube Fluid Pipe Retainer

Courtesy of GENERAL MOTORS CORP.

Install the lube fluid pipe retainer (84)

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the lube fluid pipe retainer bolt (83).
Tighten: Tighten the lube fluid pipe retainer bolt to 5 N.m (44 lb in).

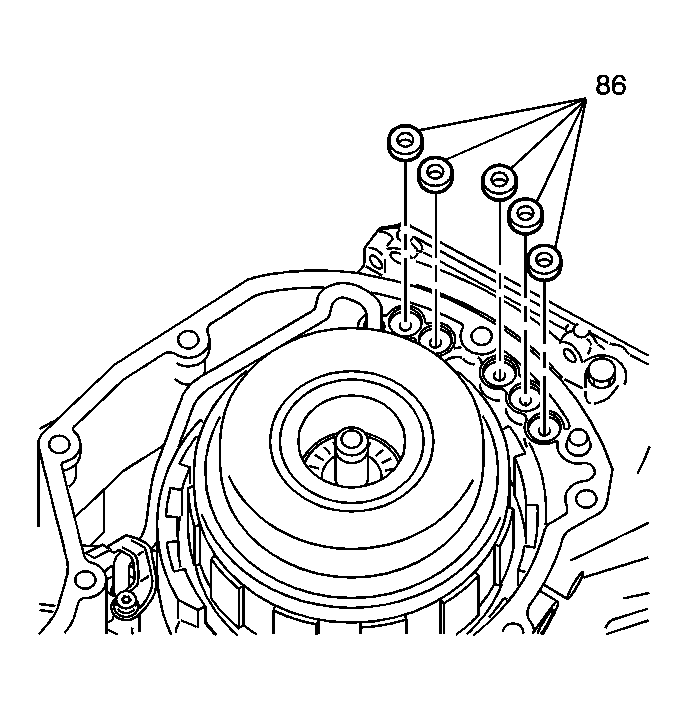

Fig 5: Identifying Case Fluid Passage Seals

Courtesy of GENERAL MOTORS CORP.

Apply grease to the 5 new case fluid passage seals.
Install the 5 new case fluid passage seals (86) into the transmission case assembly.
