Installation Procedure

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

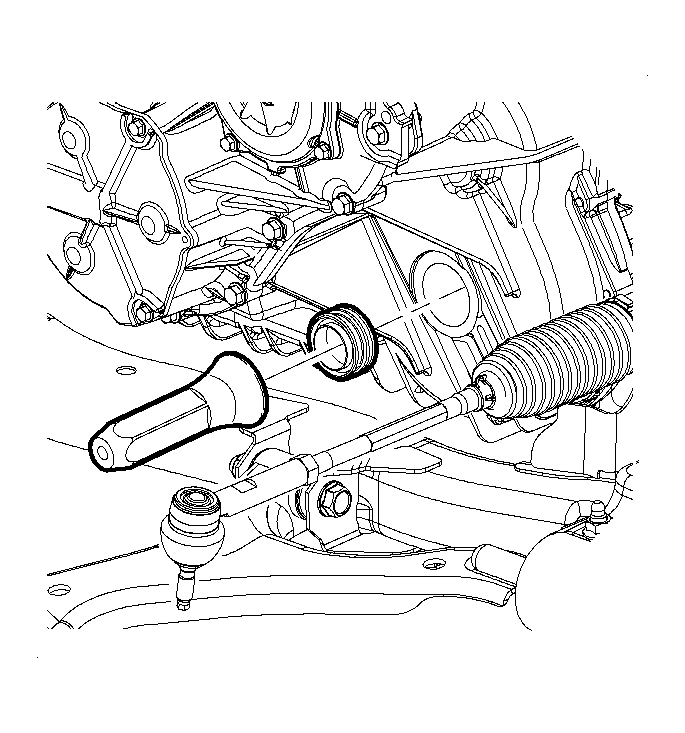

    Fig 1: Installing Left Axle Seal
    GM997958Courtesy of GENERAL MOTORS CORP.
  1. Using the Axle Seal Installer J 44809  , install the left axle seal into the transaxle case assembly.
  2. Install the front axle shaft. Refer to Wheel Drive Shaft Replacement - Front installation procedure in Driveline Axle.
