Drain Plug Installation

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

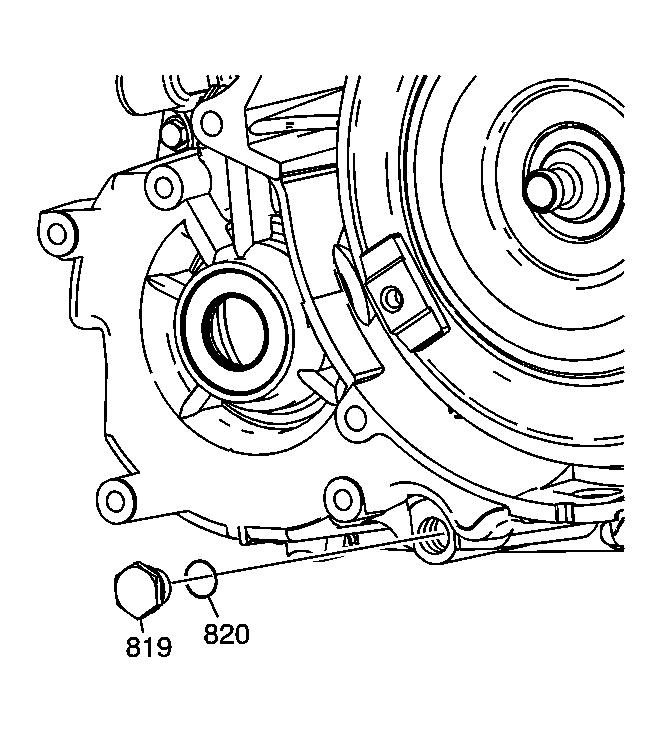

Fig 1: View Of Transmission Drain Plug & Gasket

Courtesy of GENERAL MOTORS CORP.

Install a new gasket (820) on the drain plug (819).

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the drain plug (819) into the case assembly (17).
Tighten: Tighten the drain plug to 23.5-54.9 N.m (17.33-40.50 lb ft).
