Case Cover and 1-2 Reverse Clutch Assembly Removal

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

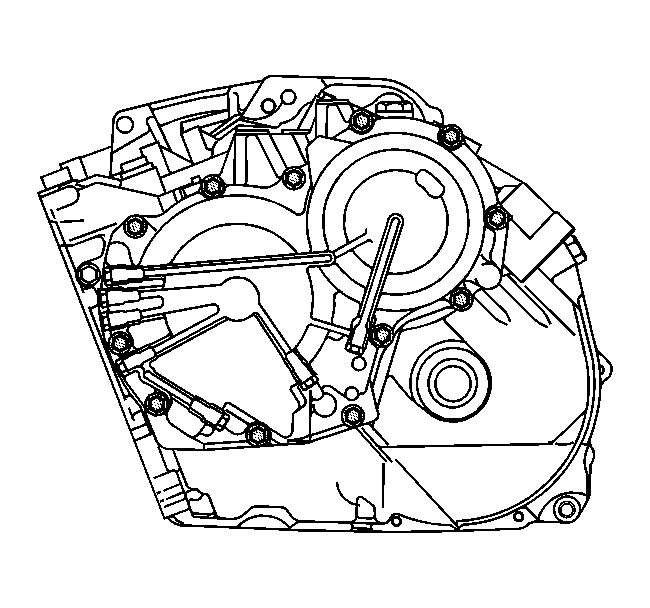

    Fig 1: View Of Transmission Case Cover Bolts/Screws
    GM749481Courtesy of GENERAL MOTORS CORP.
  1. Remove the 12 transmission case cover bolts/screws.
    2. Fig 2: Removing Transmission Case Cover & 1-2 Reverse Clutch Assembly
    GM749482Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Do not damage the transmission case cover.
  2. Remove the transmission case cover and 1-2 reverse clutch assembly (19) with a plastic hammer if needed.
    3. Fig 3: Identifying Case Fluid Passage Seals
    GM749484Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Do not damage the transmission case sealing surface.
  3. Remove the 5 case fluid passage seals (86) from the transmission case.
