4-5 Clutch Assembly Installation

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

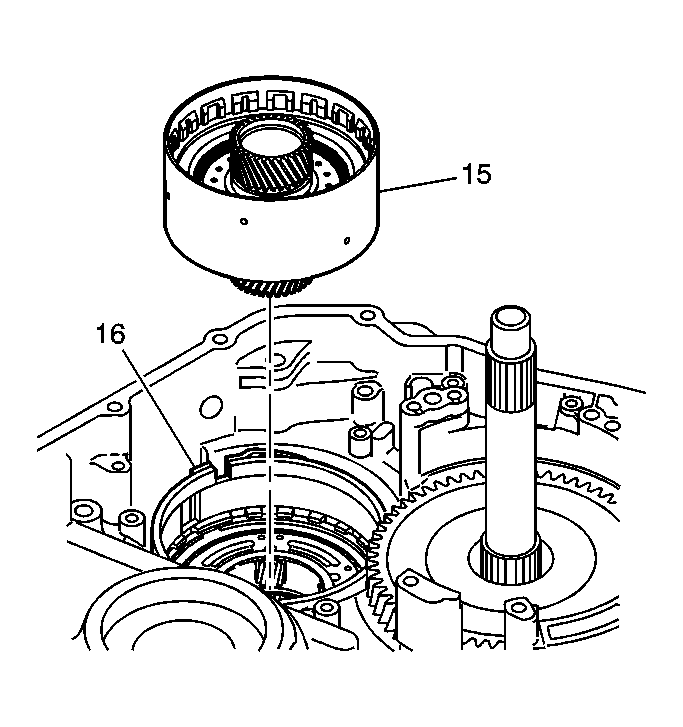

Fig 1: View Of 4-5 Clutch Assembly

Courtesy of GENERAL MOTORS CORP.

Install the 4-5 clutch assembly (15) into the transmission case assembly, making sure not to disengage the third gear band assembly (16) from its holding points. When properly installed, the 4-5 clutch assembly (15) should spin freely by hand with no drag on the third gear band assembly (16).
