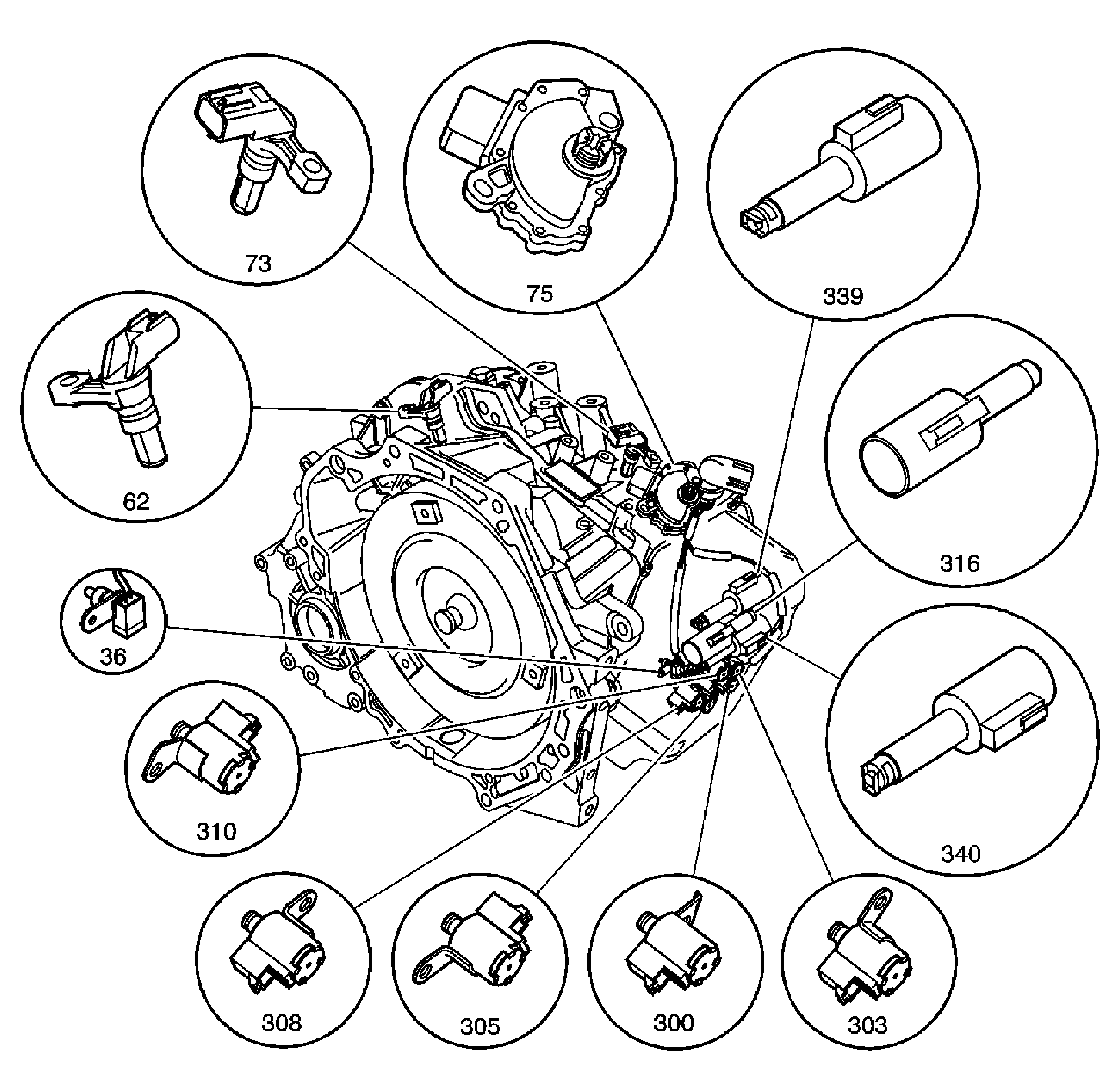

Automatic Transmission Electronic Component Views
WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 36 | Automatic Transmission Fluid Temperature Sensor |
| 62 | Automatic Transmission Output Speed Sensor |
| 73 | Automatic Transmission Input Speed Sensor |
| 75 | Park/Neutral Position Switch |
| 300 | 1-2, 2-3, Reverse, Shift Solenoid Valve Assembly (S3) |
| 303 | 3-4, 4-5 Shift Solenoid Valve Assembly (S4) |
| 305 | Reverse Shift Valve Solenoid (S5) |
| 308 | 2-3, 3-4 Shift Solenoid Valve Assembly (S2) |
| 310 | Reverse, 1st Shift Solenoid Valve Assembly (S1) |
| 316 | Line Pressure Control Solenoid Valve Assembly (SLT) |
| 339 | TCC Lock Up Pressure Control Solenoid Valve Assembly (SLU) |
| 340 | Shift Pressure Control Solenoid Valve Assembly (SLS) |
