Clutch Rotor and/or Bearing Install (V5 - Conventional Mount)

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 6083 #24 External Snap Ring Pliers. See Special Tools and Equipment .
J 8092 Driver Handle. See Special Tools and Equipment .
J 8433-1 Puller Bar. See Special Tools and Equipment .
J 8433-3 Forcing Screw. See Special Tools and Equipment .
J 9481-A Bearing Installer. See Special Tools and Equipment .
J 21352-A Support Block. See Special Tools and Equipment .
J 33017 Pulley And Bearing Assembly Installer. See Special Tools and Equipment .
J 33019 Bearing Staking Tool. See Special Tools and Equipment .
J 33023-A Puller Pilot. See Special Tools and Equipment .
J 34992 Compressor Holding Fixture. See Special Tools and Equipment .

NOTE: Do not support the rotor by resting the pulley rim on flat surface during the bearing installation or the rotor face will be bent.

Place the pulley rotor on the J 21352-A in order to fully support the rotor hub during the bearing installation.
Align the new bearing with the hub bore.
Using the J 9481-A and the J 8092 , drive the bearing into the hub.

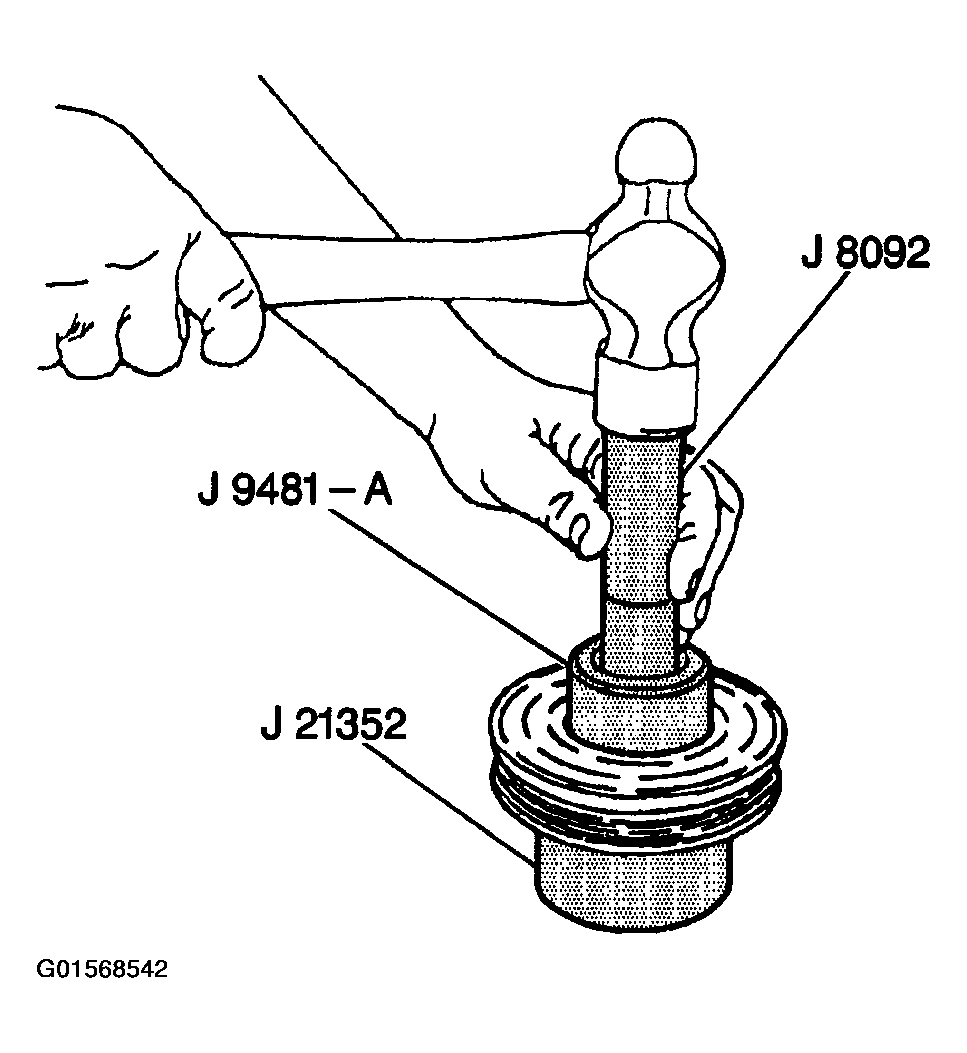

Fig 1: Installing Bearing Into Hub Using J 9481-A & J 8092
Courtesy of GENERAL MOTORS CORP.
Place the J 33019 and the staking pin in the hub bore.
Shift the rotor and bearing assembly on the J 21352-A in order to fully support the hub under the location of the staking pin.
Use a heavy-duty rubber band (1) in order to hold the stake pin in the guide of the J 33019 .

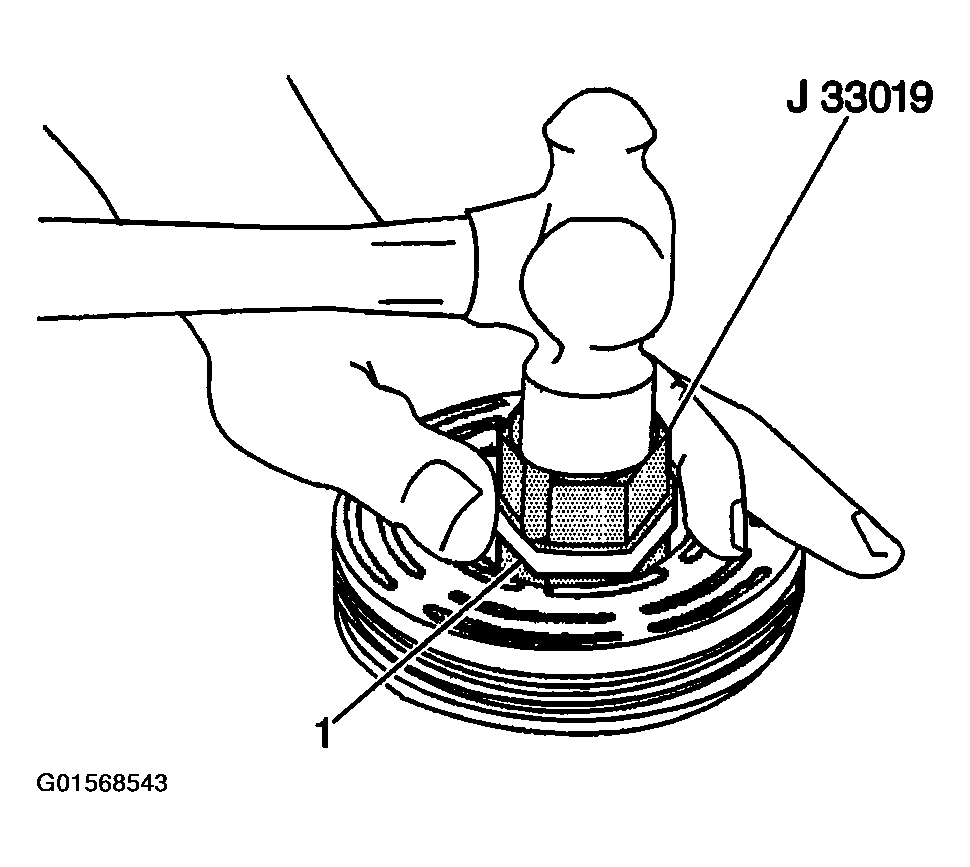

Fig 2: Holding Stake Pin In Guide Of J 33019 Using Heavy-Duty Rubber Band
Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Do not allow a metal stake to contact the outer face of the bearing in order to prevent distortion of the outer race.
Using care in order to prevent injury, strike the staking pin of the J 33019 . Properly position the stake pin in the guide after each impact on the pin.
Continue to strike the pin of the J 33019 until a stake, similar to the original stake, is formed down to, but not touching, the bearing.
Stake three places 120 degrees apart.

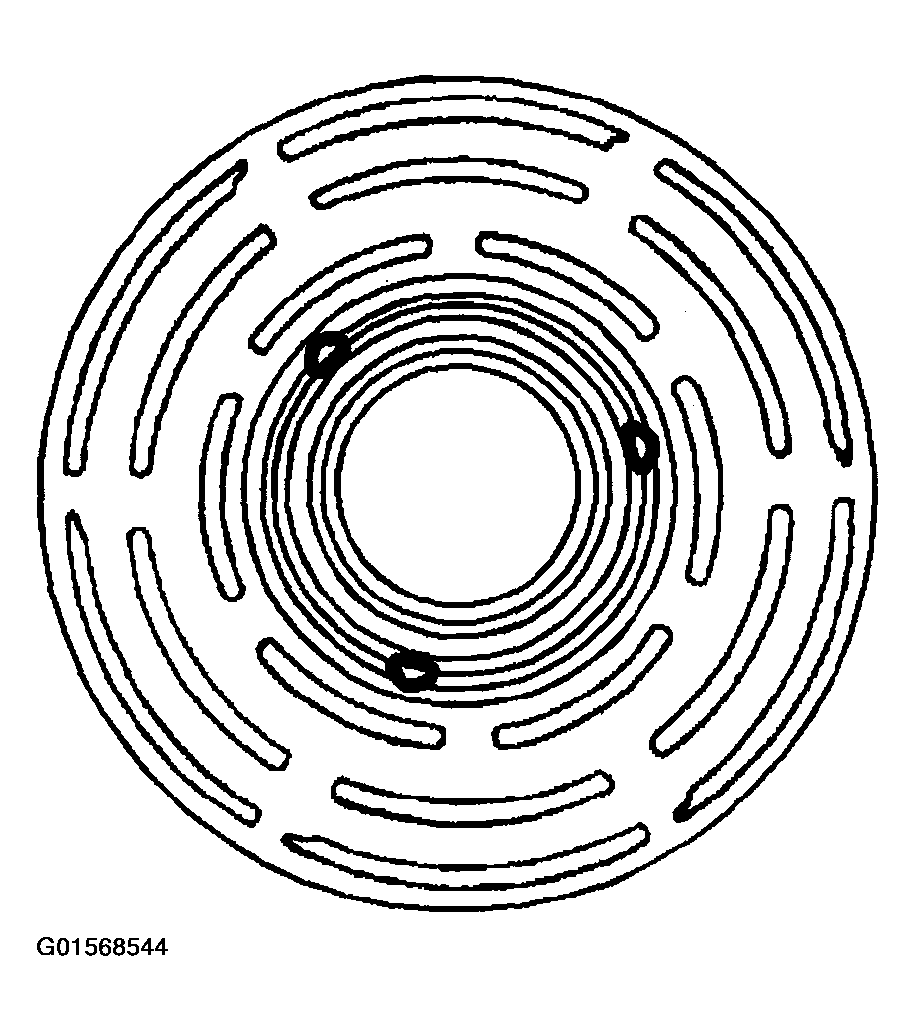

Fig 3: Identifying Places For Staking
Courtesy of GENERAL MOTORS CORP.
With the compressor mounted to the J 34992 , position the rotor and bearing assembly on the front head.
Position the J 33017 and the J 33023-A directly over the inner race of the bearing.
Position the J 8433-1 on the J 33023-A .
Assemble the two through bolts and the washers of the J 34992 through the slots of the J 8433-1 .
Thread the two through bolts into the J 34992 .
Ensure that the thread of the through bolts engages the full thickness of the J 34992 .
Tighten the J 8433-3 in the J 8433-1 in order to force the pulley rotor and bearing assembly onto the front head of the compressor.
If the J 33017 slips off direct, in-line contact with inner face of the bearing, use the following steps:
1. 16.1. Loosen the J 8433-3 .
2. 16.2. Realign the J 33017 and the J 33023-A in order to ensure that the installer clears the front head.

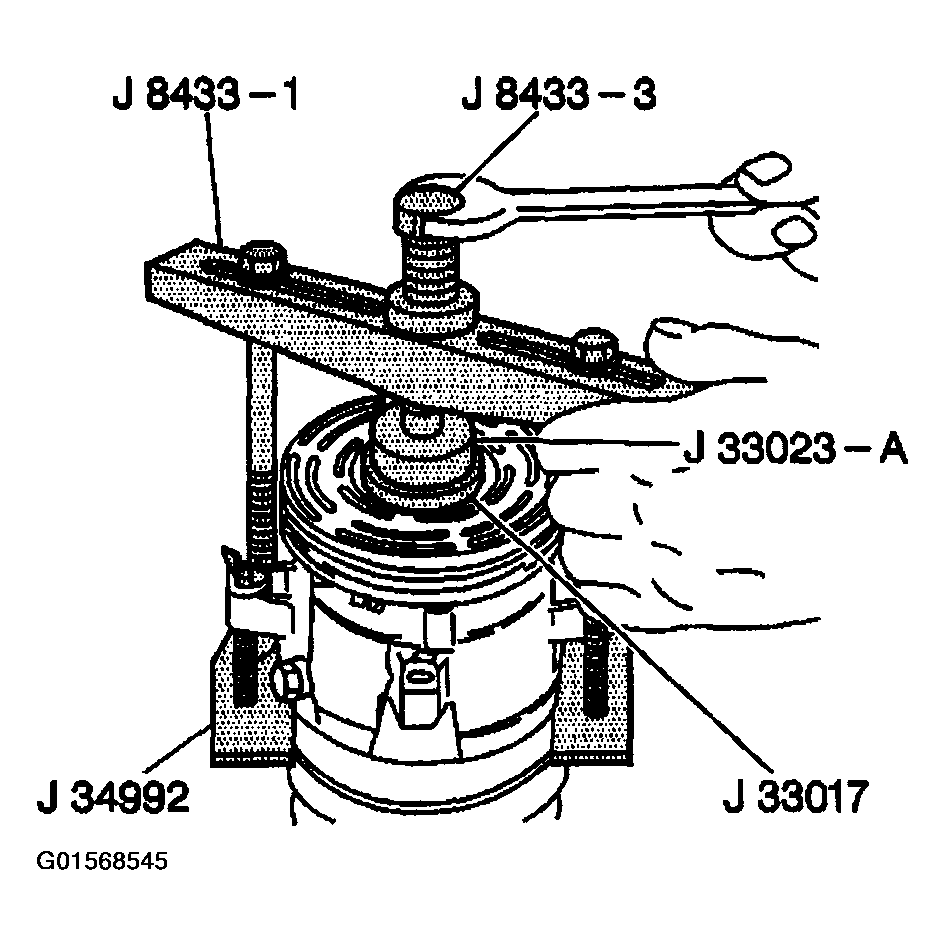

  Fig 4: Installing Pulley Rotor & Bearing Assembly Onto Front Head Of Compressor Using J 8433-3 & J 8433-1
  Courtesy of GENERAL MOTORS CORP.
Install the rotor and bearing assembly retainer ring using the J 6083 .
Install the clutch plate and hub assembly. Refer to COMPRESSOR CLUTCH PLATE AND HUB ASSEMBLY REMOVAL (V5 - DIRECT MOUNT) or COMPRESSOR CLUTCH PLATE AND HUB ASSEMBLY REMOVAL (V5 - CONVENTIONAL MOUNT) .

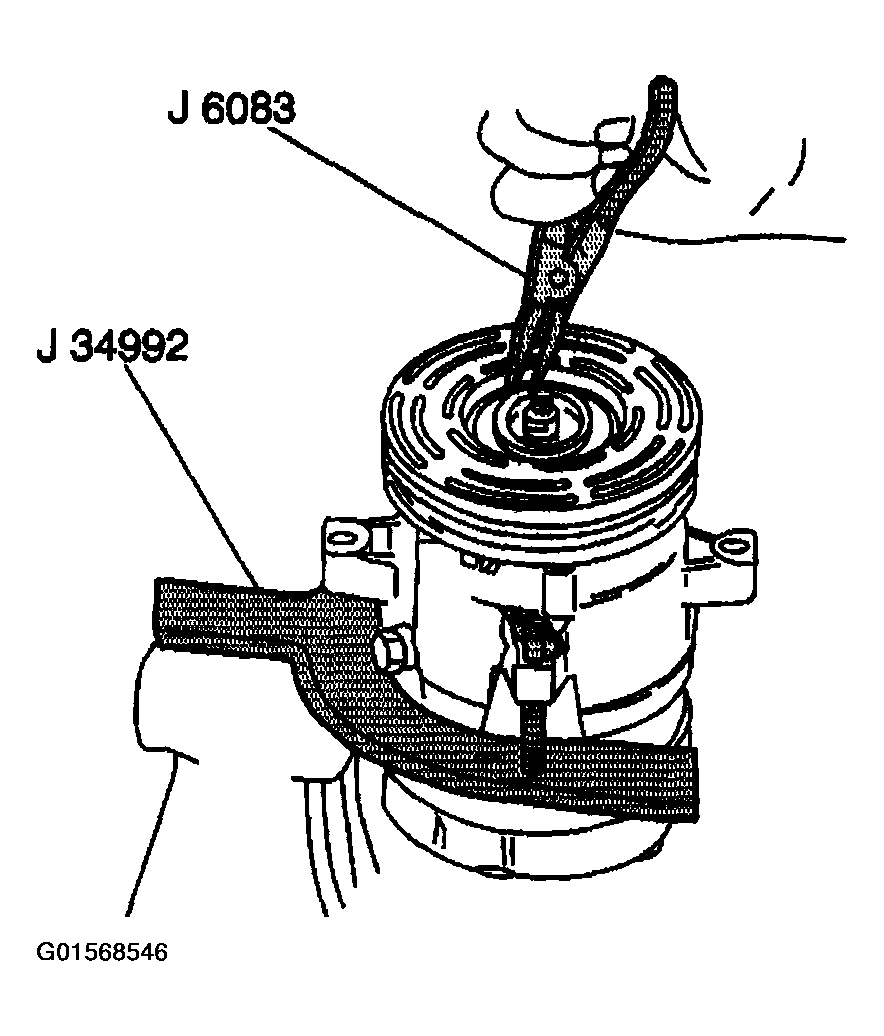

Fig 5: Installing Rotor & Bearing Assembly Retainer Ring Using J 6083
Courtesy of GENERAL MOTORS CORP.
