Compressor Clutch Plate and Hub Assembly Removal (V5 - Direct Mount)

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 33027-A Clutch Hub Holding Tool. See Special Tools and Equipment .
J 33013-B Hub and Drive Plate Remover/Installer. See Special Tools and Equipment .
J 41790 Compressor Holding Fixture. See Special Tools and Equipment .

Clamp the J 41790 in a vise and attach the A/C compressor to the holding fixture.
Hold the clutch hub and drive plate assembly (2) in place using the J 33027-A .
Remove the A/C compressor shaft nut with a 13 mm socket (1).

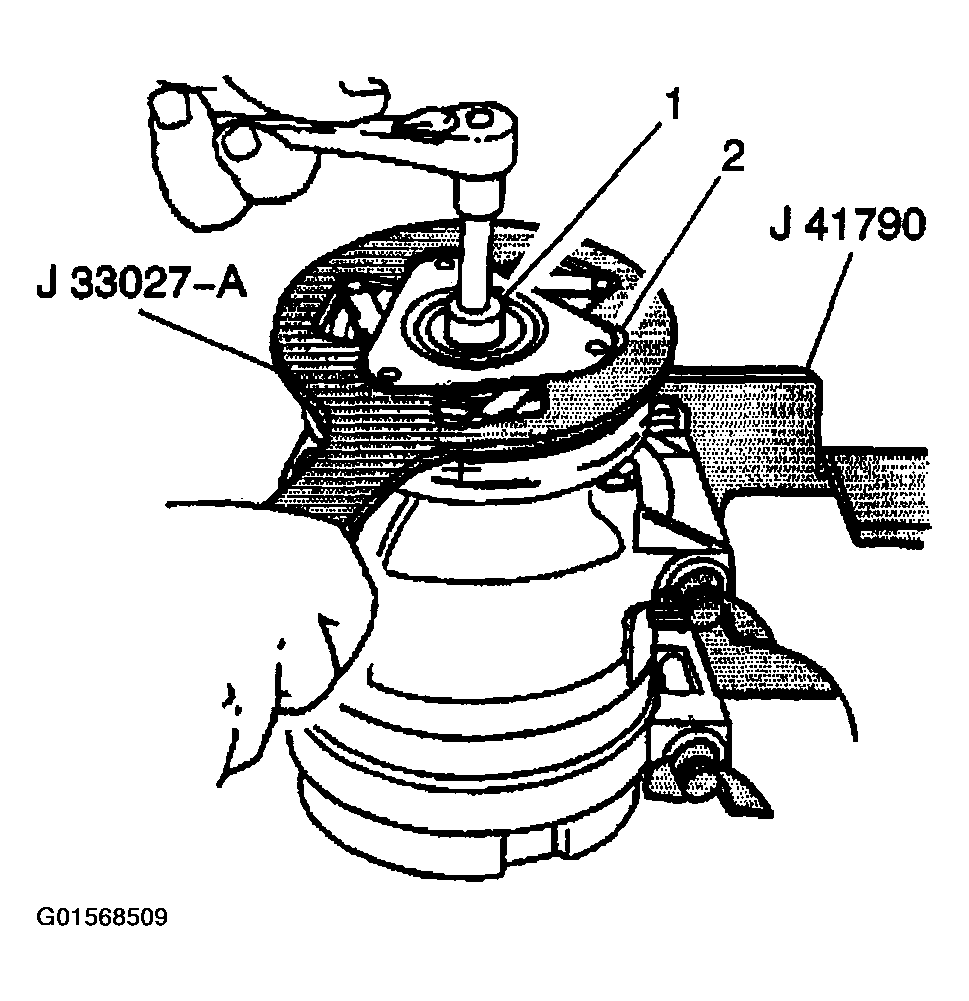

Fig 1: Removing A/C Compressor Shaft Nut (V5 - Direct Mount)
Courtesy of GENERAL MOTORS CORP.
Thread the clutch plate and hub remover and installer tool hub and drive plate installer into the hub.
Remove the hub and drive plate assembly (1) by turning the center screw into the body of the hub and drive plate installer and against the A/C compressor shaft.

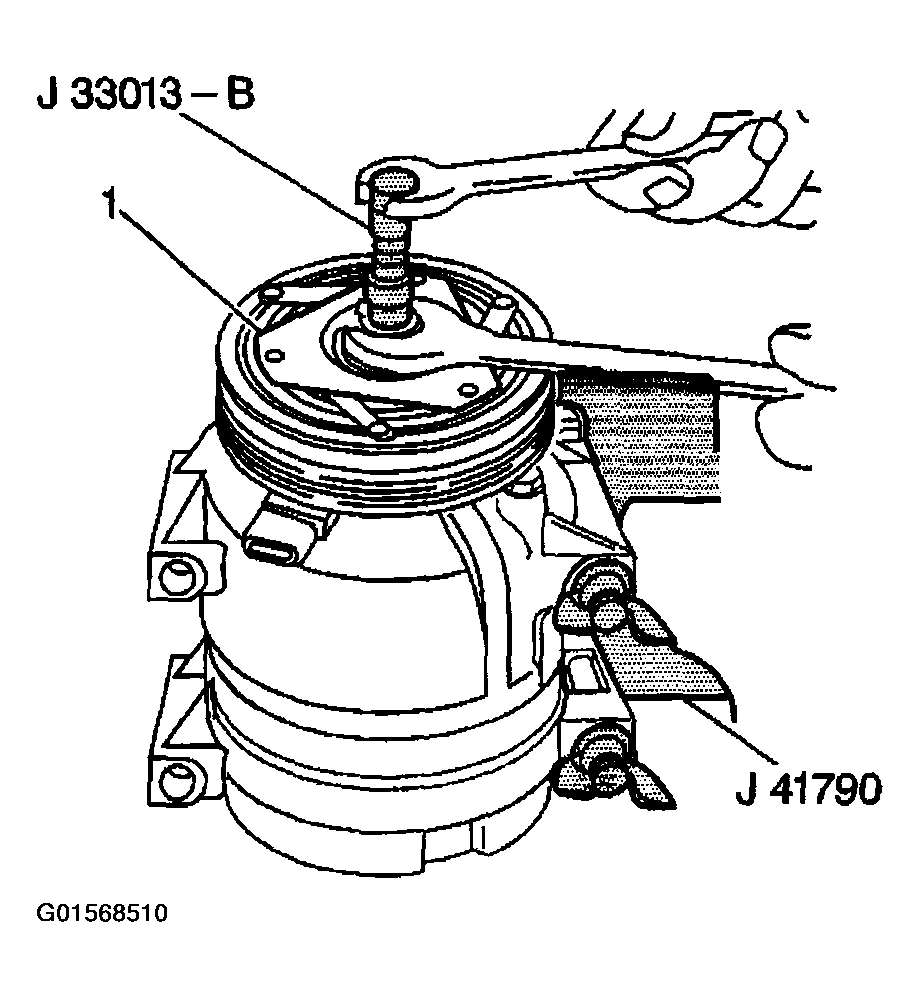

Fig 2: Removing Hub & Drive Plate Assembly
Courtesy of GENERAL MOTORS CORP.
Remove the shaft key and retain for reassembly.
