Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the carpet to the floor panel.
  2. Feed the front edge of the carpet underneath the instrument panel.
  3. Align the holes in the carpet to the seat studs on the floor panel.
  4. Position the rear carpet over the edge of the front carpet.
  5. Install the floor console bracket. Refer to BRACKET REPLACEMENT-CONSOLE FLOOR in Instrument Panel, Gages and Console.
  6. Install the floor console Refer to CONSOLE REPLACEMENT in Instrument Panel, Gages and Console.
  7. Install the center pillar trim panels. Refer to GARNISH MOLDING REPLACEMENT-Center Pillar .

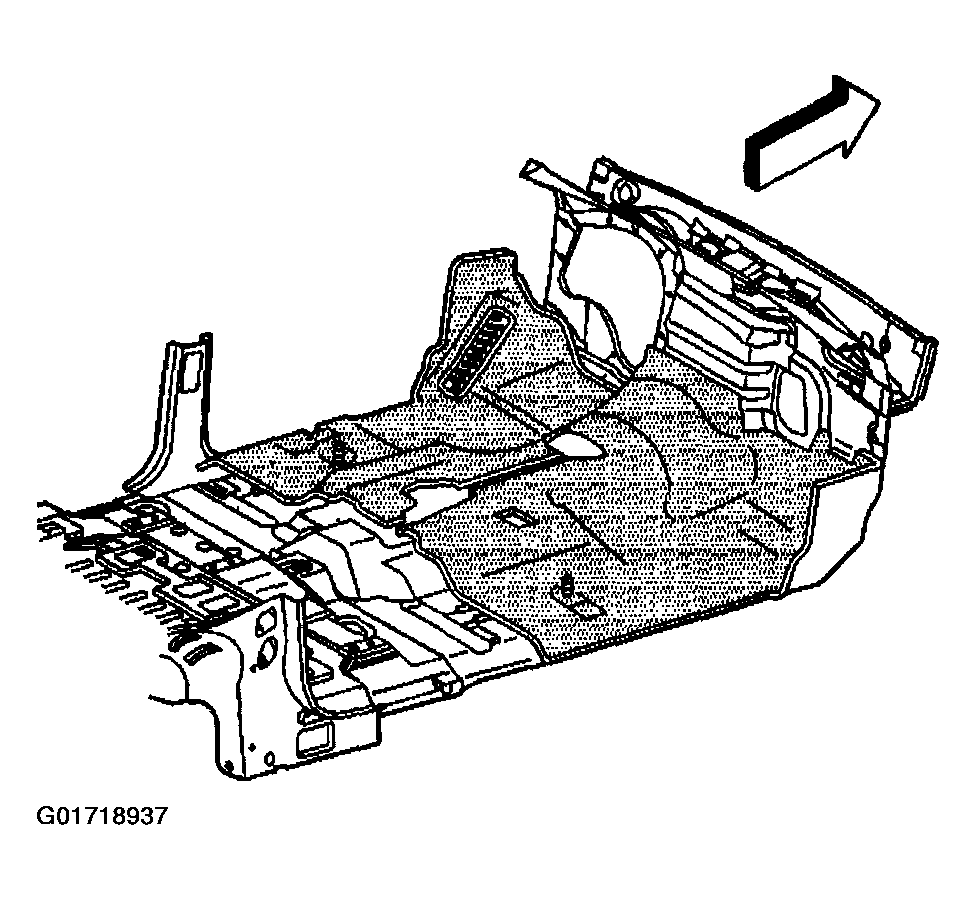

    Fig 1: Identifying Front Carpet
    G01718937Courtesy of GENERAL MOTORS CORP.
  8. Install the front door sill plates. Refer to DOOR SILL PLATE REPLACEMENT-Front .
  9. Install the front bucket seats. Refer to SEAT REPLACEMENT - FRONT BUCKET in Seats.
  10. Enable the SIR. Refer to ACTIVATING SYSTEM In SIR.
