Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Envoy XL and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil level indicator. Refer to OIL LEVEL INDICATOR AND TUBE REPLACEMENT   .
  2. Remove the coolant air bleed pipe. Refer to COOLANT AIR BLEED PIPE ASSEMBLY REPLACEMENT (5.3L ENGINE)  in Engine Cooling.
  3. Remove the right exhaust manifold. Refer to EXHAUST MANIFOLD REPLACEMENT - RIGHT (5.3L ENGINE)  in Engine Exhaust.
  4. Remove the pushrods. Refer to VALVE ROCKER ARM AND PUSH ROD REPLACEMENT   .
  5. If equipped, remove the auxiliary air conditioning (A/C) bracket nut (2).

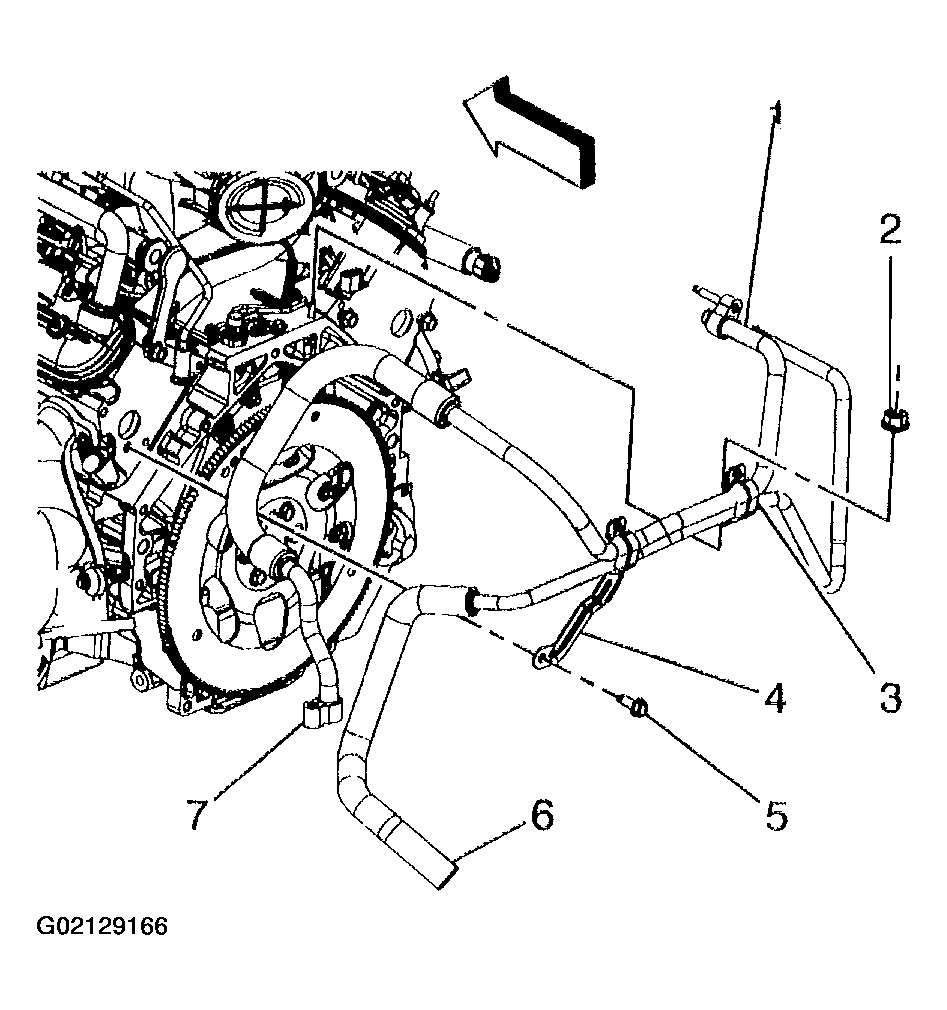

    Fig 1: Removing Auxiliary Air Conditioning (A/C) Bracket Nut
    G02129166Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The cylinder head bolts are NOT reusable.
  6. Remove and discard the cylinder head bolts (1, 2, 3).

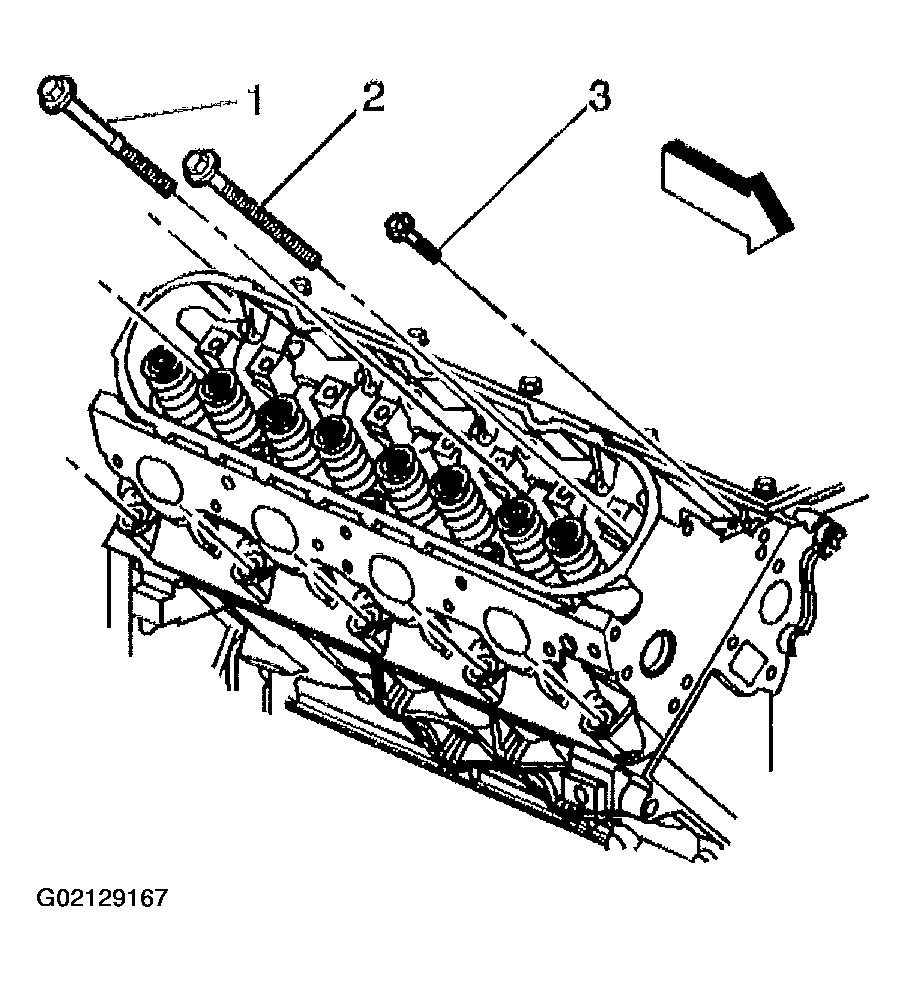

    Fig 2: Removing Cylinder Head Bolts
    G02129167Courtesy of GENERAL MOTORS CORP.
    NOTE: After removal, place the cylinder head on two wood blocks to prevent damage.
  7. Remove the cylinder head.

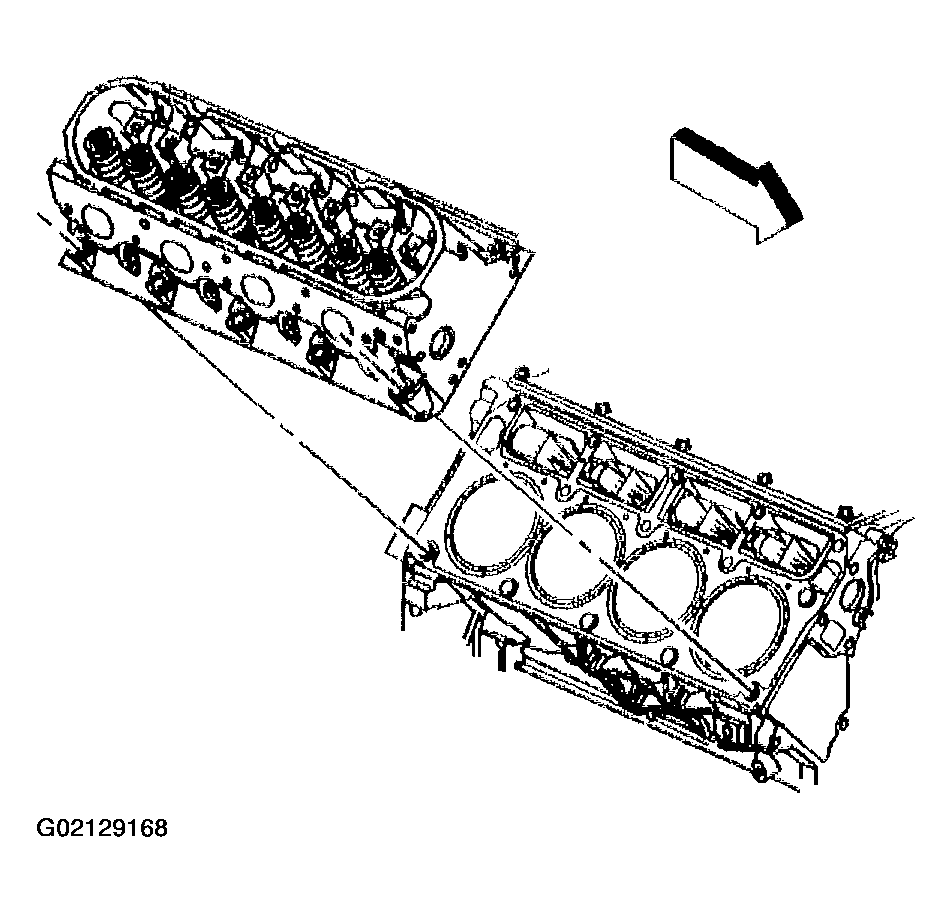

    Fig 3: Removing Cylinder Head
    G02129168Courtesy of GENERAL MOTORS CORP.
  8. Remove and discard the cylinder head gasket.
  9. Clean and inspect the cylinder head. Refer to CYLINDER HEAD CLEANING AND INSPECTION   .

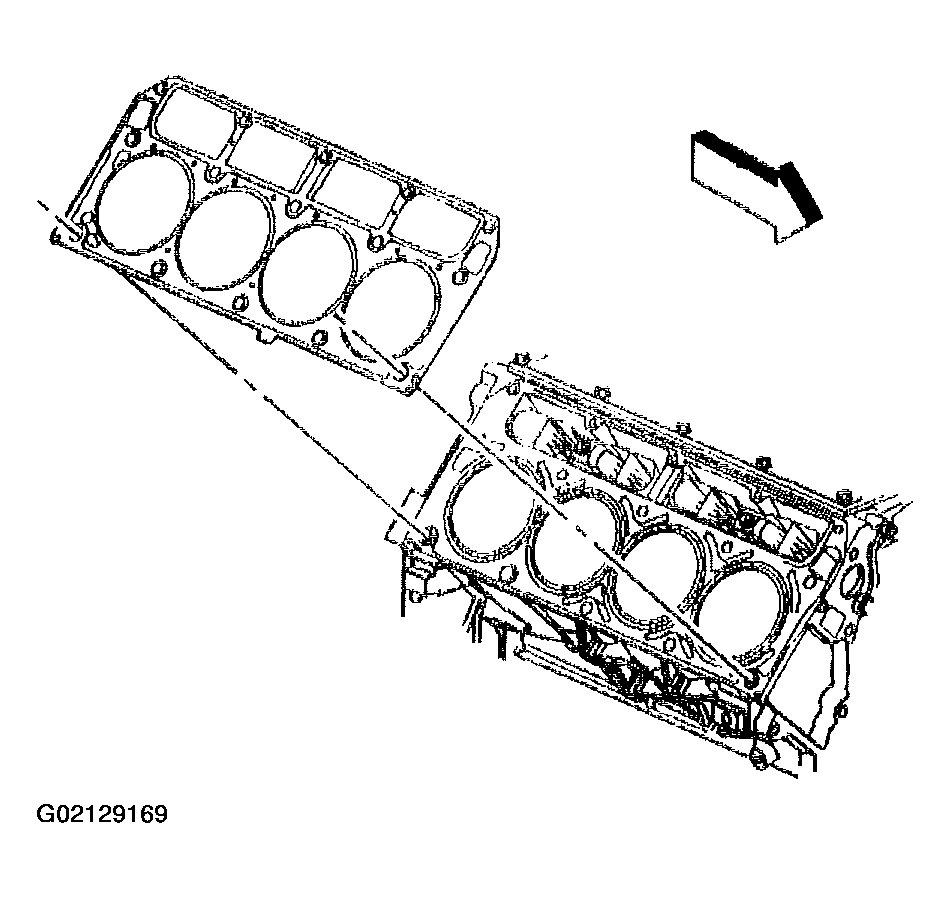

    Fig 4: Removing Cylinder Head Gasket
    G02129169Courtesy of GENERAL MOTORS CORP.
