Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the steering knuckle to the lower control arm.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the lower ball joint retaining nut.

    Tighten

    Tighten the lower ball joint retaining nut to 110 N.m (81 lb ft).

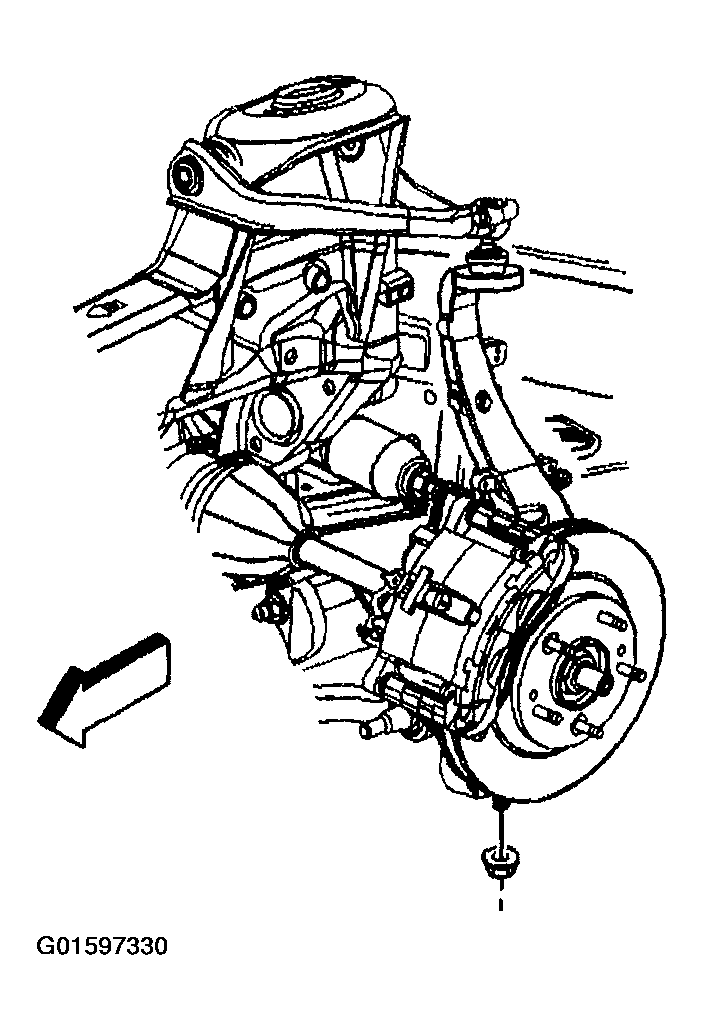

    Fig 1: Installing Steering Knuckle To Lower Control Arm (4WD)
    G01597330Courtesy of GENERAL MOTORS CORP.
  3. Connect the upper control arm to the steering knuckle.
  4. Install upper control arm pinch bolt and nut.

    Tighten

    Tighten the upper control arm pinch bolt to 40 N.m (30 lb ft).

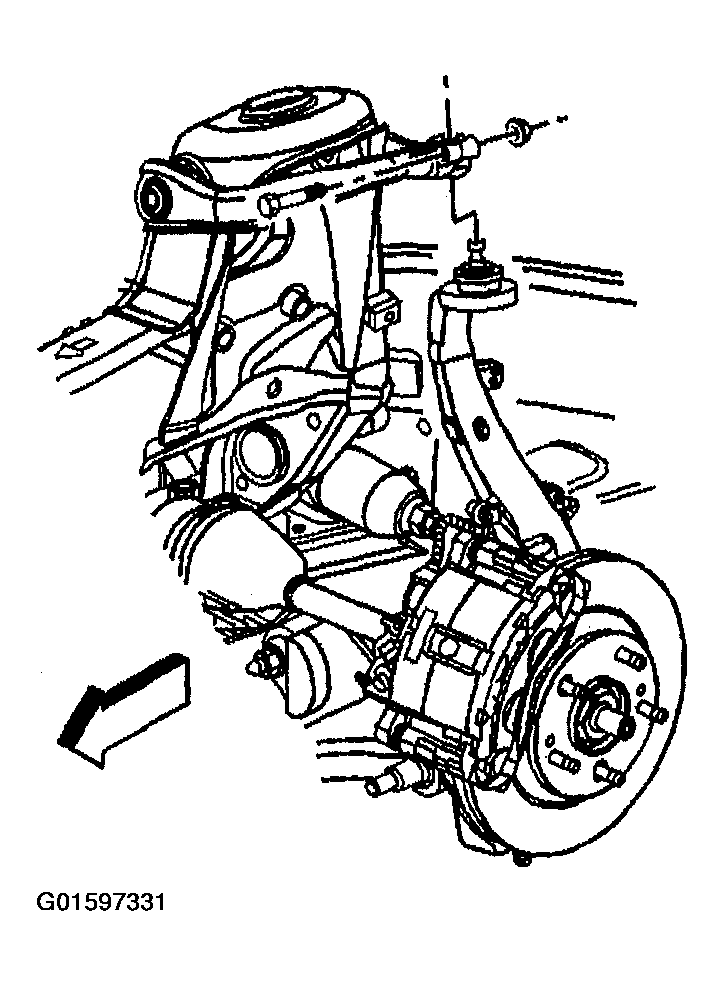

    Fig 2: Installing Upper Control Arm Pinch Bolt And Nut (4WD)
    G01597331Courtesy of GENERAL MOTORS CORP.
  5. Install the brake hose bracket to the steering knuckle.
  6. Install the brake hose bracket retaining bolts.

    Tighten

    Tighten the brake hose bracket retaining bolts to 10 N.m (89 lb in).

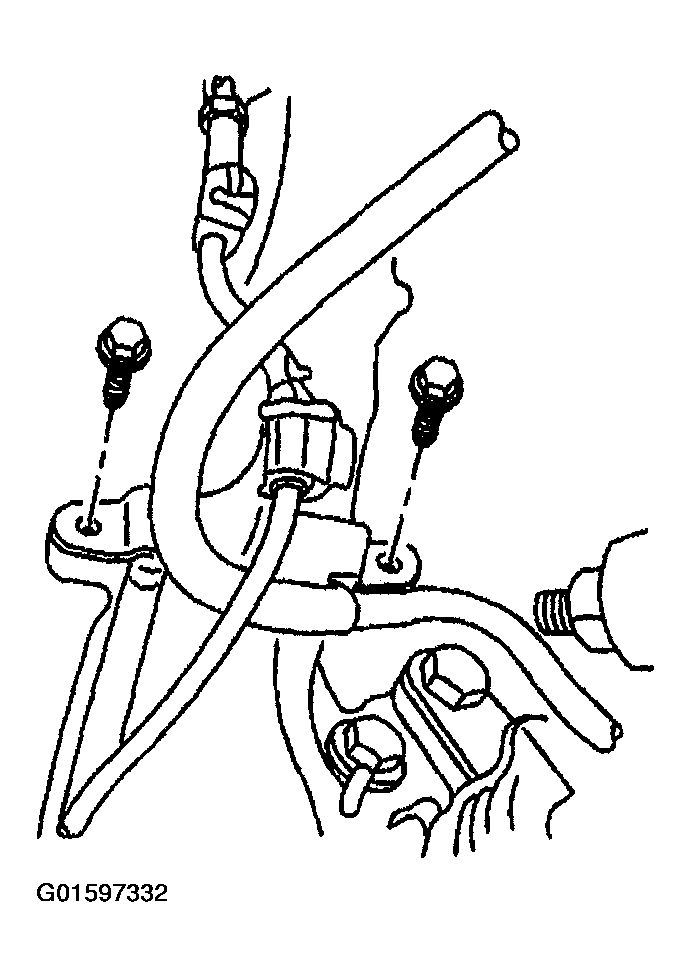

    Fig 3: Installing Brake Hose Bracket Retaining Bolt (4WD)
    G01597332Courtesy of GENERAL MOTORS CORP.
  7. Install the outer tie rod to the steering knuckle.
  8. Install the new outer tie rod retaining nut.

    Tighten

    Tighten the outer tie rod retaining nut to 45 N.m (33 lb ft).

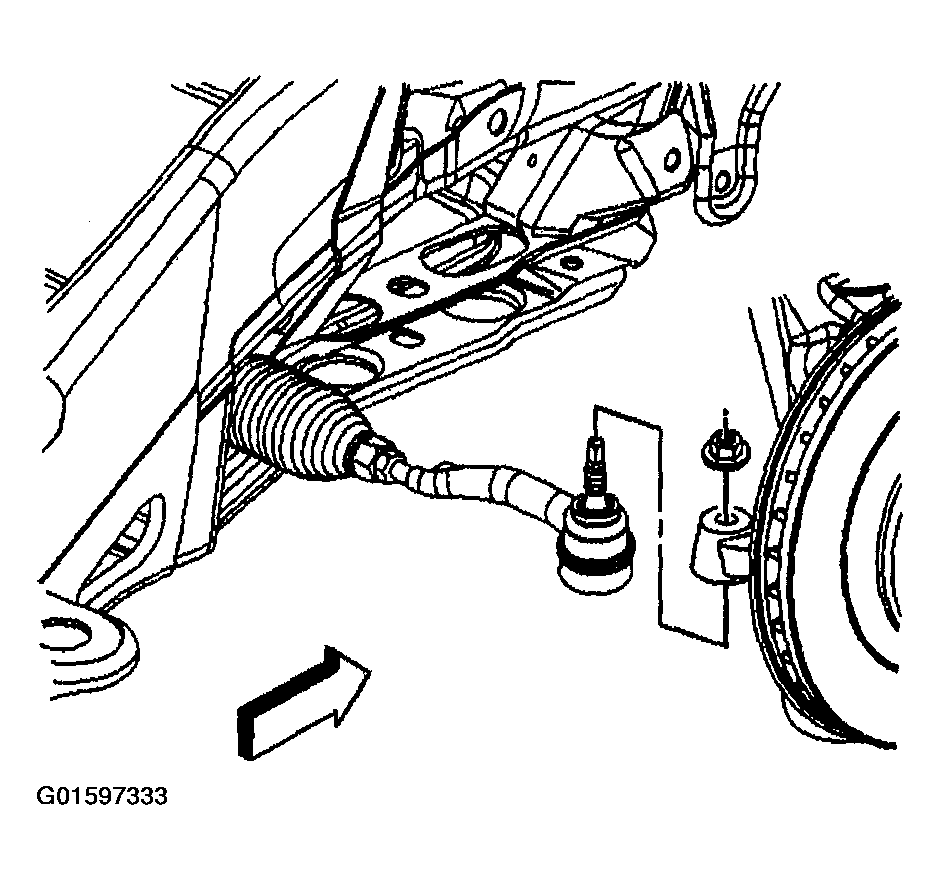

    Fig 4: Installing Outer Tie Rod Retaining Nut (4WD)
    G01597333Courtesy of GENERAL MOTORS CORP.
  9. Install the wheel hub and bearing. Refer to WHEEL HUB, BEARING, AND SEAL REPLACEMENT (RWD)   or WHEEL HUB, BEARING, AND SEAL REPLACEMENT (4WD)   .
  10. Install the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION  in Tires and Wheels.
  11. Lower the vehicle.
  12. Install the drive axle nut.

    Tighten

    Tighten the drive axle nut to 140 N.m (103 lb ft).

  13. Adjust the front toe. Refer to FRONT TOE ADJUSTMENT  in Wheel Alignment.

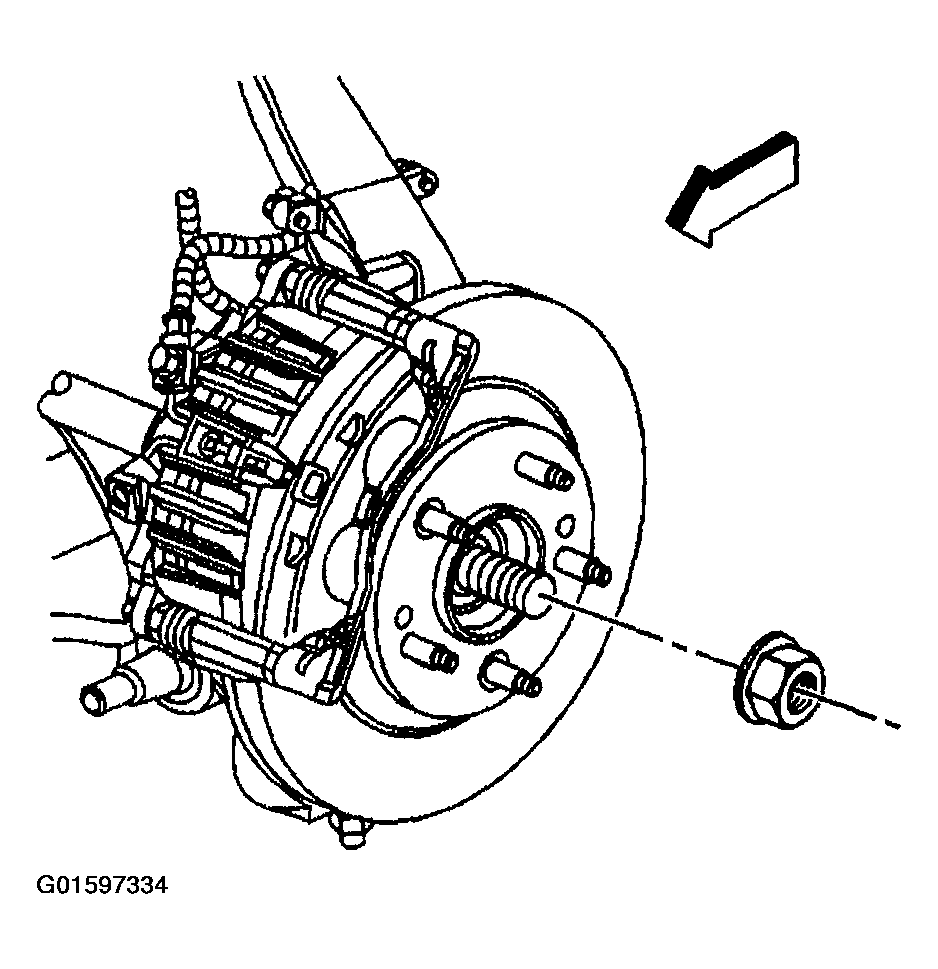

    Fig 5: Installing Drive Axle Nut (4WD)
    G01597334Courtesy of GENERAL MOTORS CORP.
