Front Toe Adjustment

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the jam nut on the outer tie rod (2).
    NOTE: Care must be taken that the boots are not twisted when rotating the inner tie rods, or damage to the boots may result.
  2. Rotate the inner tie rod (1) to the required toe specification setting. Refer to Wheel Alignment  SPECIFICATIONS   .
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Tighten the jam nut on the outer tie rod.

    Tighten

    Tighten the outer tie rod jam nut to 75 N.m (55 lb ft).

  4. Check the toe setting after tightening.
  5. Re-adjust the toe setting if necessary.

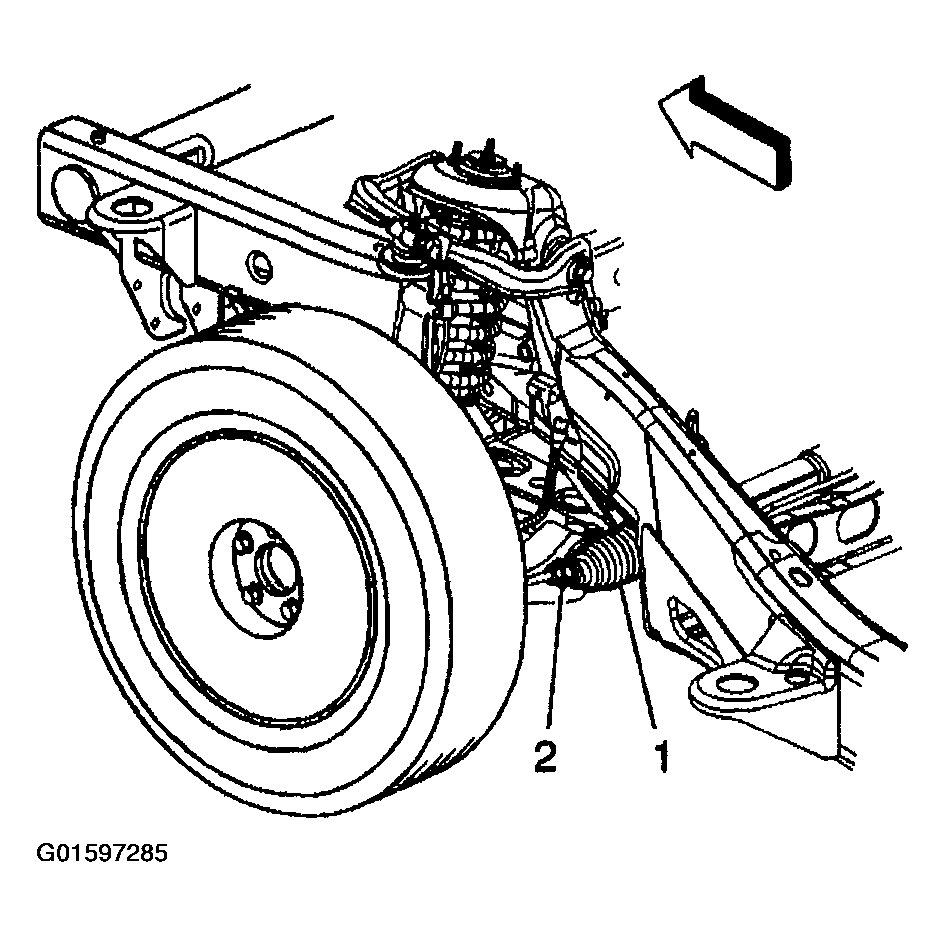

    Fig 1: Loosening Jam Nut On Outer Tie Rod
    G01597285Courtesy of GENERAL MOTORS CORP.
