Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the steering wheel to the steering wheel shaft.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the retaining nut that secures the steering wheel to the steering wheel shaft.

    Tighten

    Tighten the retaining nut to 41 N.m (30 lb ft).

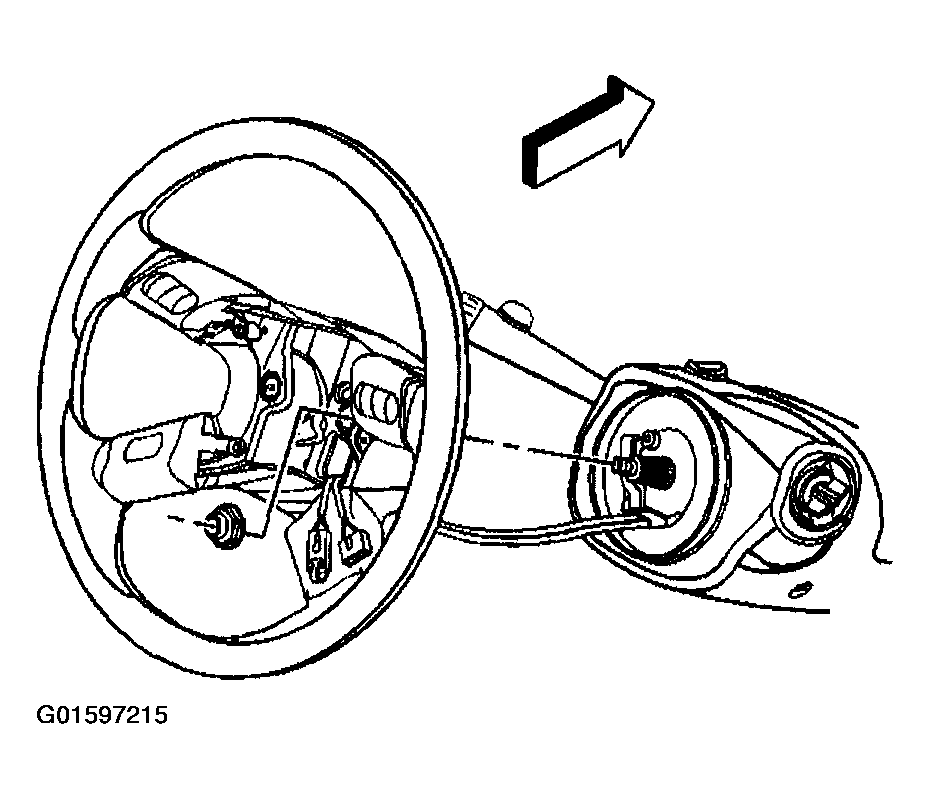

    Fig 1: Installing Steering Wheel And Shaft Retaining Nut
    G01597215Courtesy of GENERAL MOTORS CORP.
  3. Connect the steering wheel electrical connector.
  4. Install the horn plunger to the steering column.
  5. Install the inflator module. Refer to REMOVAL & INSTALLATION (DRIVER-SIDE) in Air Bag Restraint Systems.
  6. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in Air Bag Restraint Systems.

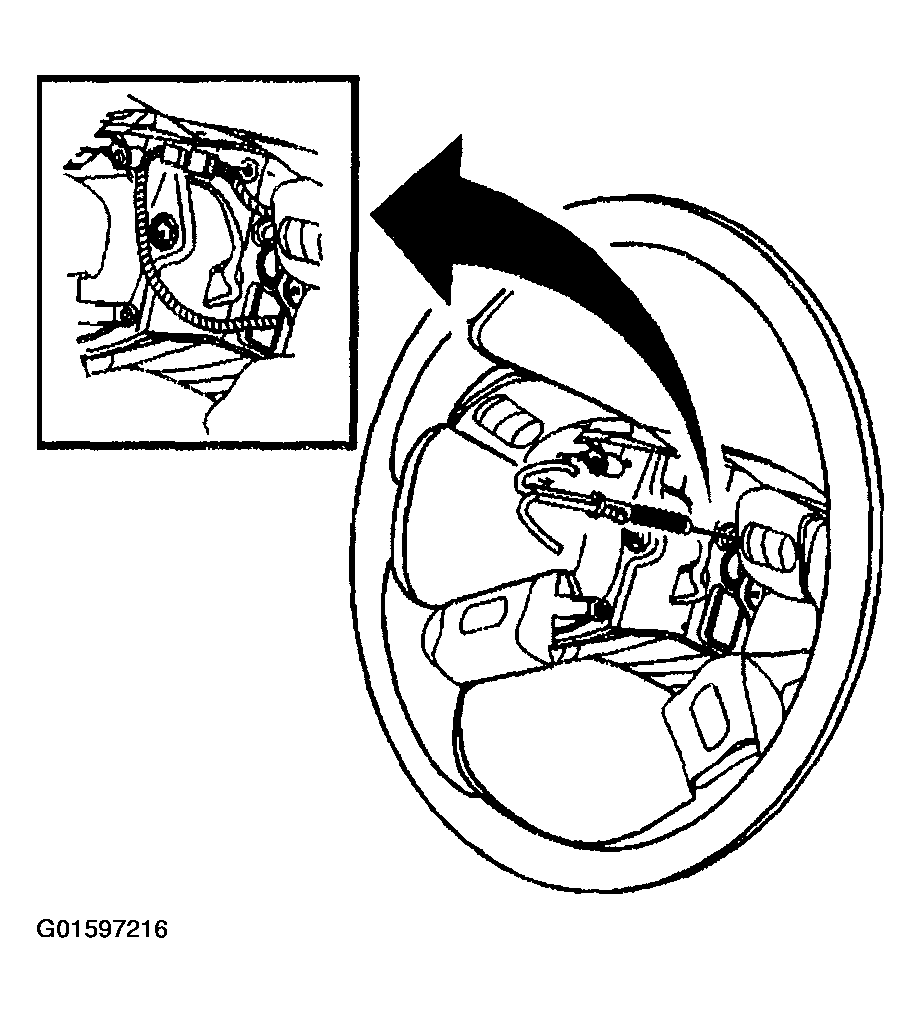

    Fig 2: Connecting Steering Wheel Electrical Connector
    G01597216Courtesy of GENERAL MOTORS CORP.
