Removal & Installation (Driver-side)
WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
- Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See ZONE 3 under DISABLING & ACTIVATING AIR BAG SYSTEM.

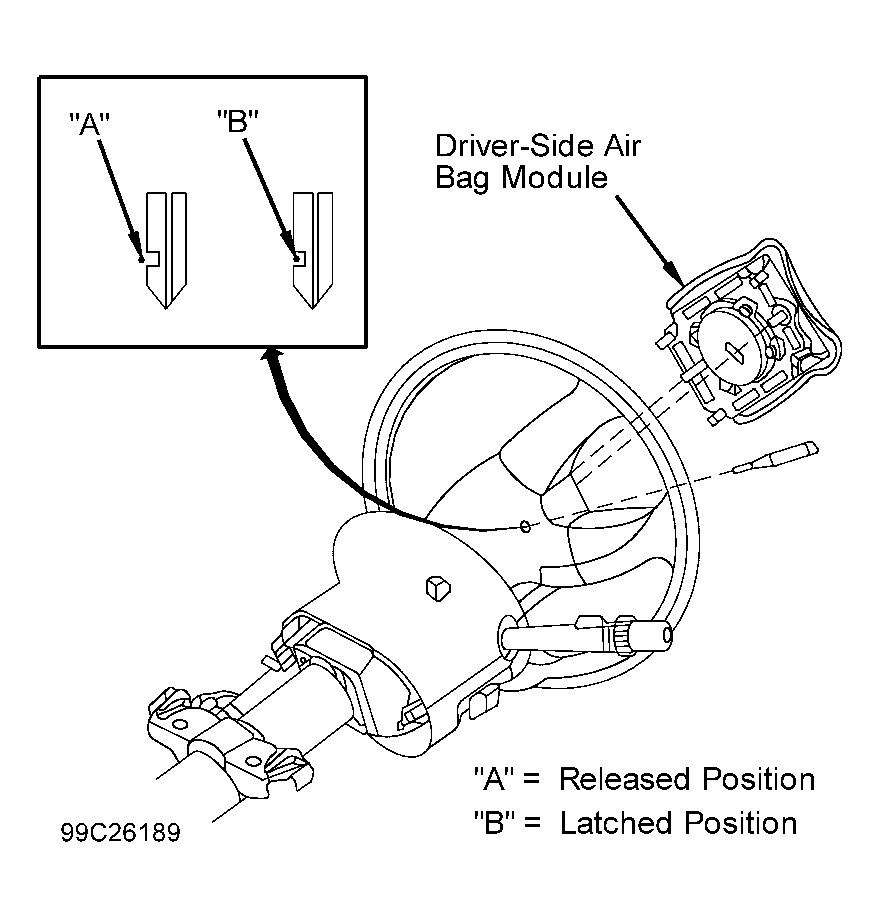

- Insert flat-blade screwdriver into holes on each side of steering wheel to release leaf springs from air bag module retaining pins. See Figure. Turn steering wheel 180 degrees to access remaining holes. Pull air bag module away from steering wheel.
- Disconnect air bag wire harness from clips on air bag module and steering wheel. Remove Connector Position Assurance (CPA) clips and disconnect electrical connectors from driver-side air bag module. Remove driver-side air bag module.
- To install, reverse removal procedure. Ensure driver-side air bag module leaf springs engage with pins on driver-side air bag module. Activate air bag system. See ZONE 3 under DISABLING & ACTIVATING AIR BAG SYSTEM.
