Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

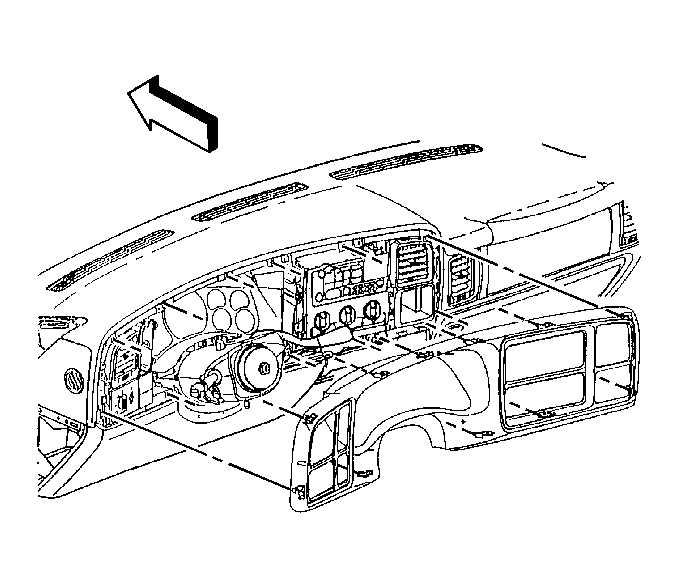

    Fig 1: Instrument Panel Bezel Trim Piece
    GM348730Courtesy of GENERAL MOTORS CORP.
  1. Remove the instrument panel bezel trim piece. Refer to BEZEL REPLACEMENT - IP CLUSTER in Instrument Panel, Gages, and Console.
    2. Fig 2: Transfer Case Driver Control Switch
    GM396838Courtesy of GENERAL MOTORS CORP.
  2. Pull the tabs on the side of the transfer case driver control switch out.
  3. Pull the transfer case driver control switch straight out from the panel.
