Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the driver seat inflatable restraint, if removed. Refer to REMOVAL & INSTALLATION (SIDE IMPACT AIR BAG) .
  2. Install the seat back assembly (1) to the seat adjuster (10).
    NOTE: Refer to FASTENER NOTICE .
  3. Install the bolts (3) to the seat back assembly (1).

    Tighten

    Tighten the bolts (3) to 43 N.m (32 lb ft).

  4. Install the seat adjuster track covers (7). Refer to SEAT ADJUSTER TRACK COVER REPLACEMENT - FRONT (OUTBOARD)  or SEAT ADJUSTER TRACK COVER REPLACEMENT - FRONT (INBOARD)  .
  5. Install the front seat head restraint. Refer to HEAD RESTRAINT REPLACEMENT - FRONT SEAT  .
  6. Install the front seat assembly. Refer to SEAT REPLACEMENT - FRONT BUCKET  .

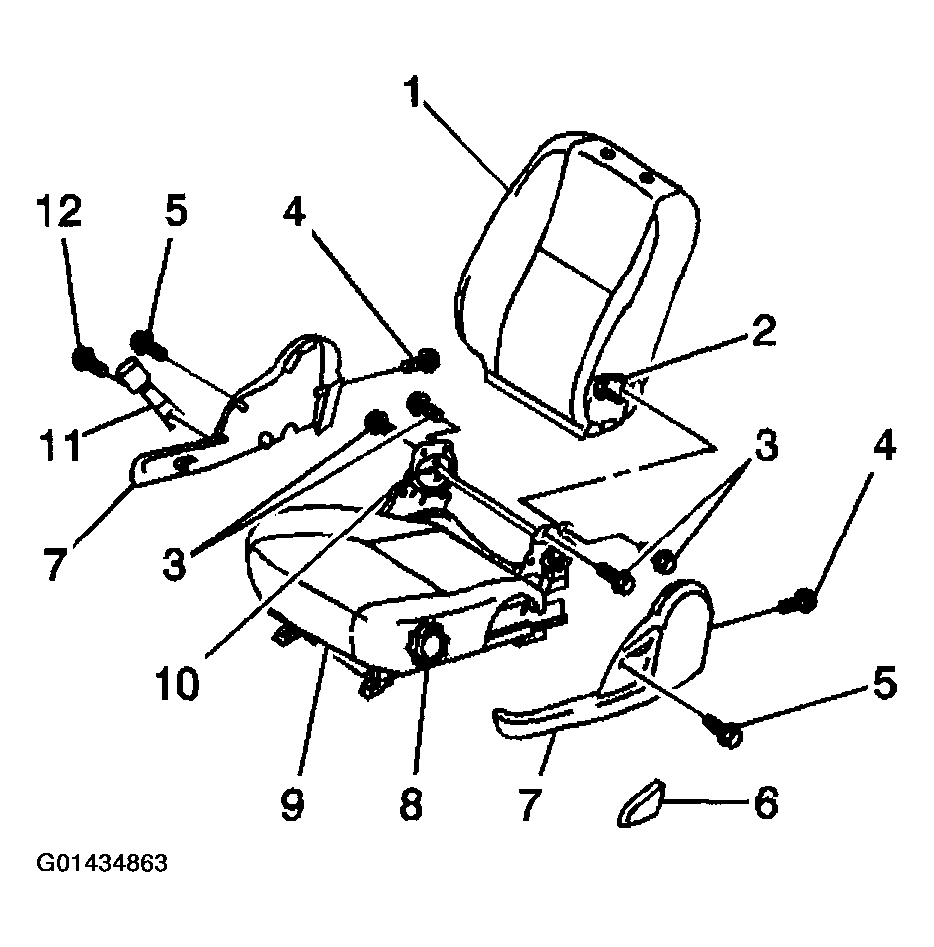

    Fig 1: Installing Seat Back Assembly To Seat Adjuster - Front (Driver Side)
    G01434863Courtesy of GENERAL MOTORS CORP.
