Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat assembly. Refer to SEAT REPLACEMENT - FRONT BUCKET  .
  2. Remove the front seat back cushion cover (1) and pad (2). Refer to SEAT BACK COVER AND PAD REPLACEMENT - FRONT  .
  3. Remove the driver seat inflatable restraint, if necessary. Refer to REMOVAL & INSTALLATION (SIDE IMPACT AIR BAG) .
  4. Remove the passenger seat inflatable restraint, if necessary. Refer to REMOVAL & INSTALLATION (SIDE IMPACT AIR BAG) .
  5. Remove seat back frame (3) from vehicle.

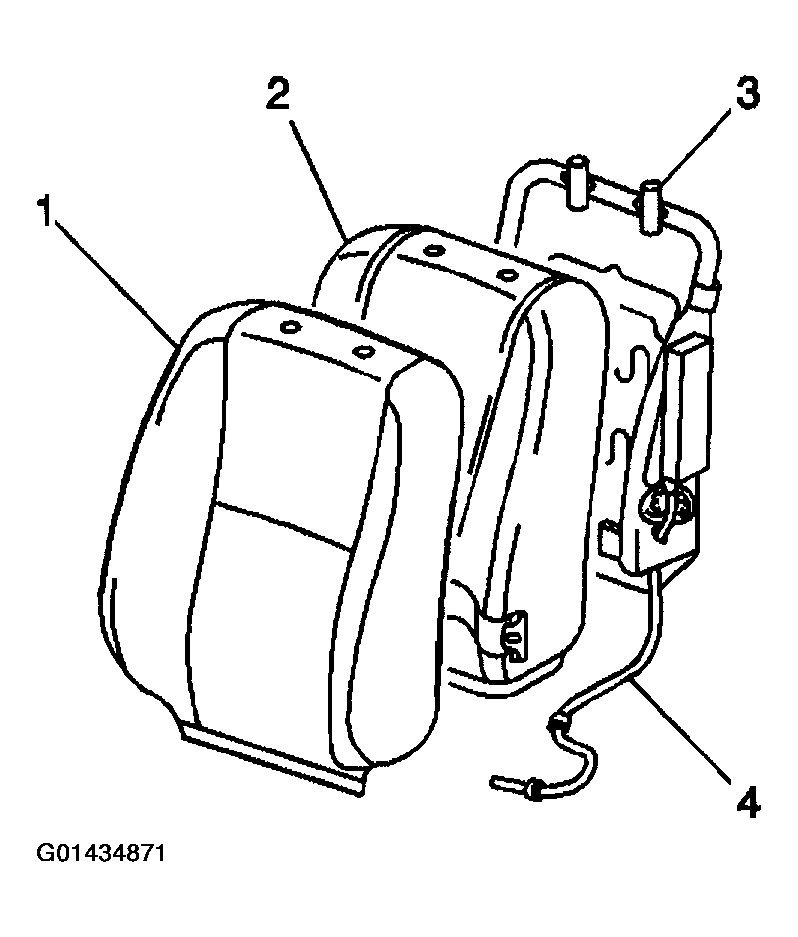

    Fig 1: Removing Front Seat Back Frame From Vehicle
    G01434871Courtesy of GENERAL MOTORS CORP.
