Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the driver side inflatable restraint, if removed. Refer to REMOVAL & INSTALLATION (SIDE IMPACT AIR BAG) .
  2. Install the passenger side inflatable restraint, if removed. Refer to REMOVAL & INSTALLATION (SIDE IMPACT AIR BAG) .
  3. Install the front seat back cushion cover (1) and pad (2) to seat back frame (3). Refer to SEAT BACK COVER AND PAD REPLACEMENT - FRONT  .
  4. Install the front seat assembly. Refer to SEAT REPLACEMENT - FRONT BUCKET  .

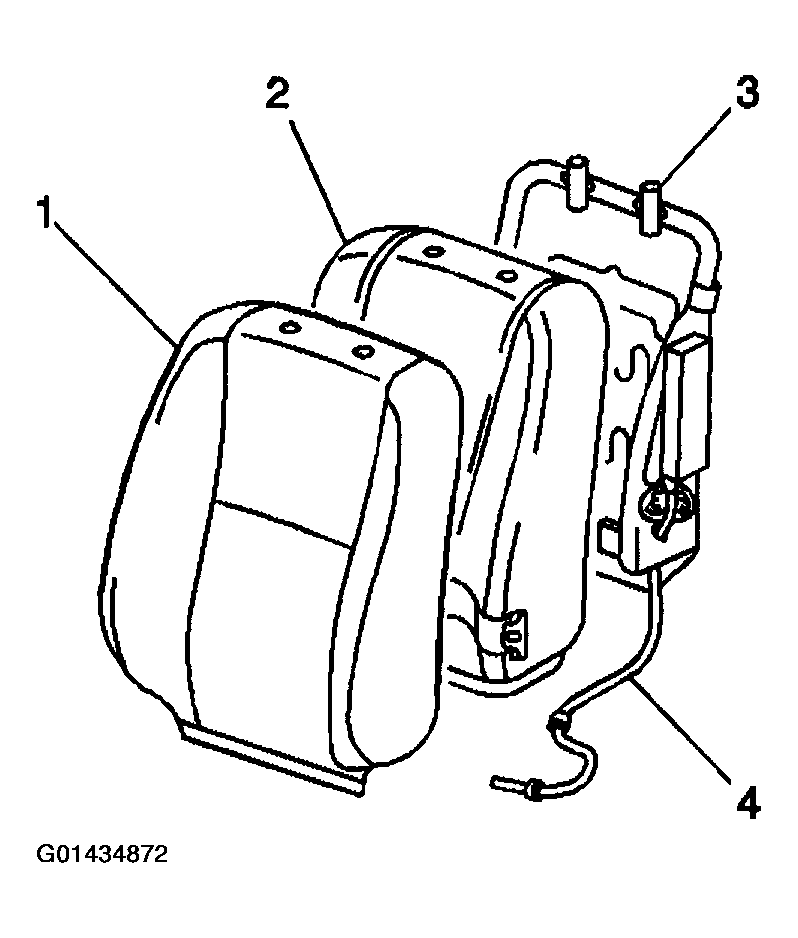

    Fig 1: Installing Front Seat Back Cushion Cover & Pad To Seat Back Frame
    G01434872Courtesy of GENERAL MOTORS CORP.
