Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. If you are replacing the steering wheel (3), copy the match marks from the old steering wheel to the new steering wheel.

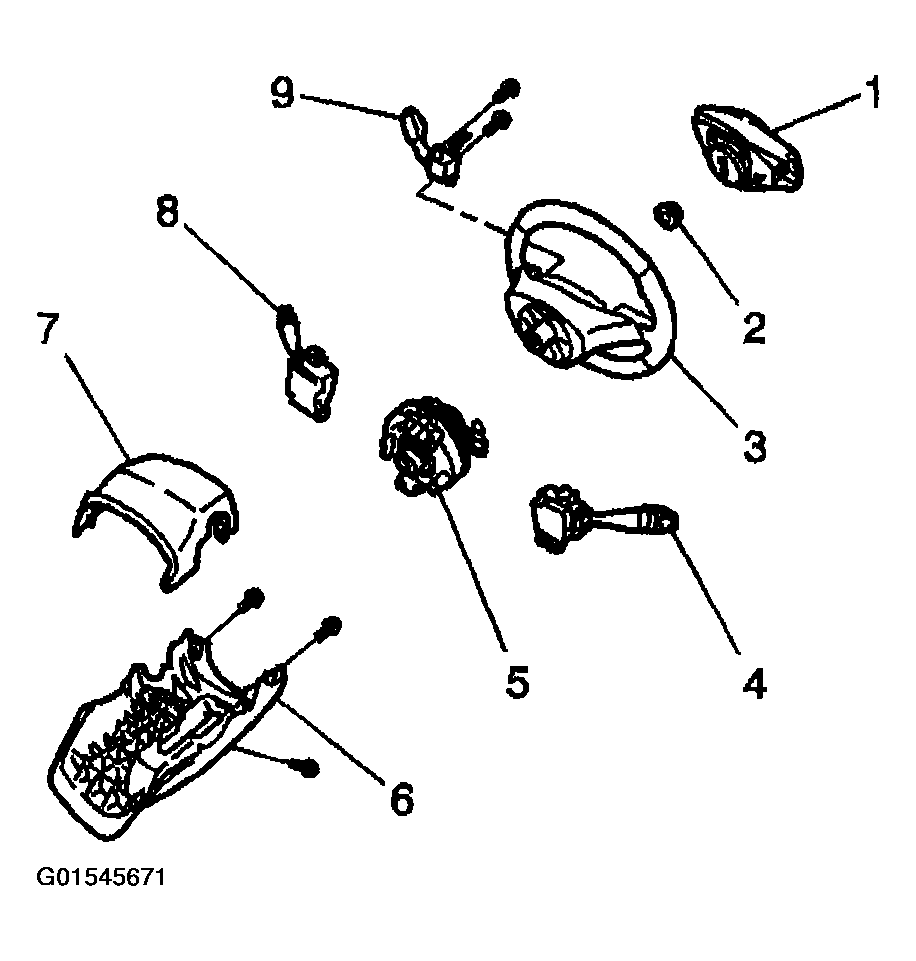

    Fig 1: Installing Steering Wheel
    G01545671Courtesy of GENERAL MOTORS CORP.
  2. Align the match marks on the steering wheel and on the steering shaft.
  3. Install the steering wheel to the steering shaft.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the nut (2)
    1. Tighten
    2. Tighten the nut to 50 N.m (36.9 lb ft).
  5. If the vehicle has cruise control, install the cruise control switch. Refer to CRUISE CONTROL SWITCH REPLACEMENT .
  6. Connect the horn connector and install the inflatable restraint steering wheel module. Refer to REMOVAL & INSTALLATION (DRIVER-SIDE) .
