Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the following to the HVAC control unit:
    • The lamp bulbs.
    • The electrical connector
    • The temperature control cable
    • The mode control cable

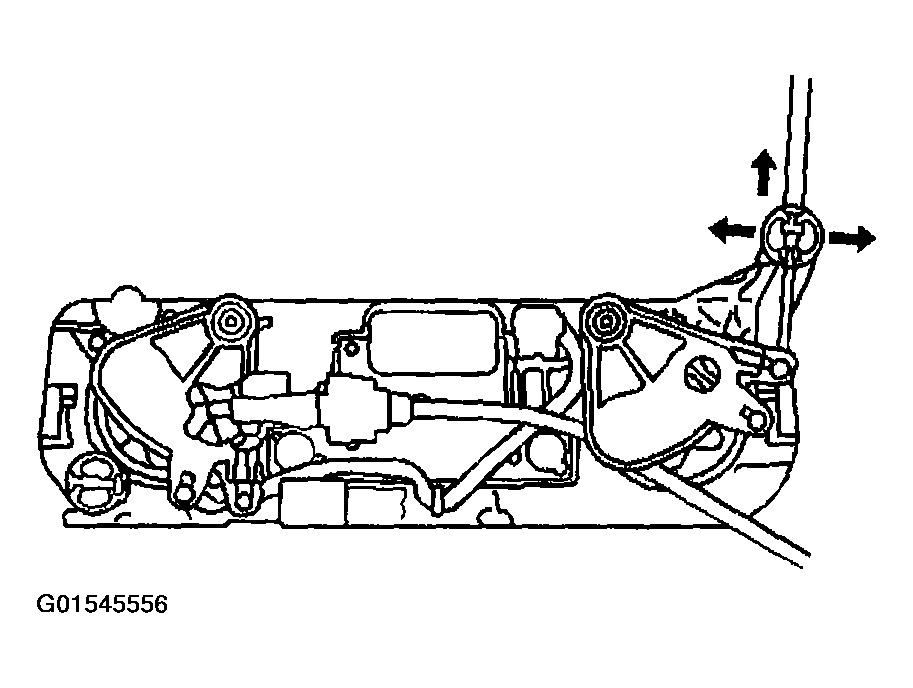

    Fig 1: Installing Temperature Control Cable
    G01545556Courtesy of GENERAL MOTORS CORP.
  2. Install the HVAC control unit to the instrument panel.
  3. Install the center console and heater control trim panel (1). Secure the panel with the screw.

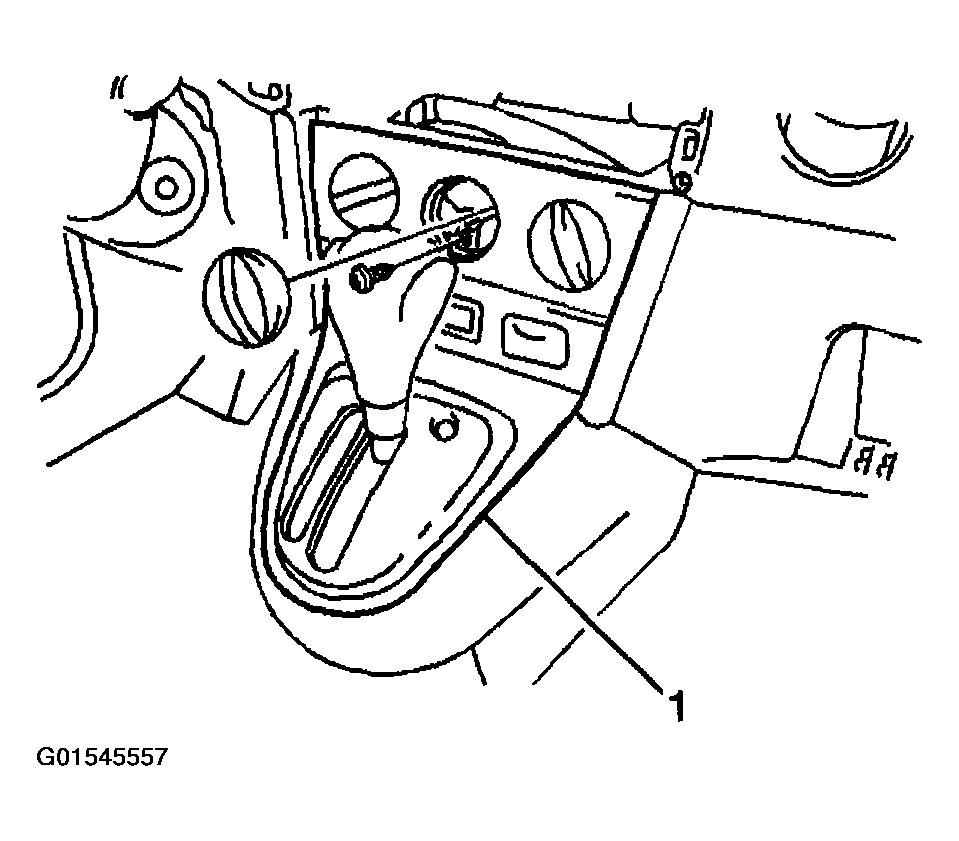

    Fig 2: Installing Center Console And Heater Control Trim Panel
    G01545557Courtesy of GENERAL MOTORS CORP.
  4. Install the center knob to the HVAC control unit.
  5. Adjust the cables as necessary, refer to the following:
  6. Install the radio. Refer to RADIO REPLACEMENT in Entertainment.
