Mode Linkage Adjustment

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the mode control cable (2) from the clip (1) at the HVAC module assembly.

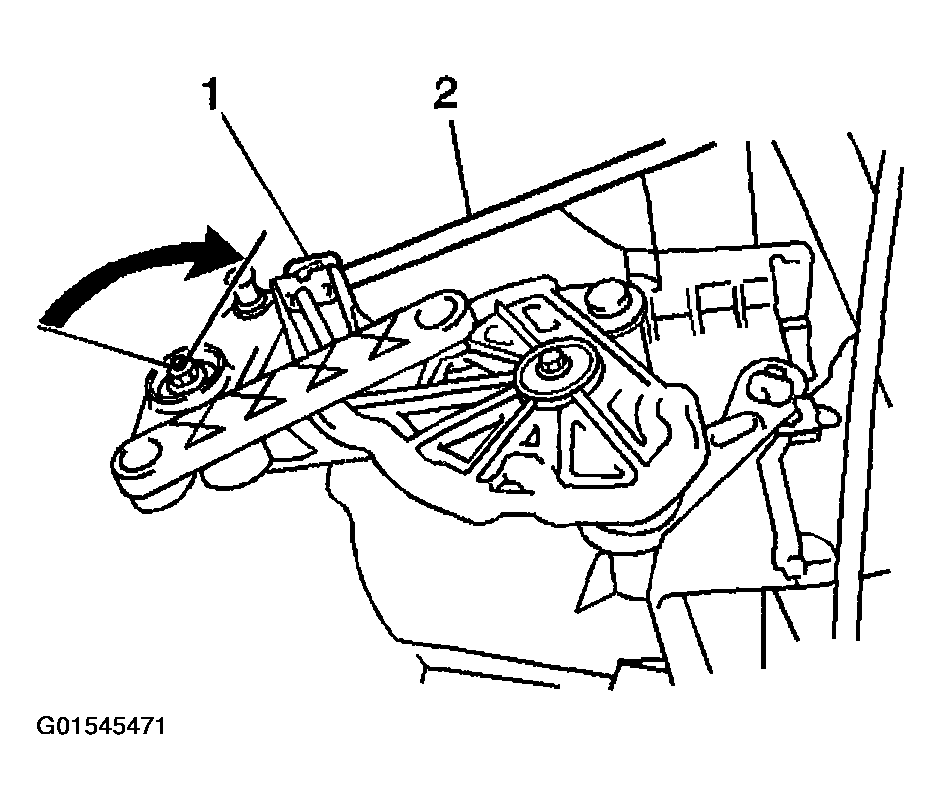

    Fig 1: Adjusting Mode Linkage
    G01545471Courtesy of GENERAL MOTORS CORP.
  2. Set the mode dial to Defrost.
  3. Hold the door lever fully rearward, clockwise.
  4. Install the cable (2) to the clip (1).
  5. Test the cable for smooth operation.
  6. Test that the door opens fully in both directions.
