Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground (negative) cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Battery.
  2. Remove the right engine mount strut from the right engine mount strut bracket.
  3. Remove the air conditioning compressor mounting bolts. Refer to COMPRESSOR REPLACEMENT (3.1L) in Heating, Ventilation, and Air Conditioning.
  4. Remove and set the air conditioning compressor aside.

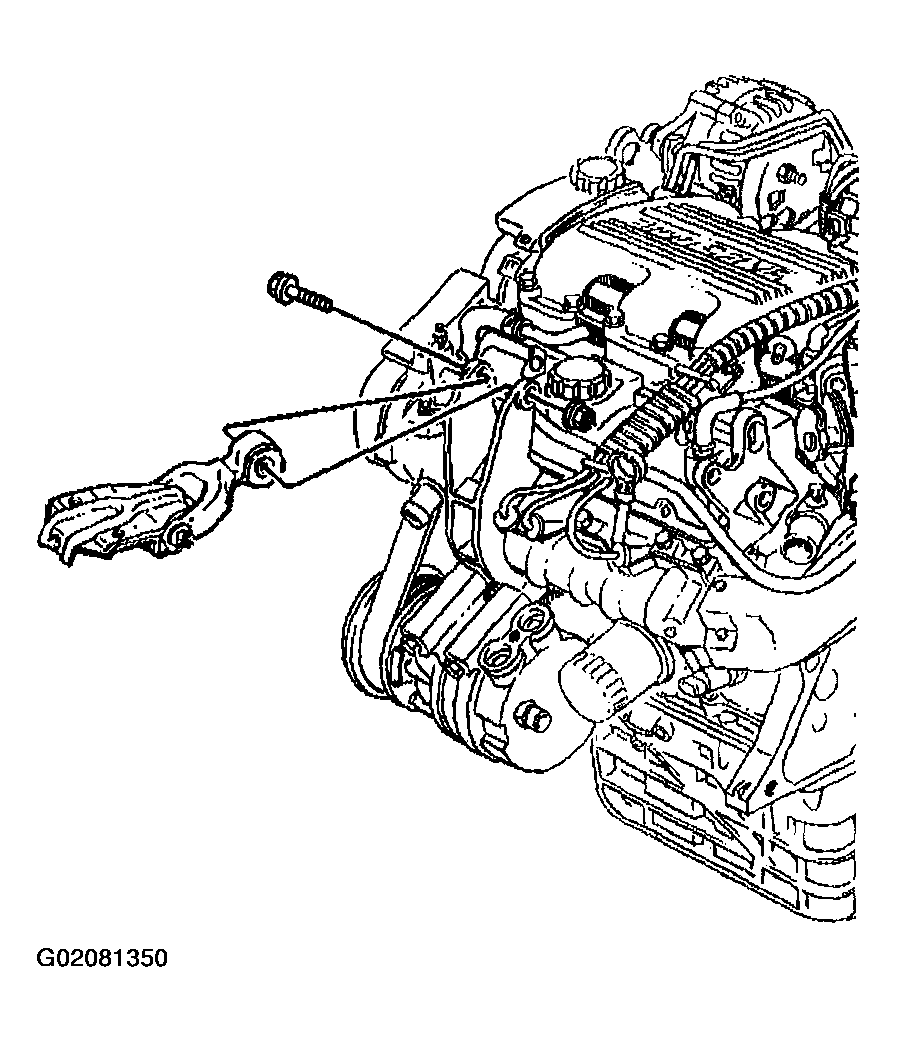

    Fig 1: Removing Right Engine Mount Strut From Right Engine Mount Strut Bracket
    G02081350Courtesy of GENERAL MOTORS CORP.
  5. Remove the bolts from the right engine mount strut bracket.
  6. Remove the right engine mount strut bracket.

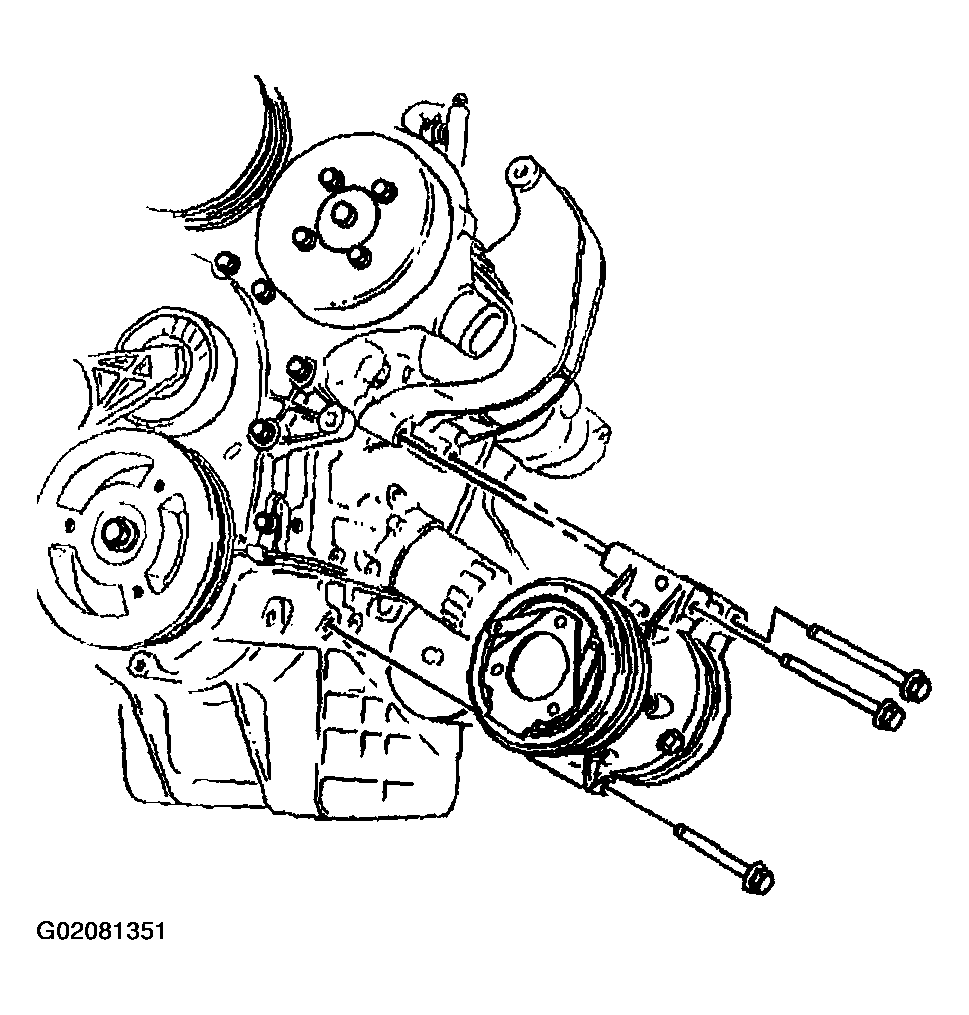

    Fig 2: Removing Right Engine Mount Strut Bracket
    G02081351Courtesy of GENERAL MOTORS CORP.
