Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Connect the heater outlet hose to the heater core.
Important: Reposition heater core hose clamps in the indicated location.
Use J 38185 in order to reposition the heater core hose outlet clamp.

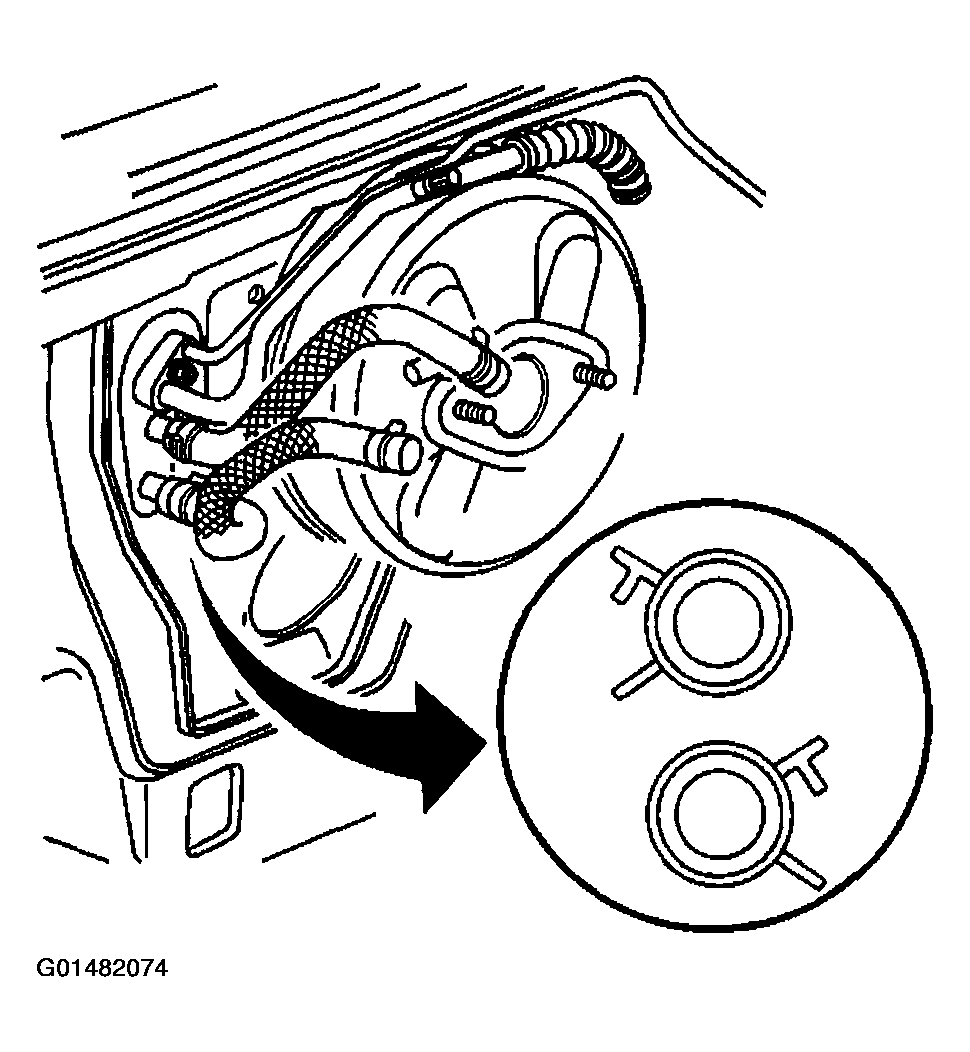

Fig 1: Identifying Heater Core Outlet Hose Clamp
Courtesy of GENERAL MOTORS CORP.
Connect the heater outlet hose (2) to the outlet pipe.
Use J 38185 in order to reposition the heater hose outlet clamp.
Refill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM .

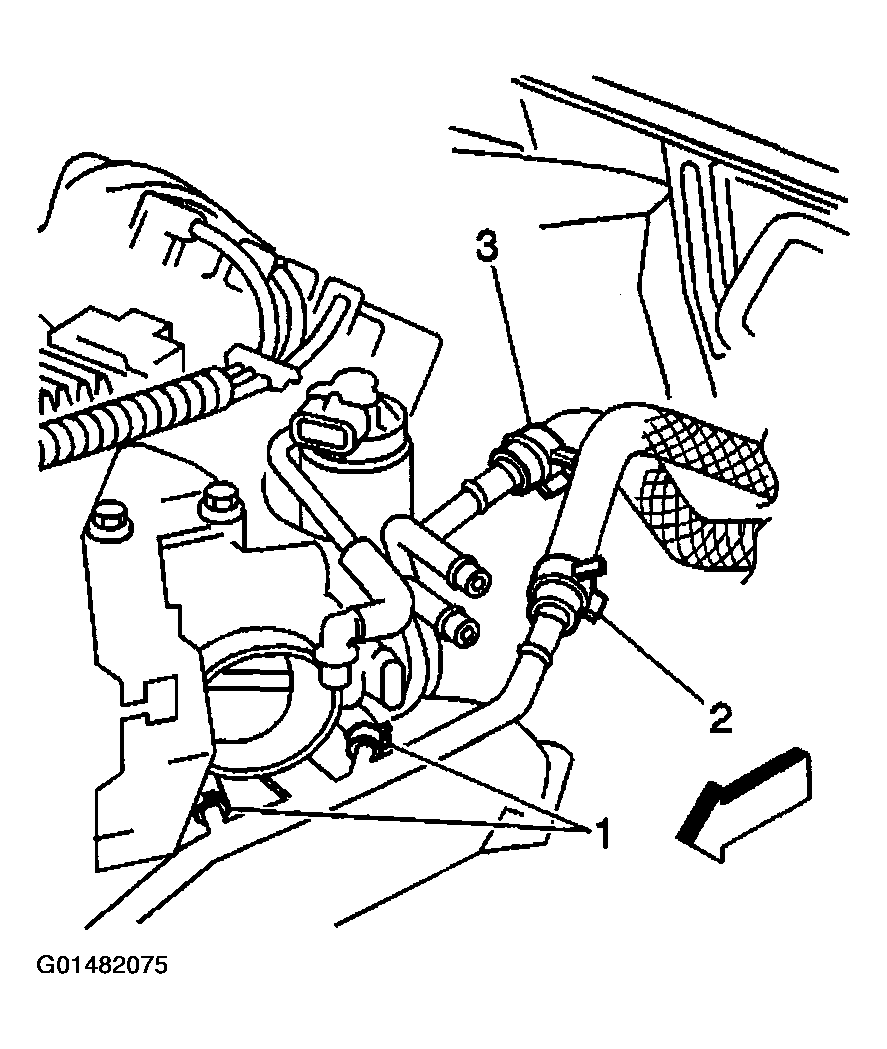

Fig 2: Connecting Heater Outlet Hose To Outlet Pipe
Courtesy of GENERAL MOTORS CORP.
