Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant. Refer to Refrigerant Recovery And Recharging  .
  2. Remove the upper diagonal brace from the front fender. Refer to BRACE REPLACEMENT - FRONT FENDER UPPER DIAGONAL .
  3. Remove the air cleaner assembly.
  4. Remove the radiator. Refer to RADIATOR REPLACEMENT .
  5. Loosen the condenser tube nut from the condenser.

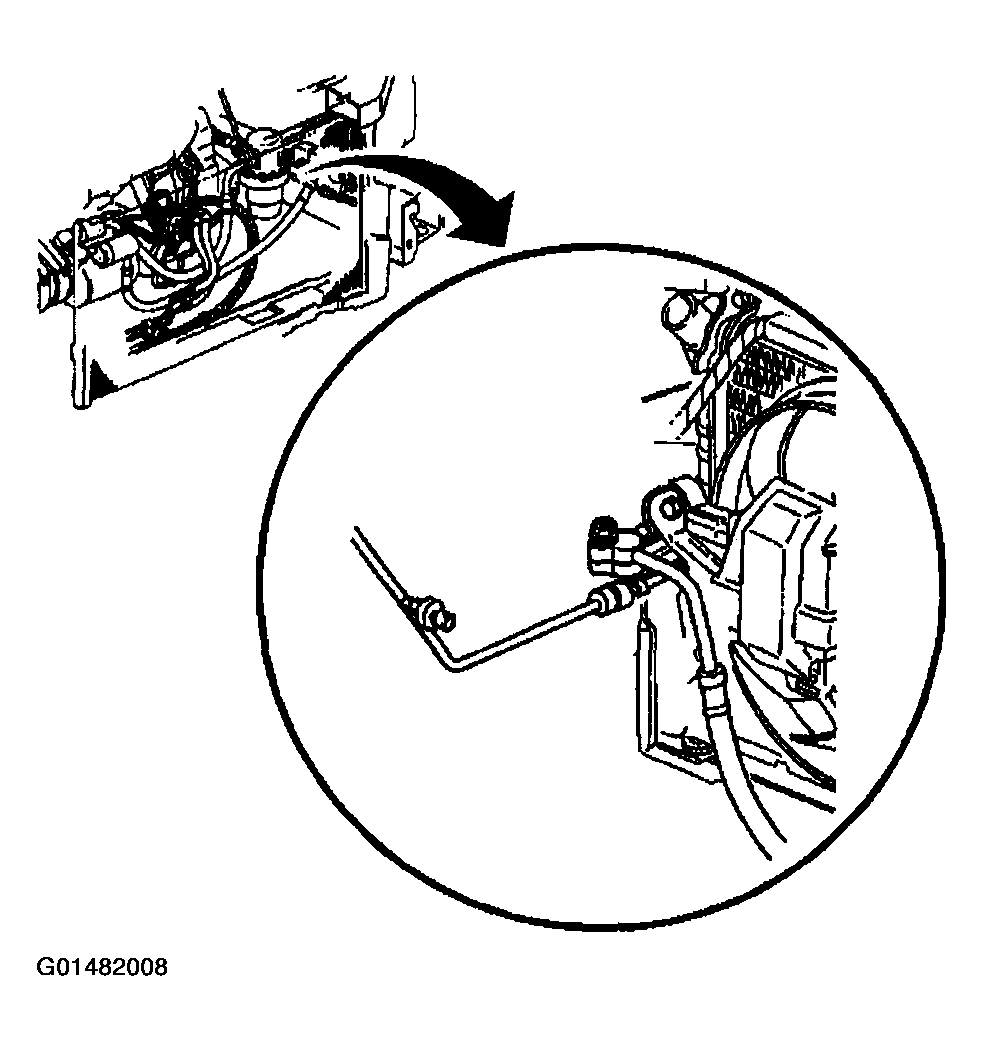

    6. Fig 1: Loosening Condenser Tube Nut From Condenser
    G01482008Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the condenser tube from the condenser.
  7. Remove the A/C compressor hose block fitting nut from the condenser.
  8. Disconnect the A/C compressor hose from the condenser.

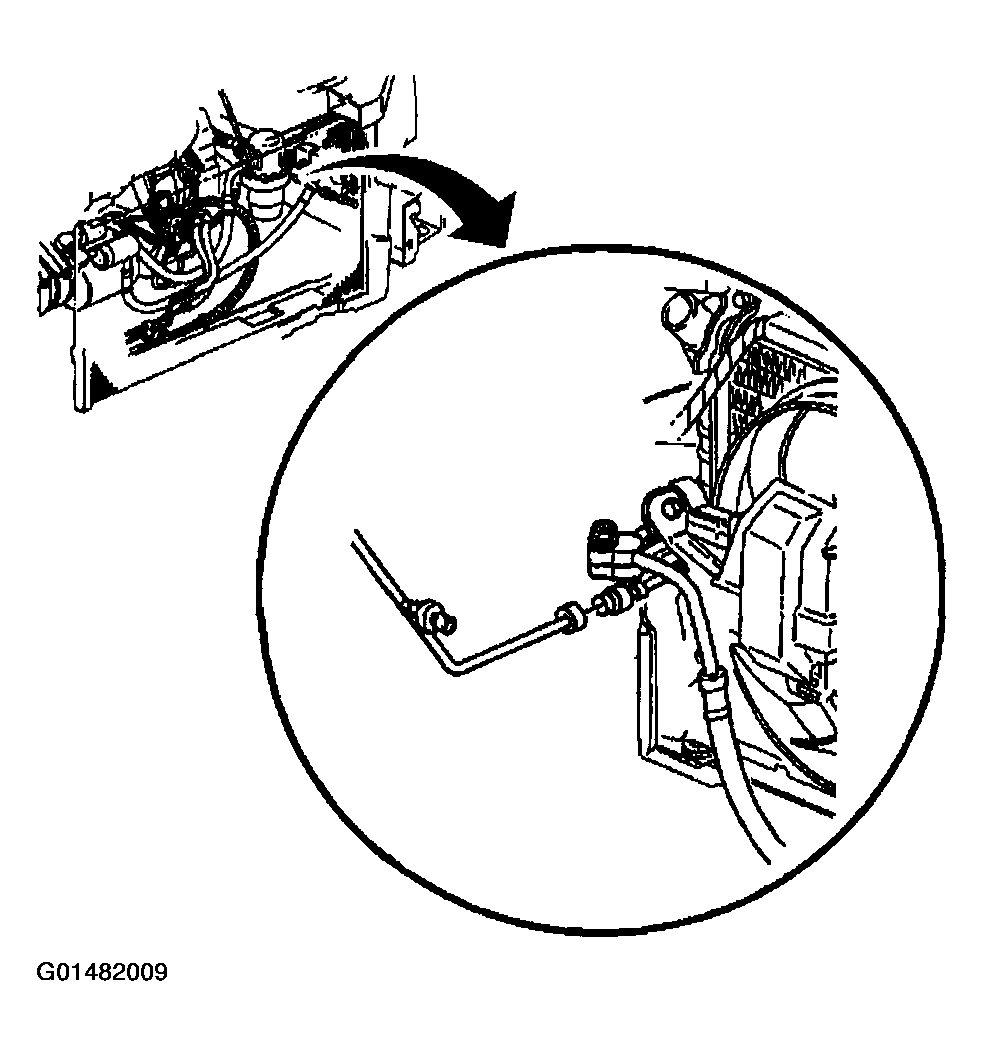

    Fig 2: Disconnecting A/C Compressor Hose From Condenser
    G01482009Courtesy of GENERAL MOTORS CORP.
  9. Tilt the top of the condenser to the rear of the vehicle and lift up to remove the condenser.
  10. Ensure the lower rubber mounts stay in place in the vehicle.
  11. Remove the upper rubber mounts from the condenser.

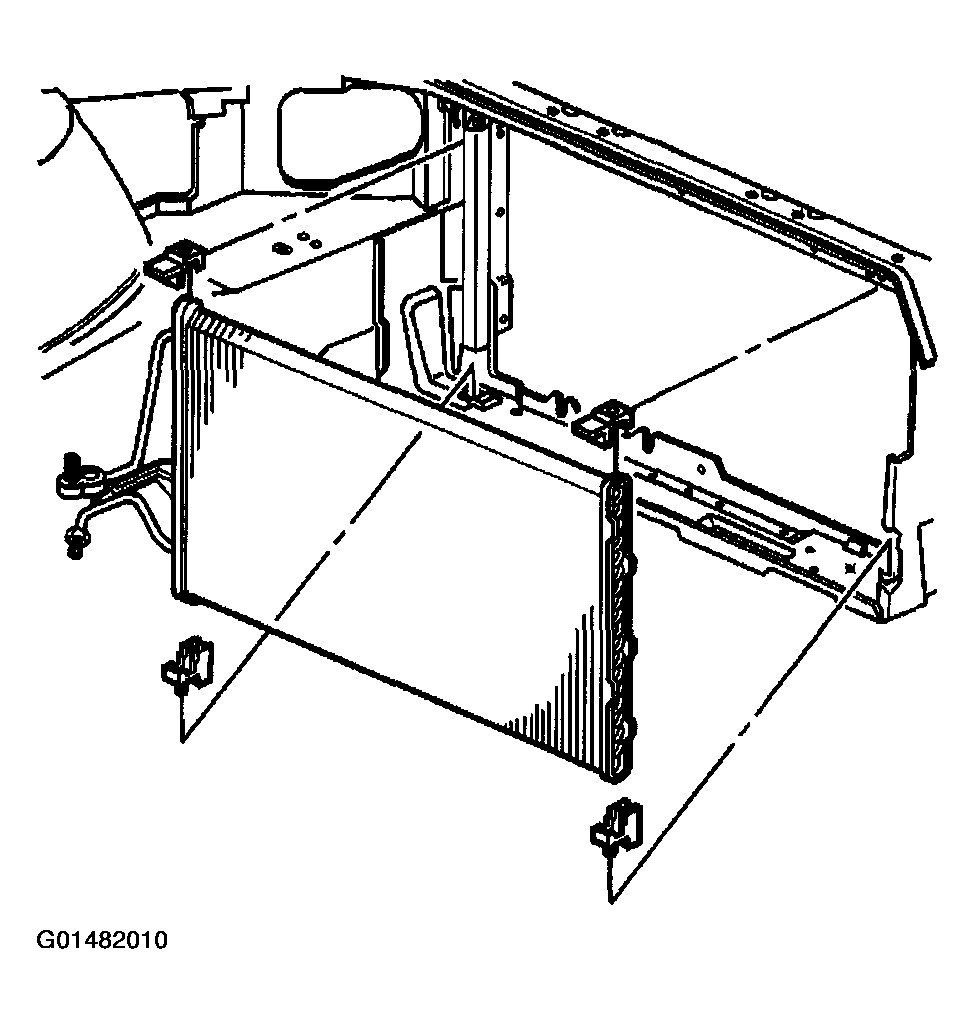

Fig 3: Removing Upper Rubber Mounts From Condenser
G01482010Courtesy of GENERAL MOTORS CORP.
