Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the underhood relay center knob (1).
  2. Remove the underhood relay center cover (2).

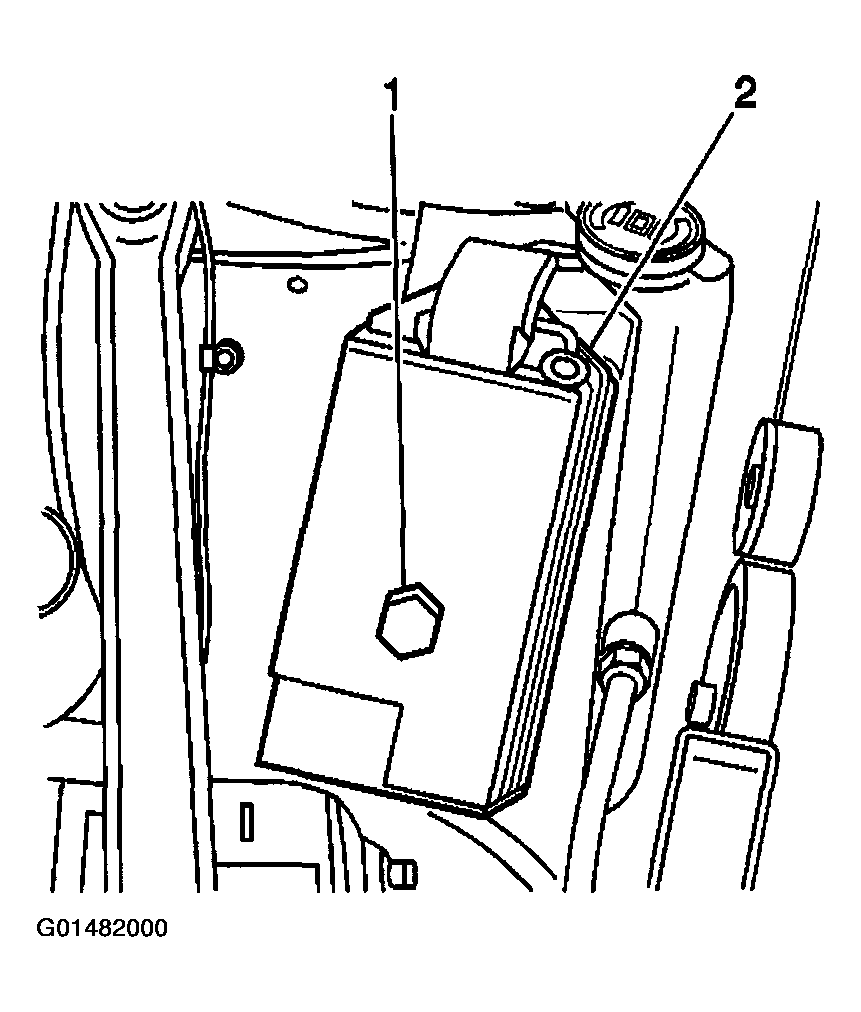

    Fig 1: Removing Underhood Relay Center Knob & Relay Cover
    G01482000Courtesy of GENERAL MOTORS CORP.
  3. Remove the A/C compressor control relay (13) from the electrical center.

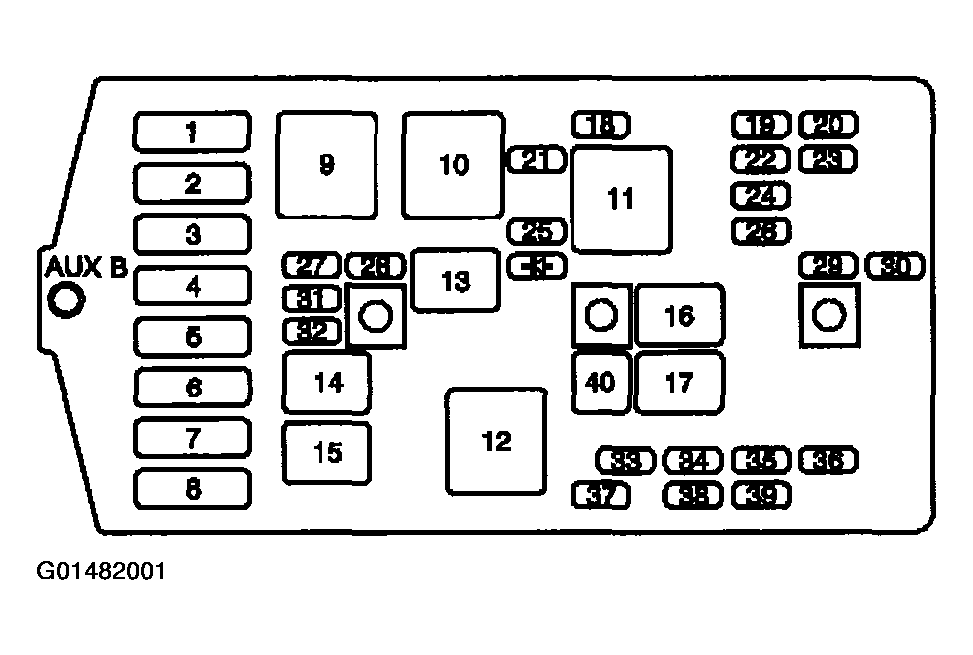

Fig 2: Removing A/C Compressor Control Relay
G01482001Courtesy of GENERAL MOTORS CORP.
