Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant. Refer to Refrigerant Recovery And Recharging  .
  2. Remove the air cleaner assembly.
  3. Remove the A/C compressor hose nut (1) from the condenser.
  4. Remove the A/C compressor hose from the condenser.

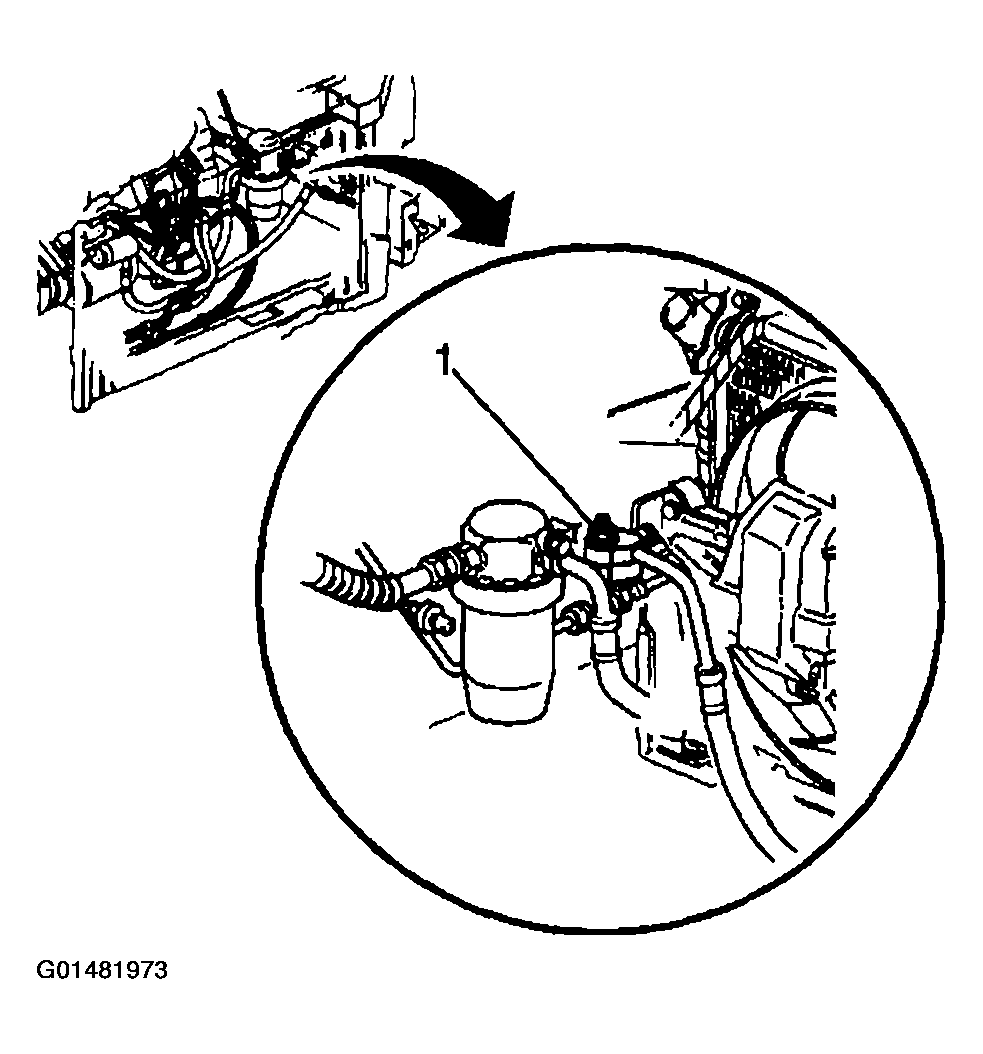

    Fig 1: Removing A/C Compressor Hose & Nut (3.8L)
    G01481973Courtesy of GENERAL MOTORS CORP.
  5. Remove the A/C compressor hose nut (2) from the accumulator.
  6. Remove the A/C compressor hose from the accumulator.
  7. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  8. Remove the lower air deflector. Refer to RADIATOR AIR BAFFLE AND DEFLECTOR REPLACEMENT-LOWER .

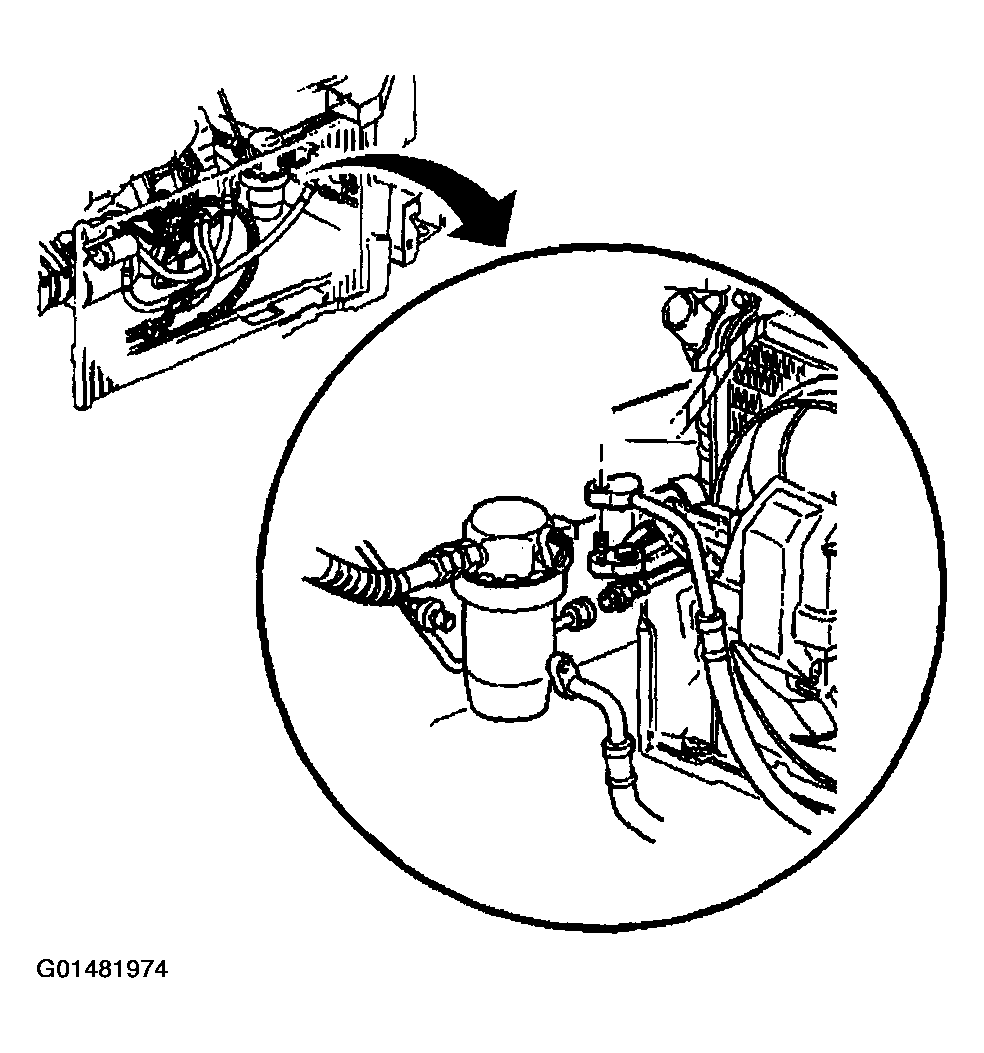

    Fig 2: Removing A/C Compressor Hose & Nut From Accumulator (3.8L)
    G01481974Courtesy of GENERAL MOTORS CORP.
  9. Remove the A/C hose nut from the A/C compressor.

    Important:  Remove and discard all of the used O-ring and sealing washers.

  10. Remove the A/C compressor hose from the A/C compressor.

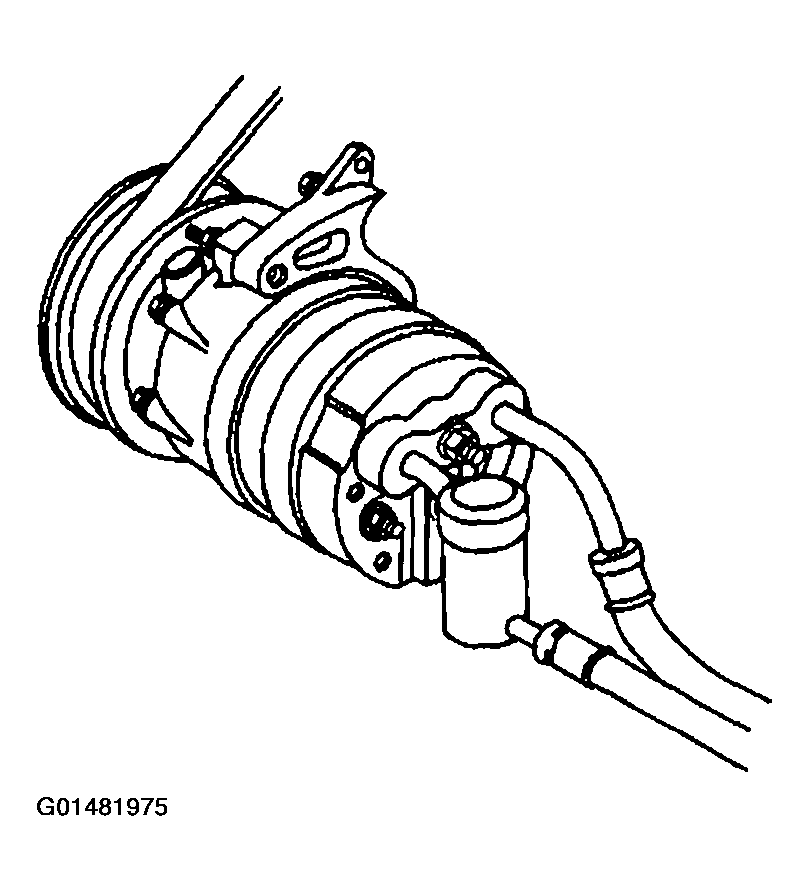

Fig 3: Removing A/C Compressor Hose (3.8L)
G01481975Courtesy of GENERAL MOTORS CORP.
