Tools Required

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

J 41790  Compressor Holding Fixture

  1. Install the compressor onto the J 41790  .
  2. Remove the compressor control valve retaining ring using internal snap ring pliers.
  3. Remove the compressor control valve from the compressor.

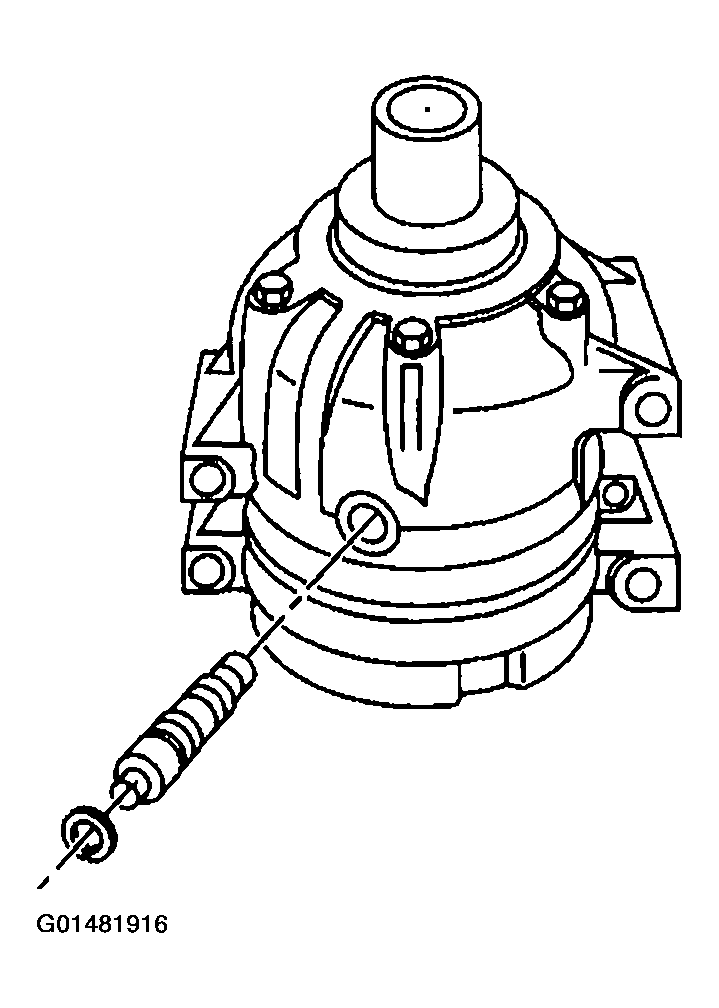

Fig 1: Removing Compressor Control Valve From Compressor (V5 - Direct Mount)
G01481916Courtesy of GENERAL MOTORS CORP.
