Tools Required

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

J 5403  Snap Ring Pliers

  1. Remove the control valve retaining ring using the J 5403  .
  2. Remove the control valve assembly (5).

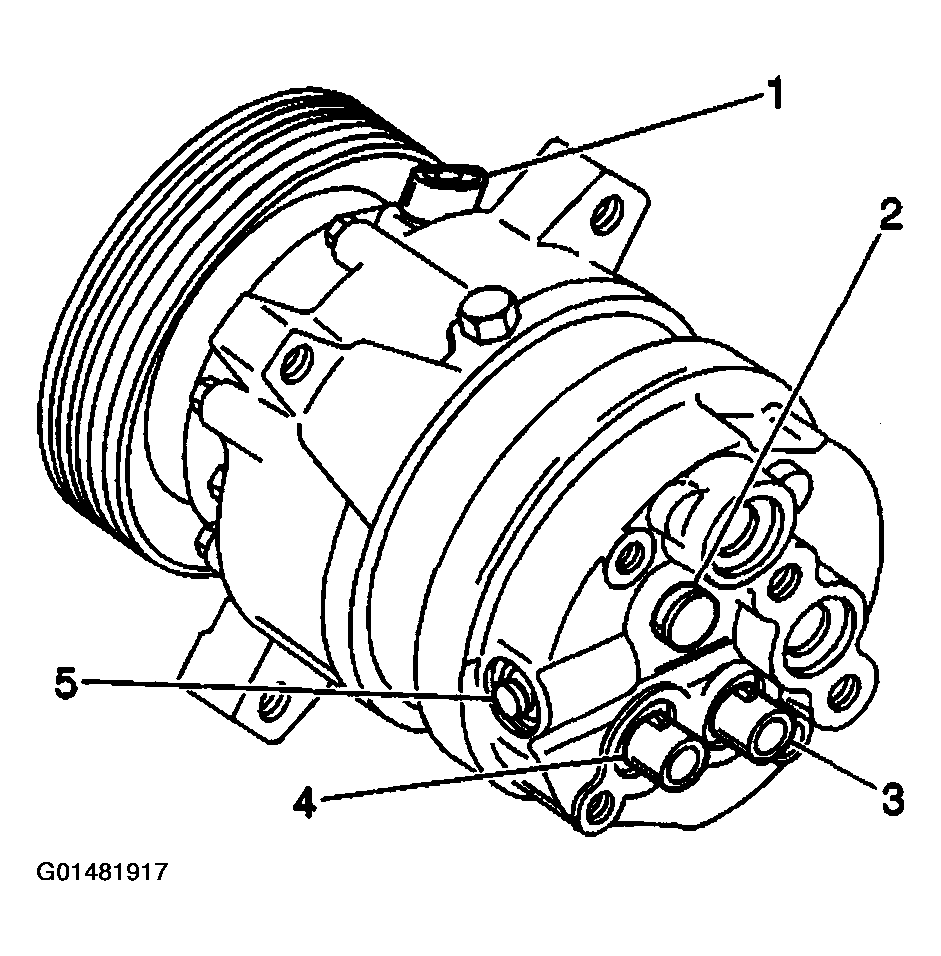

Fig 1: Removing Control Valve Assembly (V5 - Conventional Mount)
G01481917Courtesy of GENERAL MOTORS CORP.
