Tools Required

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant using the J 39500-B  .
  2. Disconnect the electrical connector from the switch (3 or 4) in the rear head of the compressor.
  3. Remove the switch retaining ring using the J 5403  .
  4. Remove the switch (3 or 4) from the compressor.
    NOTE: If the existing switch will be reinstalled in the compressor, a new O-ring seal must be used and preferably a new retainer should also be used. A new switch kit has the O-ring and retainer ring included.
  5. Remove the old O-ring seal from the switch cavity using the J 9553-01  .

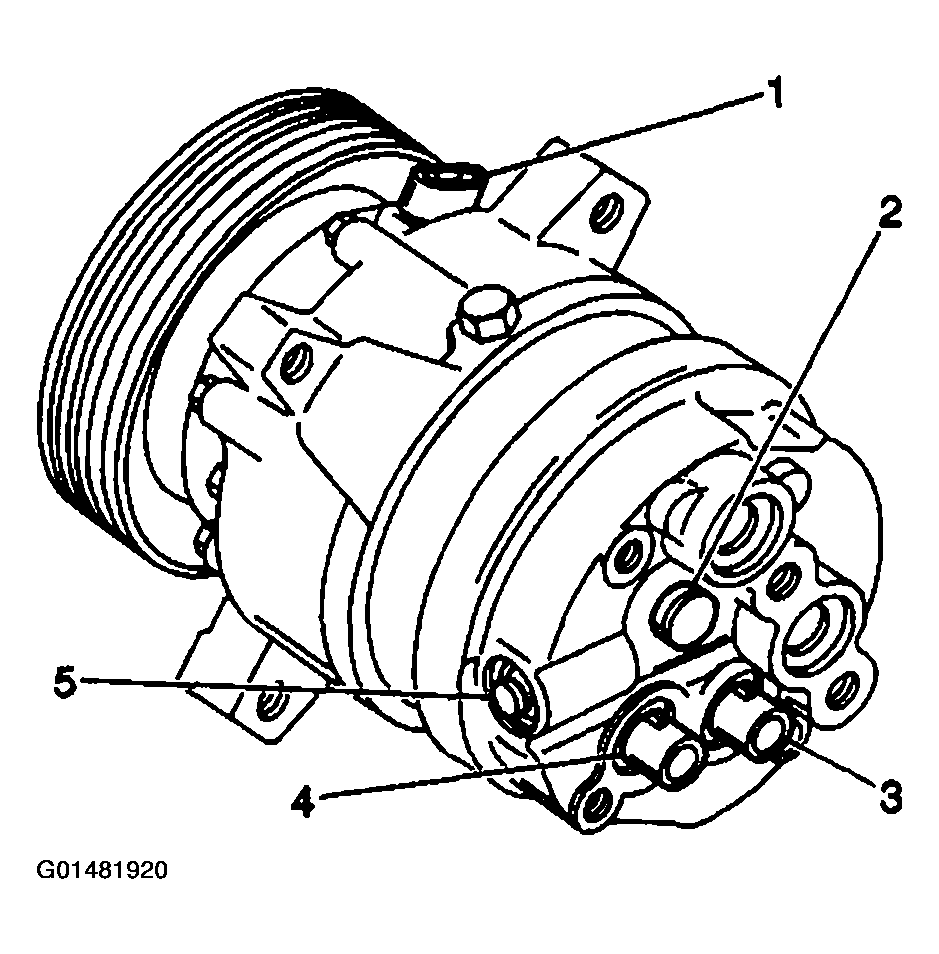

    Fig 1: Removing Switch From Compressor (V5 - Conventional Mount)
    G01481920Courtesy of GENERAL MOTORS CORP.
