Tools Required

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clamp the J 41790  in a vise and attach the A/C compressor to the holding fixture.
  2. Hold the clutch hub and drive plate assembly (2) in place using the J 33027-A  .
  3. Remove the A/C compressor shaft nut with a 13 mm socket (1).

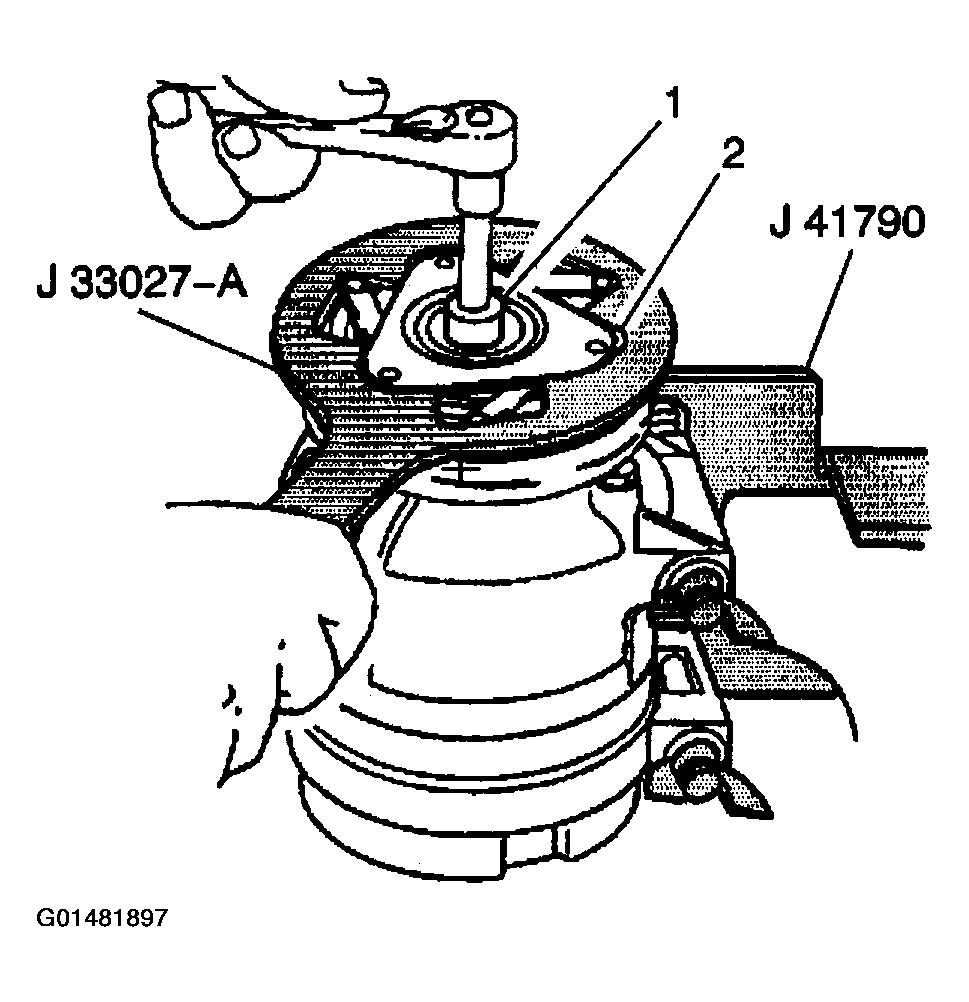

    Fig 1: Removing A/C Compressor Shaft Nut (V5 - Direct Mount)
    G01481897Courtesy of GENERAL MOTORS CORP.
  4. Thread the clutch plate and hub remover and installer tool hub and drive plate installer into the hub.
  5. Remove the hub and drive plate assembly (1) by turning the center screw into the body of the hub and drive plate installer and against the A/C compressor shaft.
  6. Remove the shaft key and retain for reassembly.

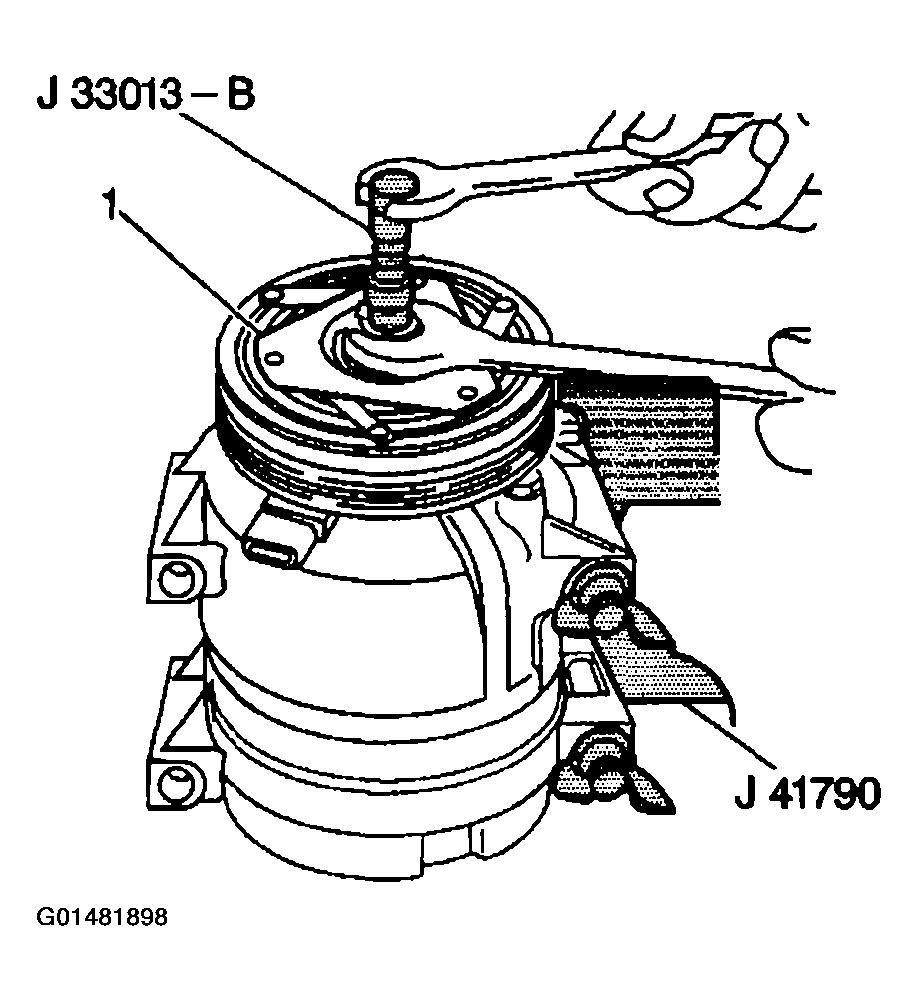

Fig 2: Removing Hub & Drive Plate Assembly (V5 - Direct Mount)
G01481898Courtesy of GENERAL MOTORS CORP.
