Tools Required

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clamp the J 34992  in a vise.
  2. Attach the A/C compressor to the holding fixture using the thumb screws.
  3. Use the J 33027-A  in order to prevent the clutch hub and drive plate assembly from turning.
  4. Use the J 33022  in order to remove the shaft nut.

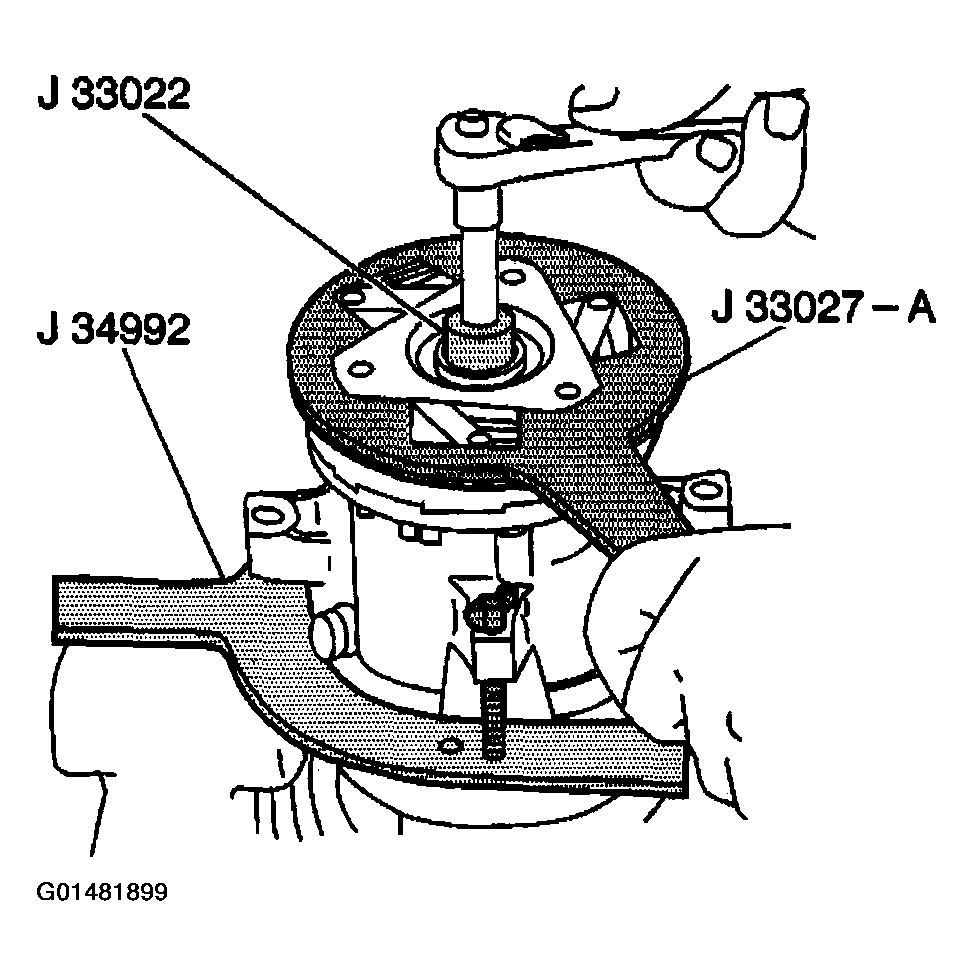

    Fig 1: Removing Shaft Nut (V5 - Conventional Mount)
    G01481899Courtesy of GENERAL MOTORS CORP.
  5. Thread the J 33013-B  into the hub.
  6. Use a wrench in order to hold the body of the J 33013-B  .
  7. Turn the center screw into the body of the J 33013-B  in order to remove the clutch plate and hub assembly.
  8. Remove the shaft key. Retain the shaft key for reassembly.

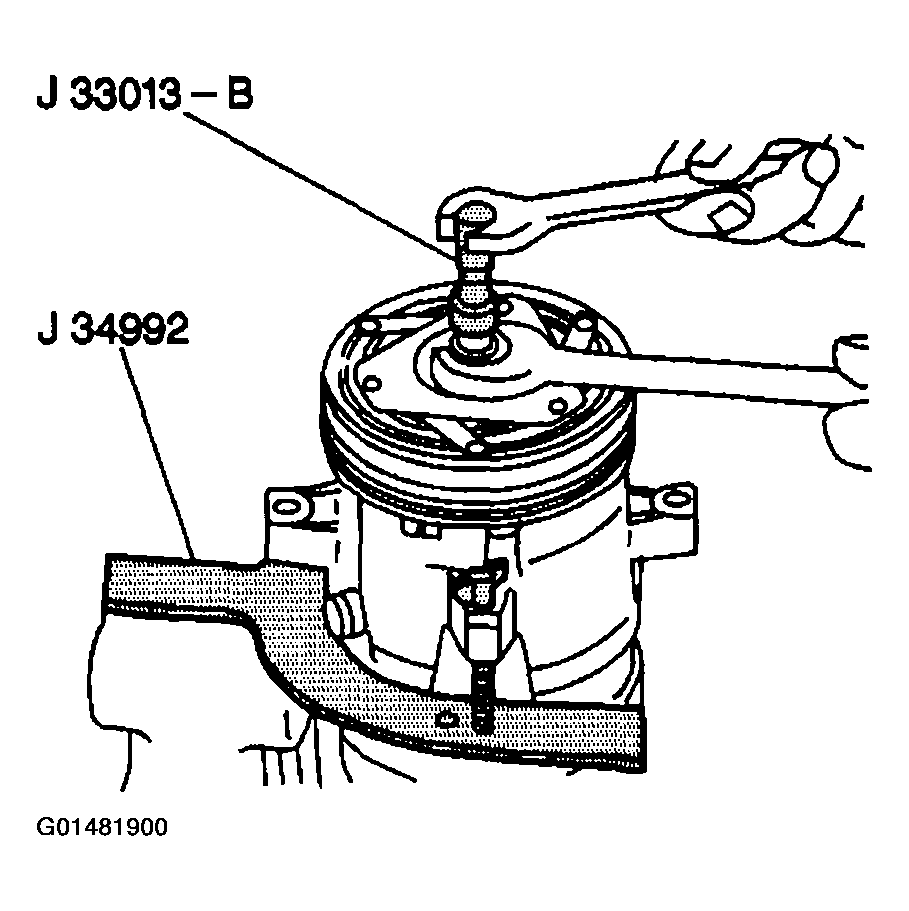

Fig 2: Removing Clutch Plate & Hub Assembly (V5 - Conventional Mount)
G01481900Courtesy of GENERAL MOTORS CORP.
