Tools Required
WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
- J 33024 Clutch Coil Installer Adapter
- J 33025 Clutch Coil Puller Legs
- J 8433 Compressor Pulley Puller
- J 8433-3 Forcing Screw
- J 41790 Compressor Holding Fixture
- J 42136 A/C Lip Seal Remover

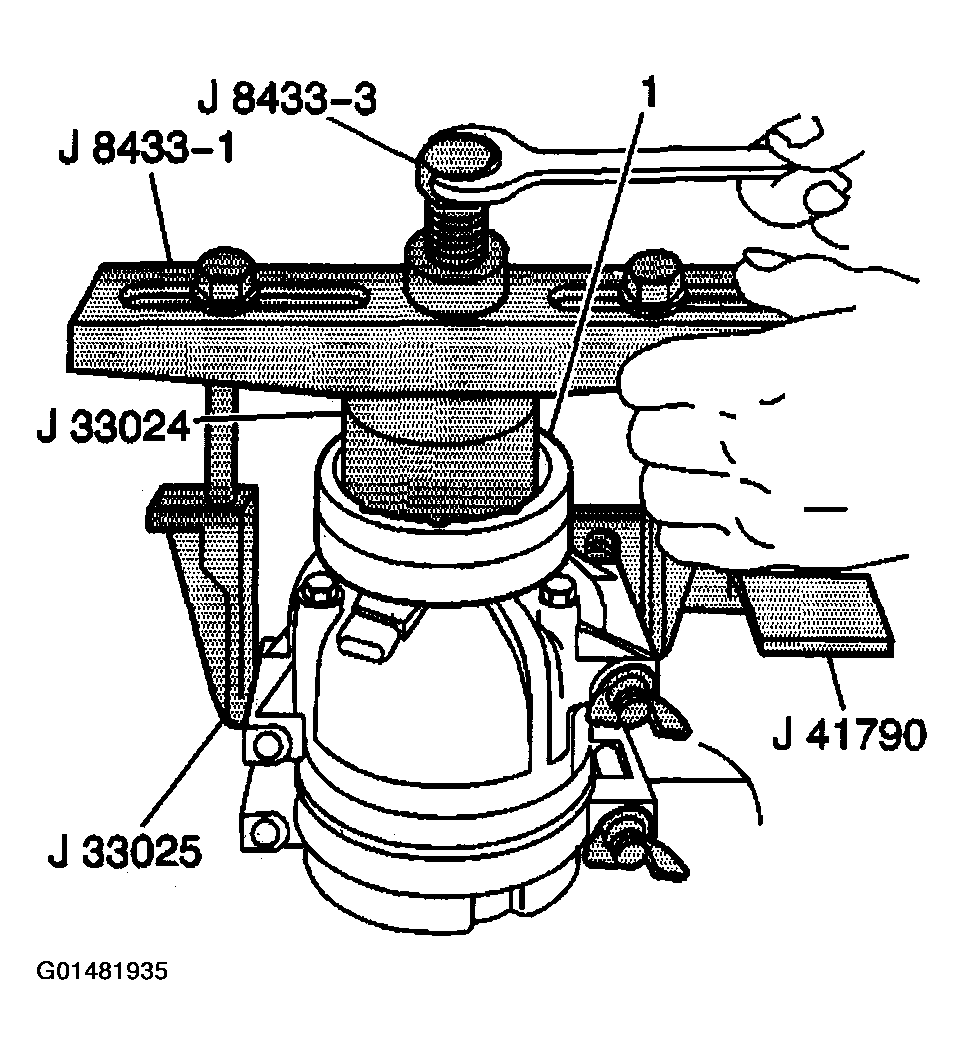

- Place the clutch coil assembly (1) on the front head with the clutch coil terminal at the positioned at the mark made during disassembly.
- Place the J 33024 over the internal opening of the clutch coil housing and align installer with the compressor front head.
- Install the J 8433-3 into the J 8433 and center the screw in the countersunk center hole of the J 33024 .
- Install the 4 inch through bolts and washers from the J 42136 tool kit into the J 33025 and attach them to the compressor mounting bosses.
- Turn the center forcing screw of the J 8433
to press the clutch coil onto the front head until the clutch coil is fully seated.
Make sure the clutch coil and the J 33024 stay in-line with each other while pressing the clutch coil onto the compressor.
- Install the compressor clutch rotor and bearing assembly. Refer to Clutch Rotor And/Or Bearing Install (V5 - Direct Mount) or Clutch Rotor And/Or Bearing Install (V5 - Conventional Mount) .
- Install the compressor clutch plate and hub assembly. Refer to Compressor Clutch Plate/Hub Assembly Install (V5 - Direct Mount) or Compressor Clutch Plate/Hub Assembly Install (V5 - Conventional Mount) .
- Remove the compressor from the J 41790 .
