Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the clutch rotor and bearing assembly (2) onto the compressor.
  2. Position the J 33017  and bearing (1) from the J 33013-B  directly over the inner race of the bearing.
  3. Place the washer (3) onto the body of J 33013-B  .
  4. Remove the center screw from the body of the hub and drive plate installer.
  5. Install the center screw into the opposite end of the hub and drive plate installer.
  6. Back the body of the hub and drive plate installer tool off enough to allow the center screw to be threaded onto the end of the compressor shaft.
  7. Thread the center screw several turns onto the end of the compressor shaft.

    Do not tighten the center screw on the compressor shaft.

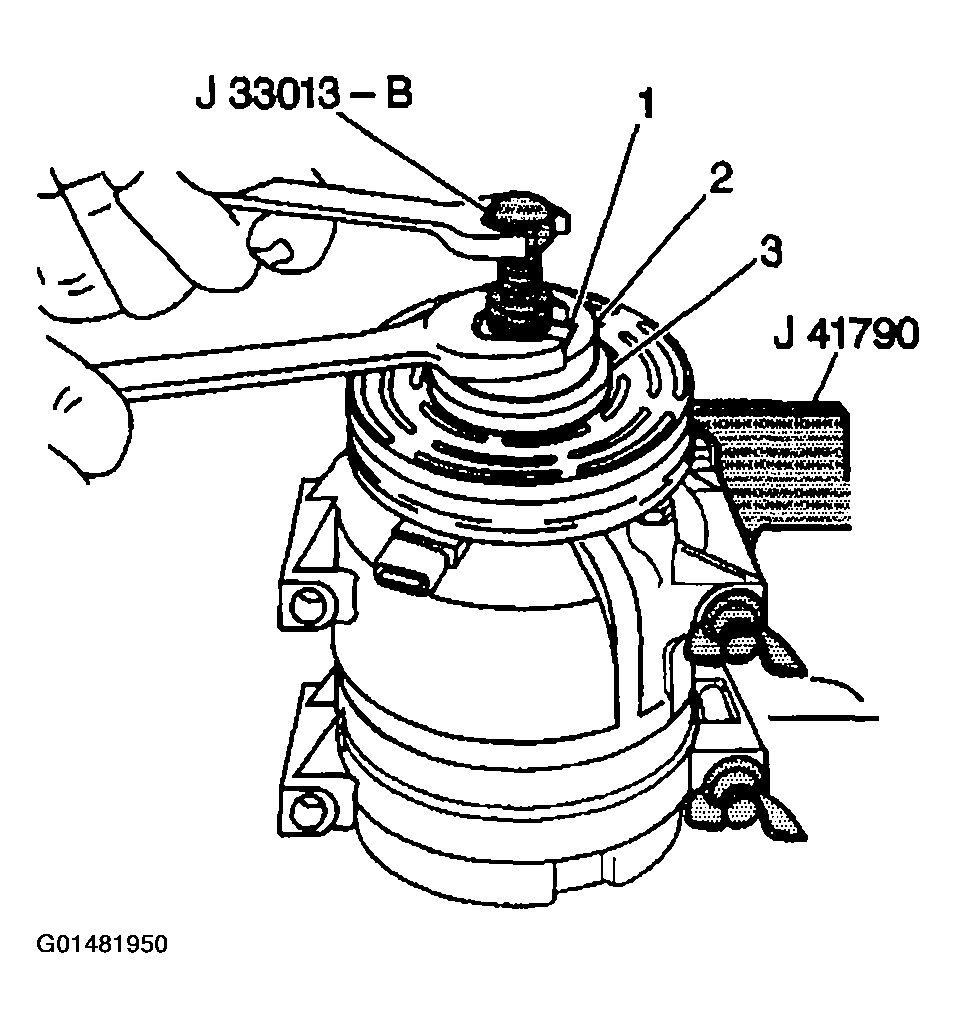

    Fig 1: Installing Bearing Assembly & Washer (V5 - Direct Mount)
    G01481950Courtesy of GENERAL MOTORS CORP.
  8. Hold the center screw with a wrench.
  9. Tighten the hex portion of the hub and drive plate installer body several turns.
  10. Remove the J 33013-B  from the clutch rotor and bearing assembly.
  11. Ensure that the clutch rotor and bearing (2) is pressed onto the nose of the compressor far enough to clear the groove for the retaining ring.

    If the clutch rotor and bearing does not clear the groove, repeat steps 7, 8 and 9.

  12. Install the clutch rotor and bearing retaining ring (3) using external snap ring pliers (1).

    Ensure that the chamfer side of the retaining ring is facing up when the retaining ring is being installed.

  13. Install the clutch plate and hub assembly.
  14. Remove the compressor from the J 41790  .
  15. Install the A/C compressor. Refer to Compressor Replacement (3.1L)   or  Compressor Replacement (3.8L)   .

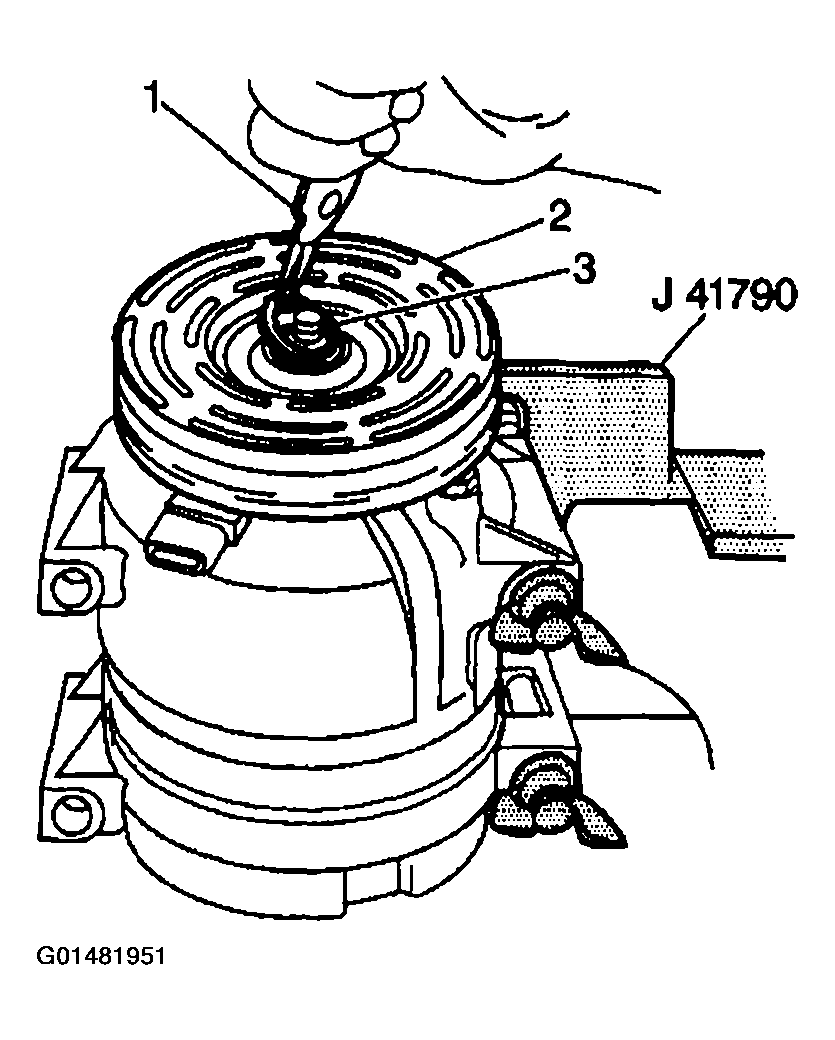

    Fig 2: Installing Clutch Rotor & Bearing Retaining Ring (V5 - Direct Mount)
    G01481951Courtesy of GENERAL MOTORS CORP.
