Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right side instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT .
  2. Disconnect the electrical connectors from the blower motor resistor.

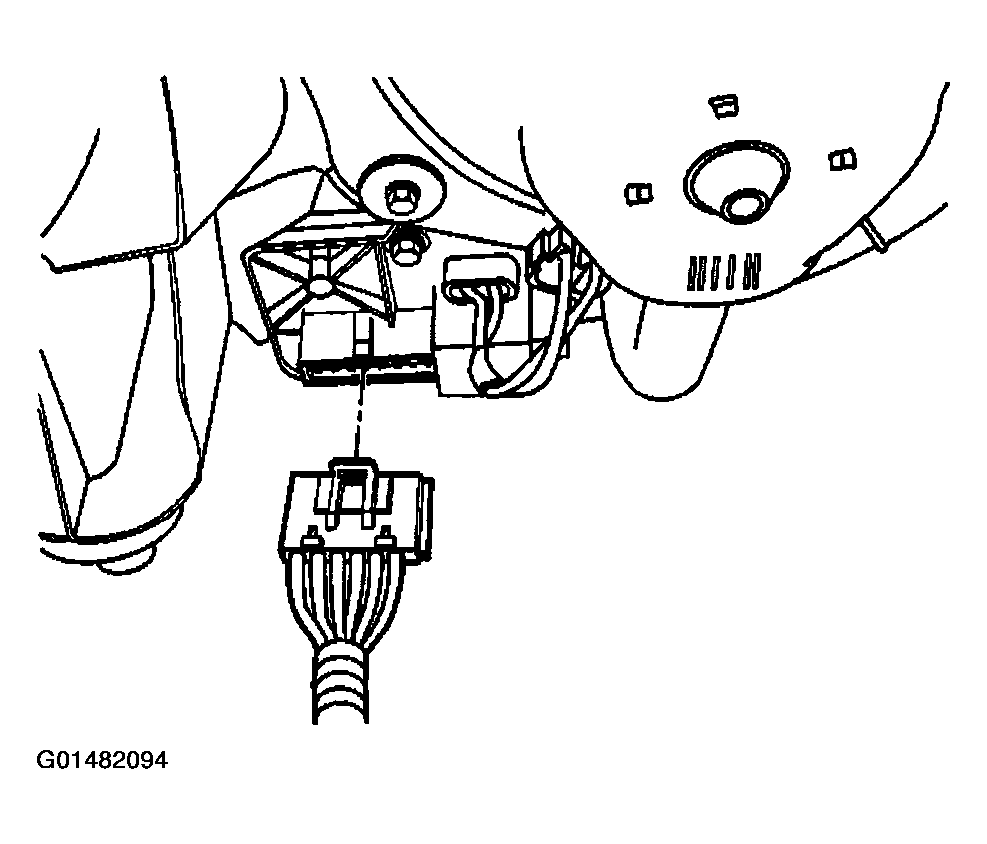

    Fig 1: Disconnecting Electrical Connectors From Blower Motor Resistor
    G01482094Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the blower motor resistor electrical connector from the blower motor.

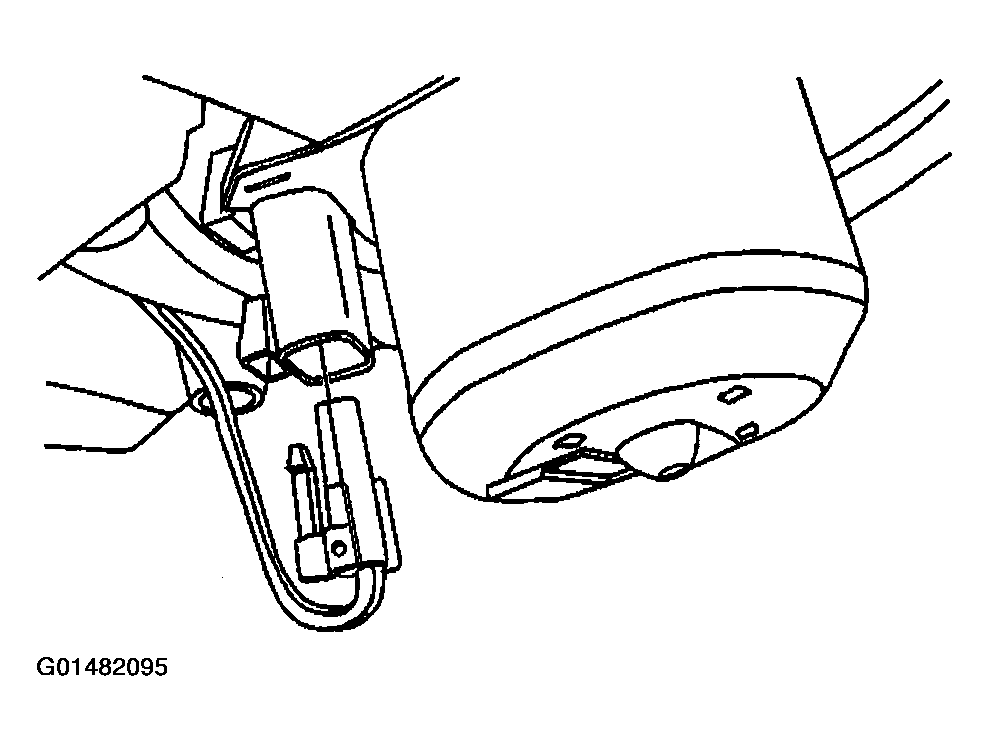

    Fig 2: Disconnecting Blower Motor Resistor Electrical Connector From Blower Motor
    G01482095Courtesy of GENERAL MOTORS CORP.
  4. Loosen, but do NOT remove, the forward screws.

    Important:  The blower motor resistor opening is slotted as access is extremely limited.

  5. Remove the rearward screw.
  6. Remove the blower motor resistor.

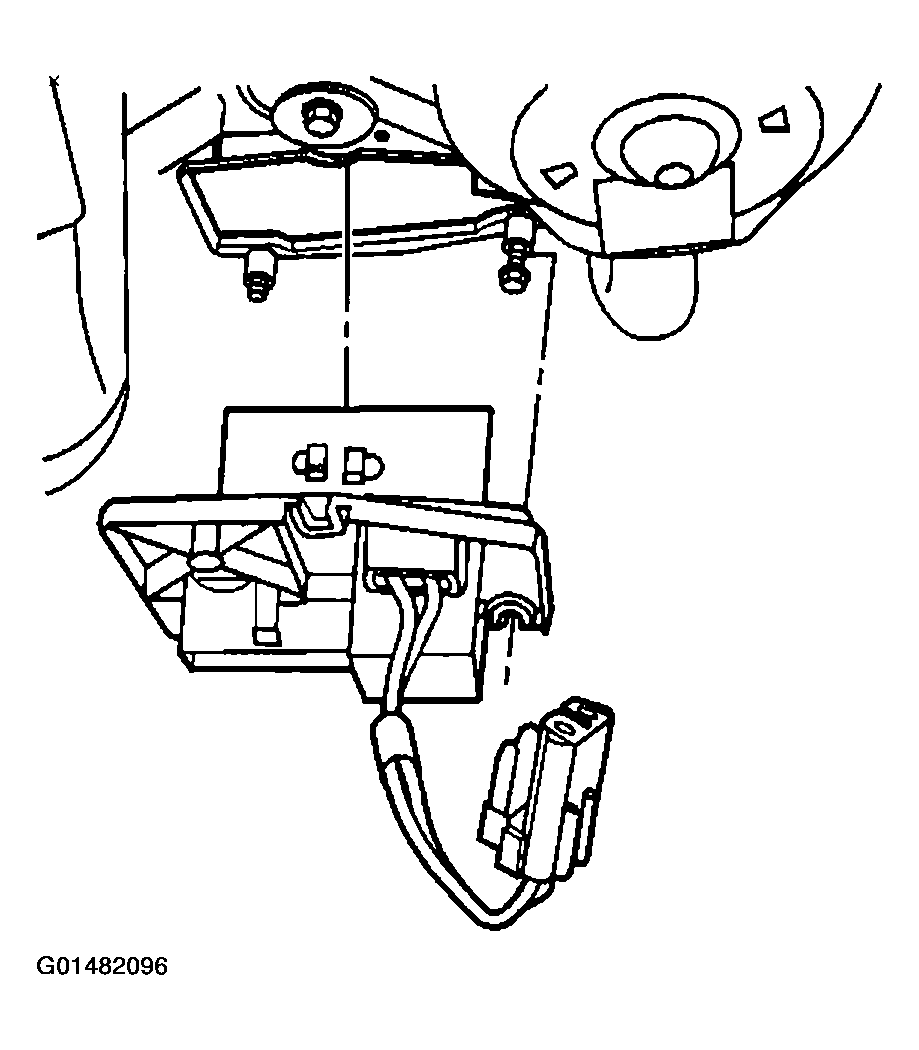

Fig 3: Removing Blower Motor Resistor
G01482096Courtesy of GENERAL MOTORS CORP.
