Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the blower motor resistor.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the rearward screw to the blower motor control processor.

    Tighten

    Tighten the screw to 1.5 N.m (13 lb in).

  3. Tighten both of the forward screws.

    Tighten

    Tighten the screws to 1.5 N.m (13 lb in).

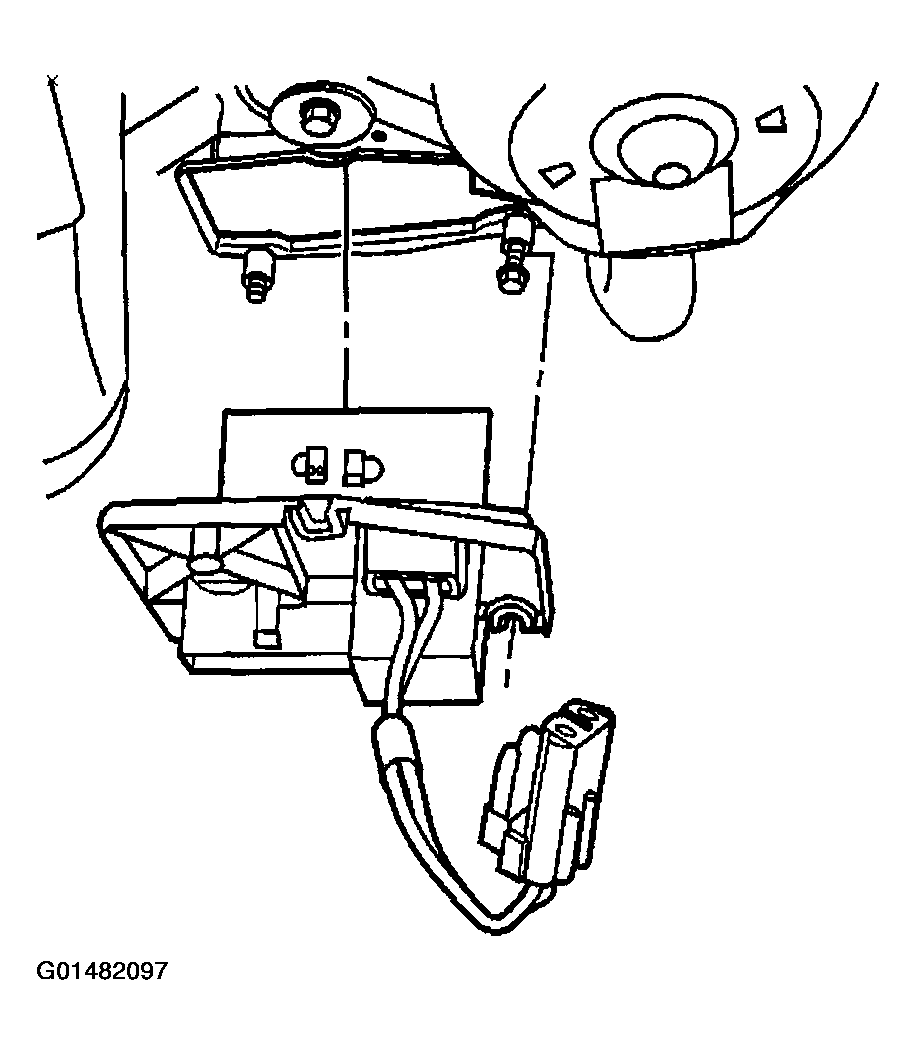

    Fig 1: Installing Blower Motor Resistor
    G01482097Courtesy of GENERAL MOTORS CORP.
  4. Connect the electrical connector to the blower motor.

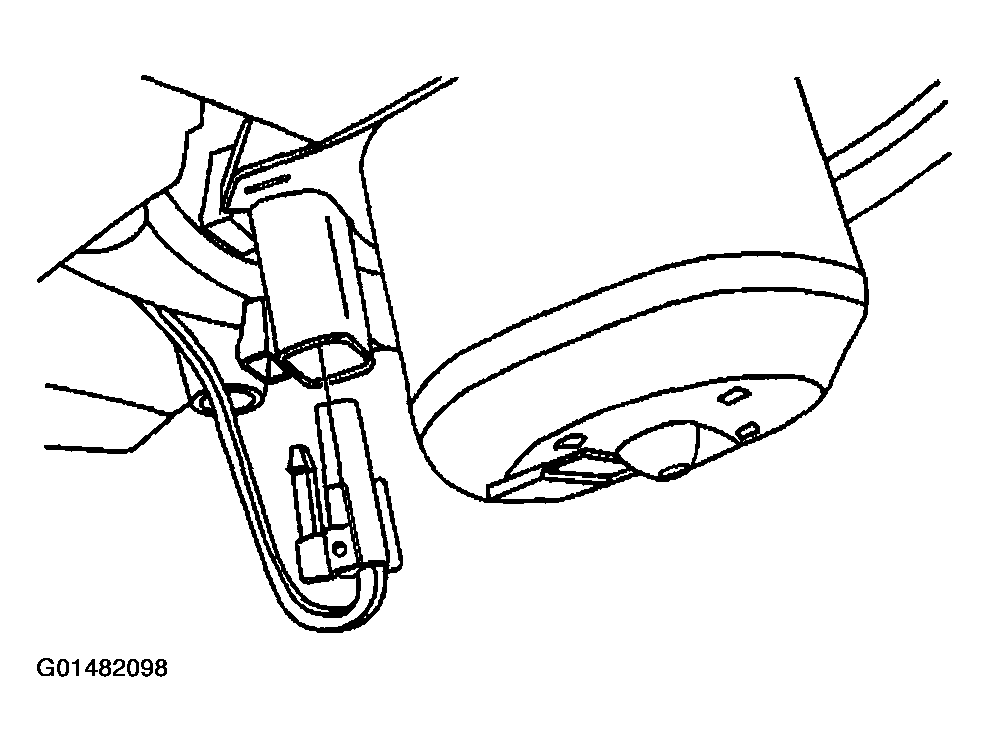

    Fig 2: Connecting Electrical Connector To Blower Motor
    G01482098Courtesy of GENERAL MOTORS CORP.
  5. Connect the electrical connector to the blower motor resistor.
  6. Install the right side instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT .

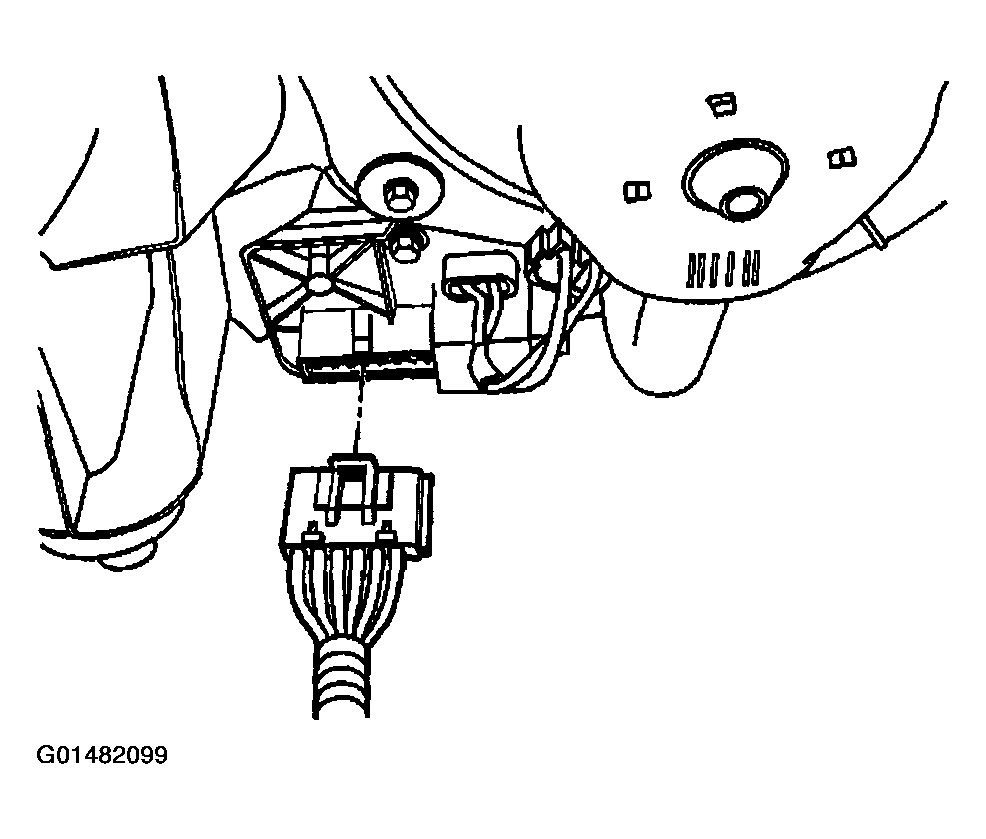

Fig 3: Connecting Electrical Connector To Blower Motor Resistor
G01482099Courtesy of GENERAL MOTORS CORP.
