Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the floor carpet. Refer to CARPET REPLACEMENT - FRONT .
  2. Remove the rear floor air outlet duct (1) from the holes in the floor reinforcement.
  3. Disconnect the rear floor air outlet duct from the heater core outlet cover.
  4. Remove the rear floor air outlet duct.

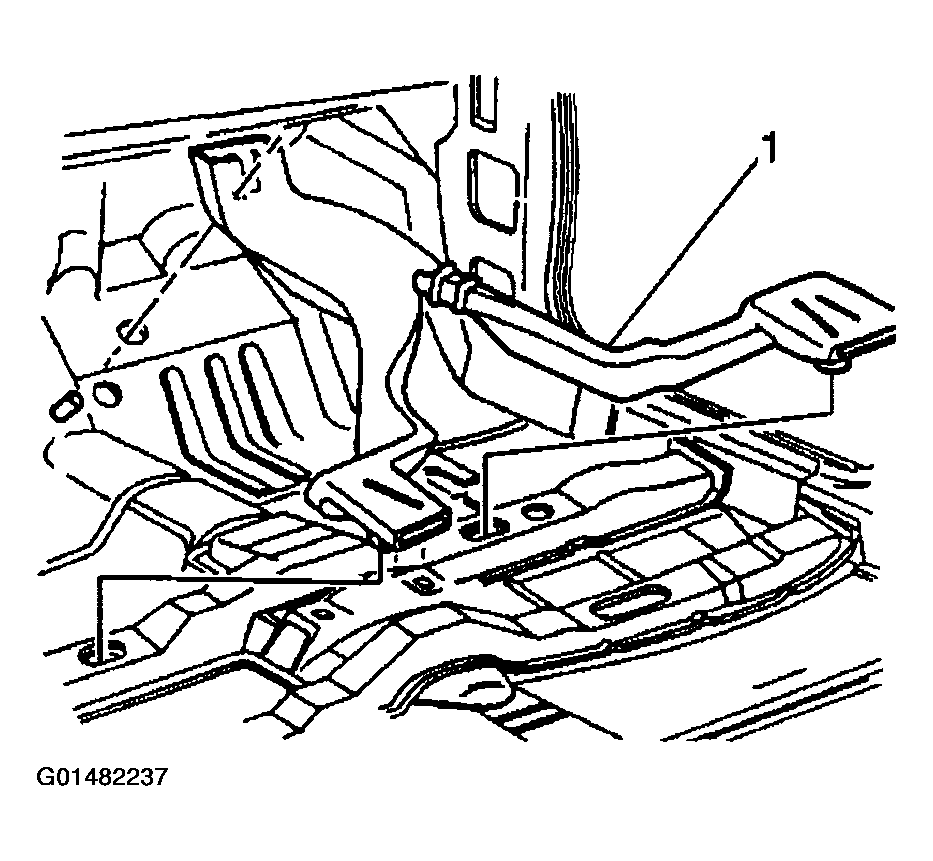

Fig 1: Removing Rear Floor Air Outlet Duct
G01482237Courtesy of GENERAL MOTORS CORP.
