Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel trim pad. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) .
  2. Remove the screw and the center air duct.

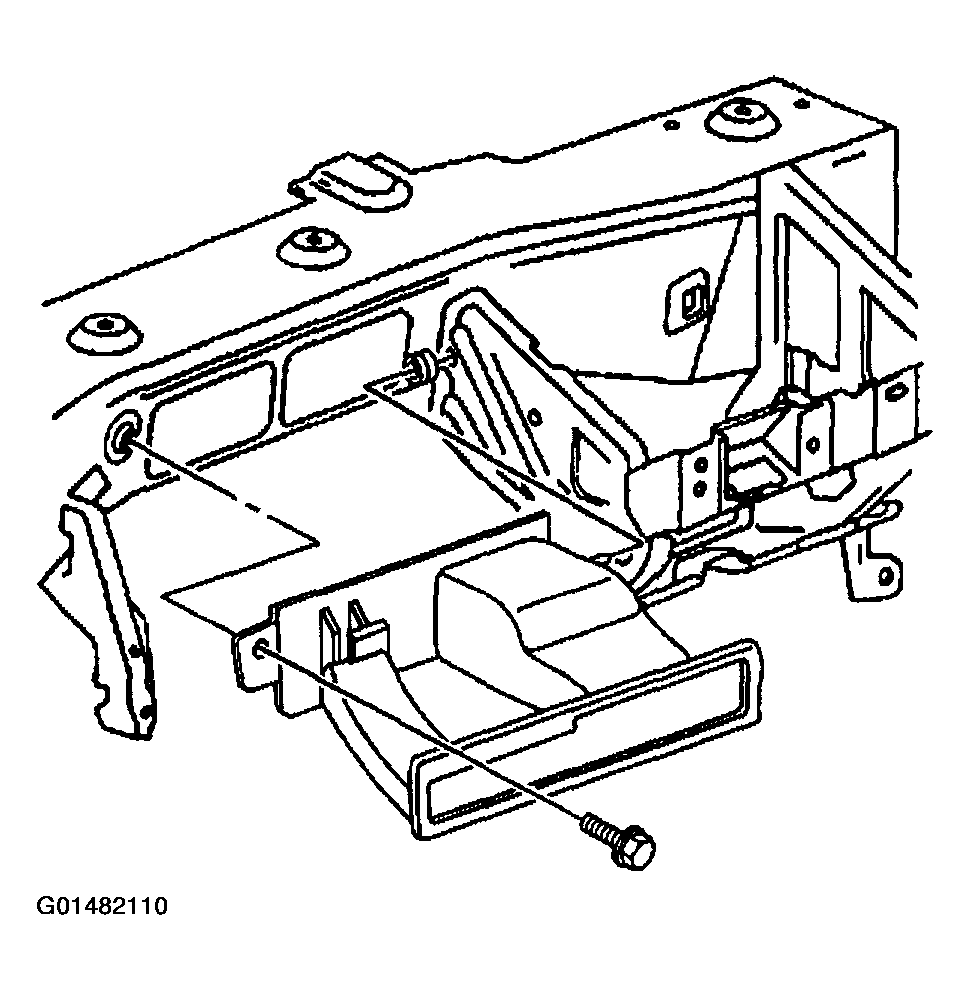

    Fig 1: Removing Screw & Center Air Duct
    G01482110Courtesy of GENERAL MOTORS CORP.
  3. Remove the screws and the side air ducts.

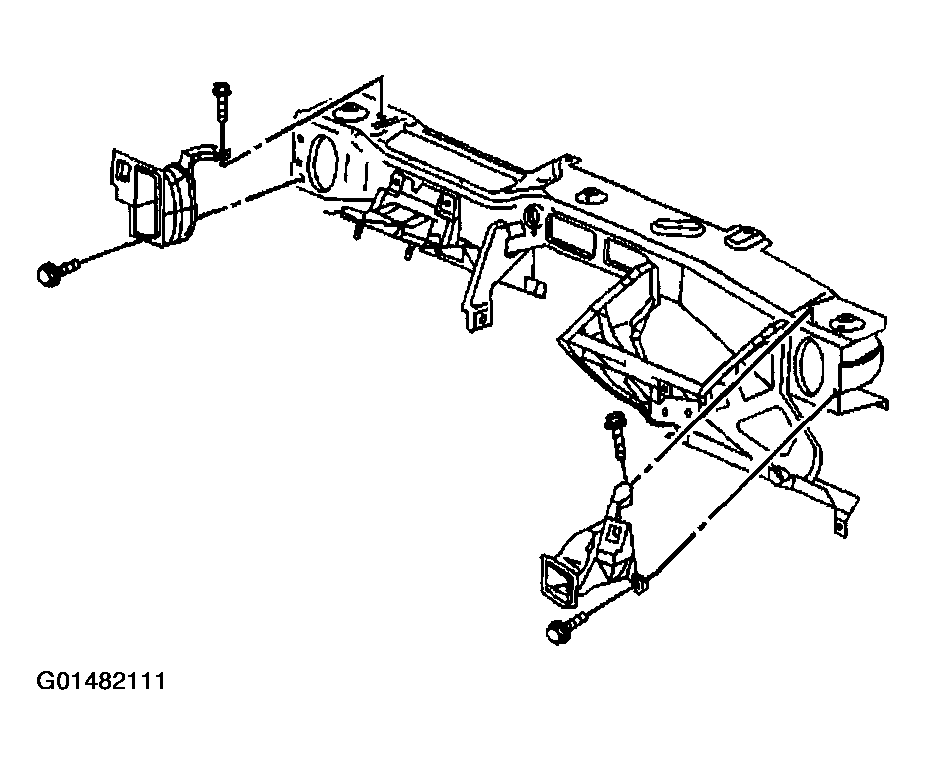

    Fig 2: Removing Screws & Side Air Ducts
    G01482111Courtesy of GENERAL MOTORS CORP.
