Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the center air distribution duct.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the mounting screw.

    Tighten

    Tighten the screw to 1.5 N.m (13 lb in).

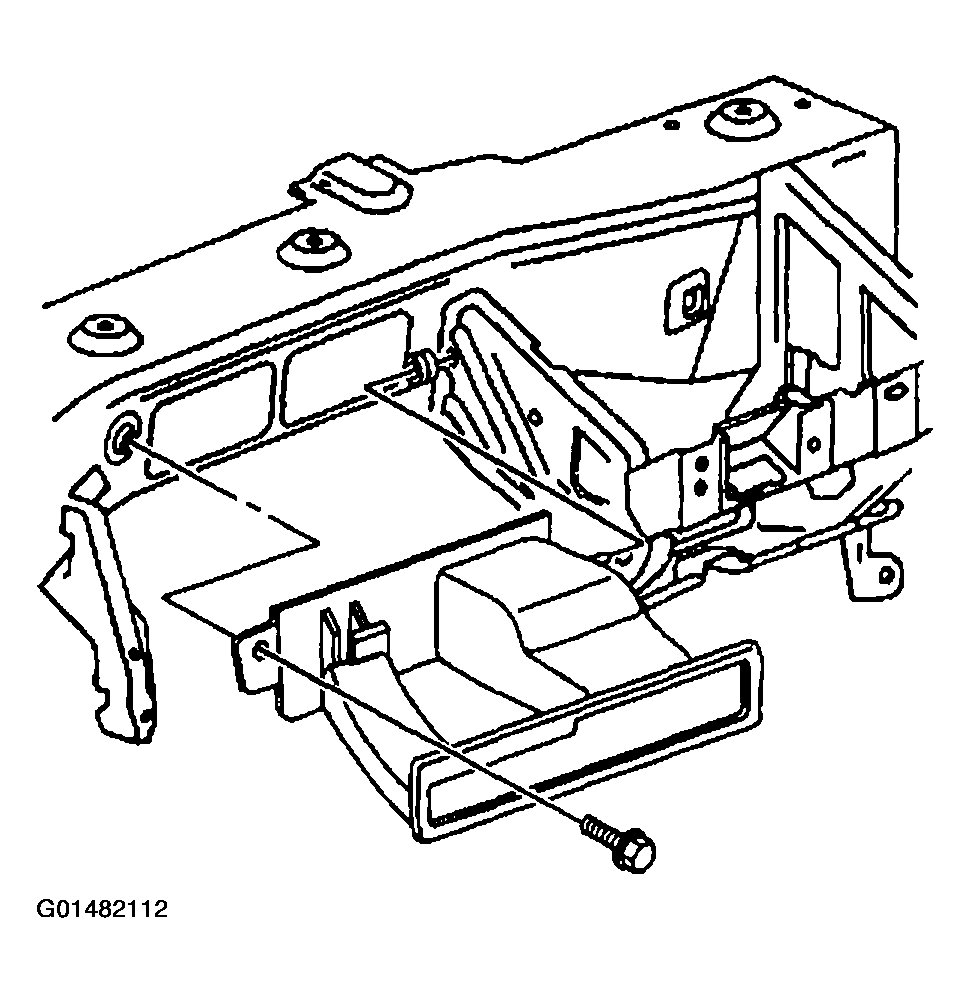

    Fig 1: Installing Center Air Distribution Duct
    G01482112Courtesy of GENERAL MOTORS CORP.
  3. Install the side air distribution ducts.
  4. Install the mounting screws.

    Tighten

    Tighten the screws to 1.5 N.m (13 lb in).

  5. Install the instrument panel. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) .

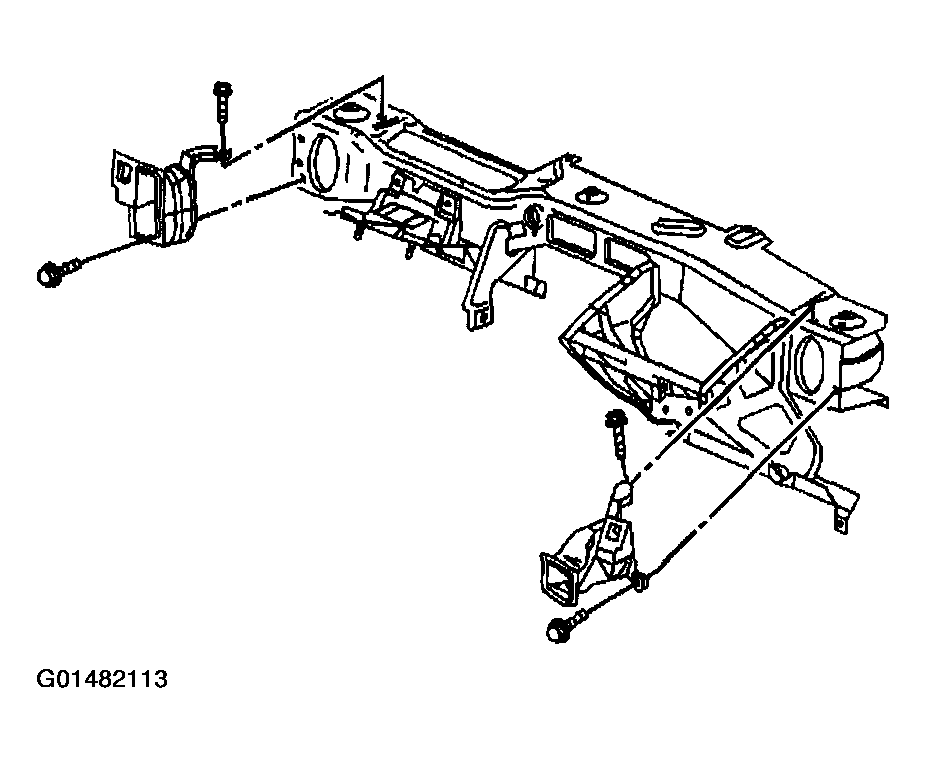

Fig 2: Installing Side Air Distribution Ducts
G01482113Courtesy of GENERAL MOTORS CORP.
