Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. If replacing the accumulator, add refrigerant oil to the accumulator. Refer to Refrigerant System Capacities  for system capacity information.
  2. Install the accumulator to the mounting bracket.

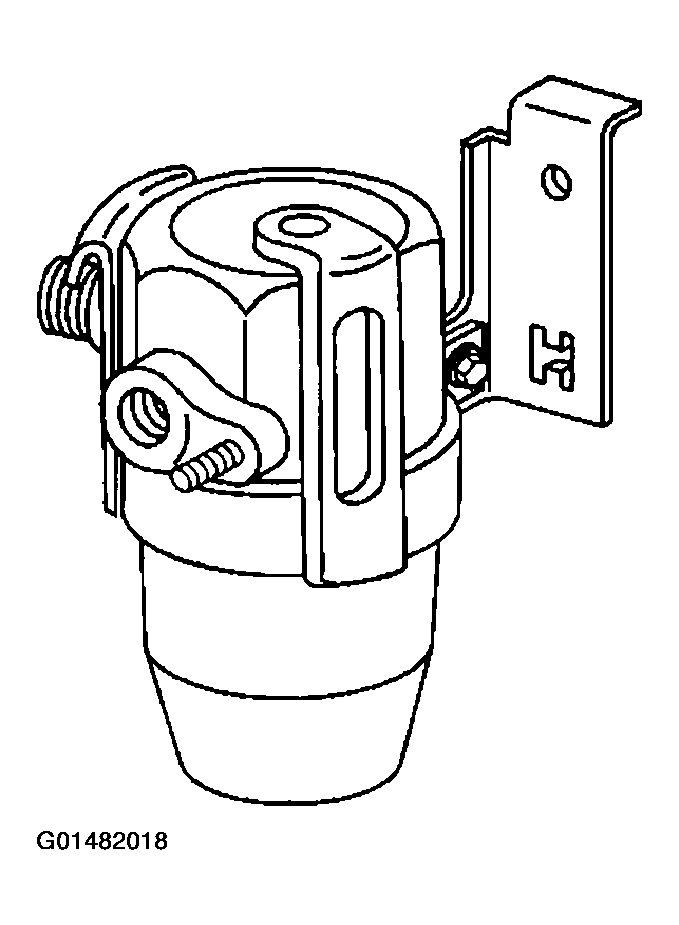

    Fig 1: Installing Accumulator
    G01482018Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  3. Tighten the accumulator bracket bolt clamp.

    Tighten

    Tighten the bolt to 4 N.m (36 lb in).

  4. Install the accumulator.
  5. Install the accumulator bracket retaining bolt.

    Tighten

    Tighten the bolt to 4 N.m (36 lb in).

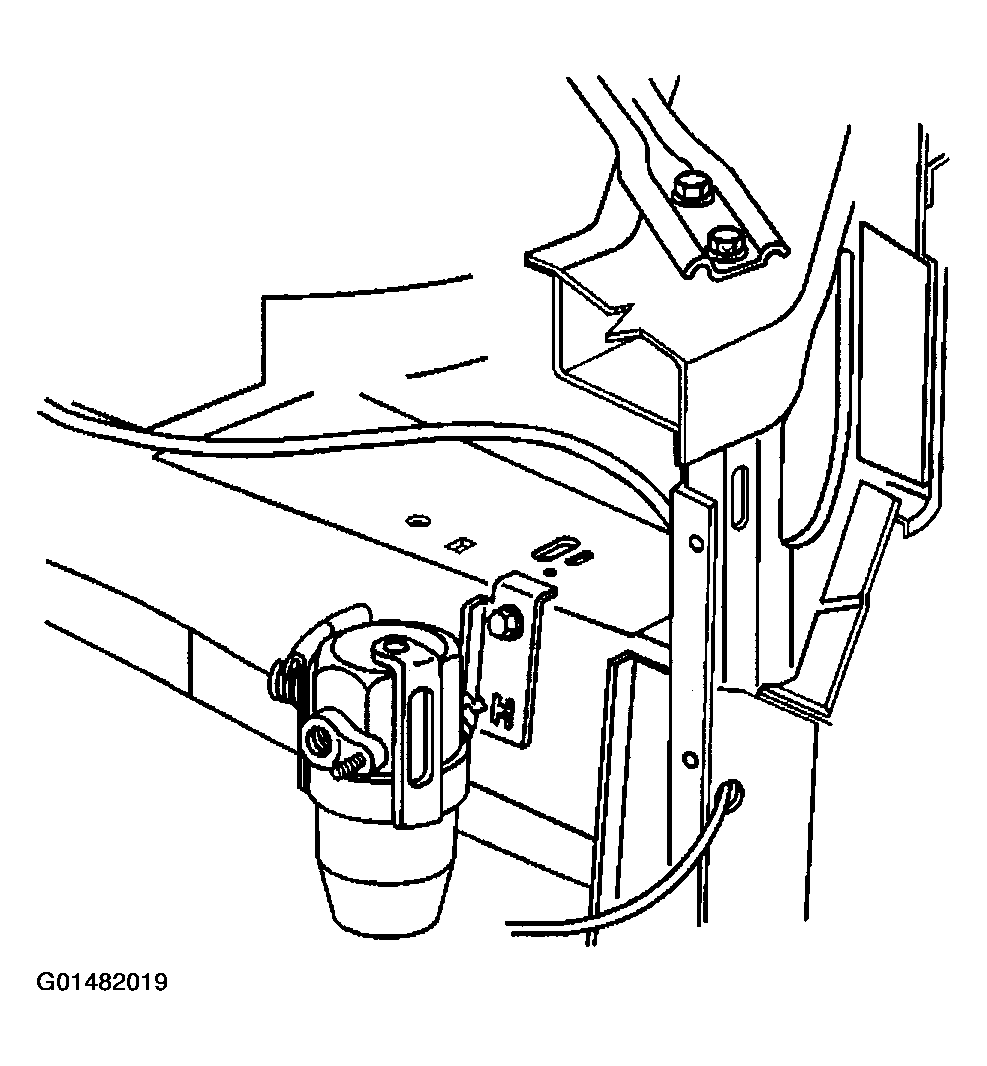

    Fig 2: Installing Accumulator Bracket Retaining Bolt
    G01482019Courtesy of GENERAL MOTORS CORP.
  6. Install the new O-ring seals onto the A/C compressor hose and the suction hose. Refer to O-Ring Replacement  .
  7. Connect the suction hose onto the accumulator.
  8. Tighten the suction hose nut (2).

    Tighten

    Tighten the nut to 47 N.m (35 lb ft).

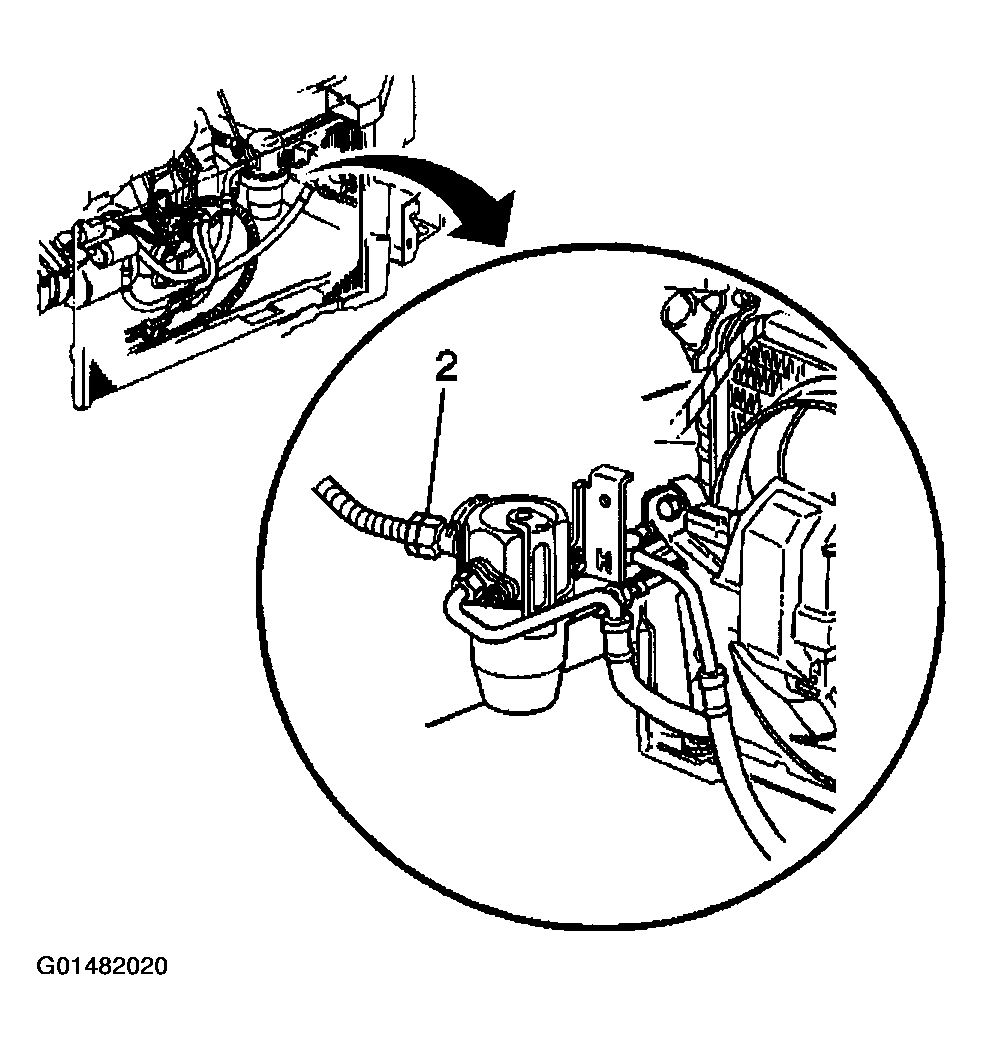

    Fig 3: Tightening Suction Hose Nut
    G01482020Courtesy of GENERAL MOTORS CORP.
  9. Connect the A/C compressor hose to the accumulator.
  10. Install the A/C compressor hose nut (1) onto the accumulator.

    Tighten

    Tighten the nut to 16 N.m (12 lb ft).

  11. Install the air cleaner assembly.
  12. Evacuate and recharge the A/C system. Refer to Refrigerant Recovery And Recharging  .
  13. Leak test the fittings of the component using J 39400-A  .
Fig 4: Installing A/C Compressor Hose Nut
G01482021Courtesy of GENERAL MOTORS CORP.
