Heating Performance Diagnostic

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

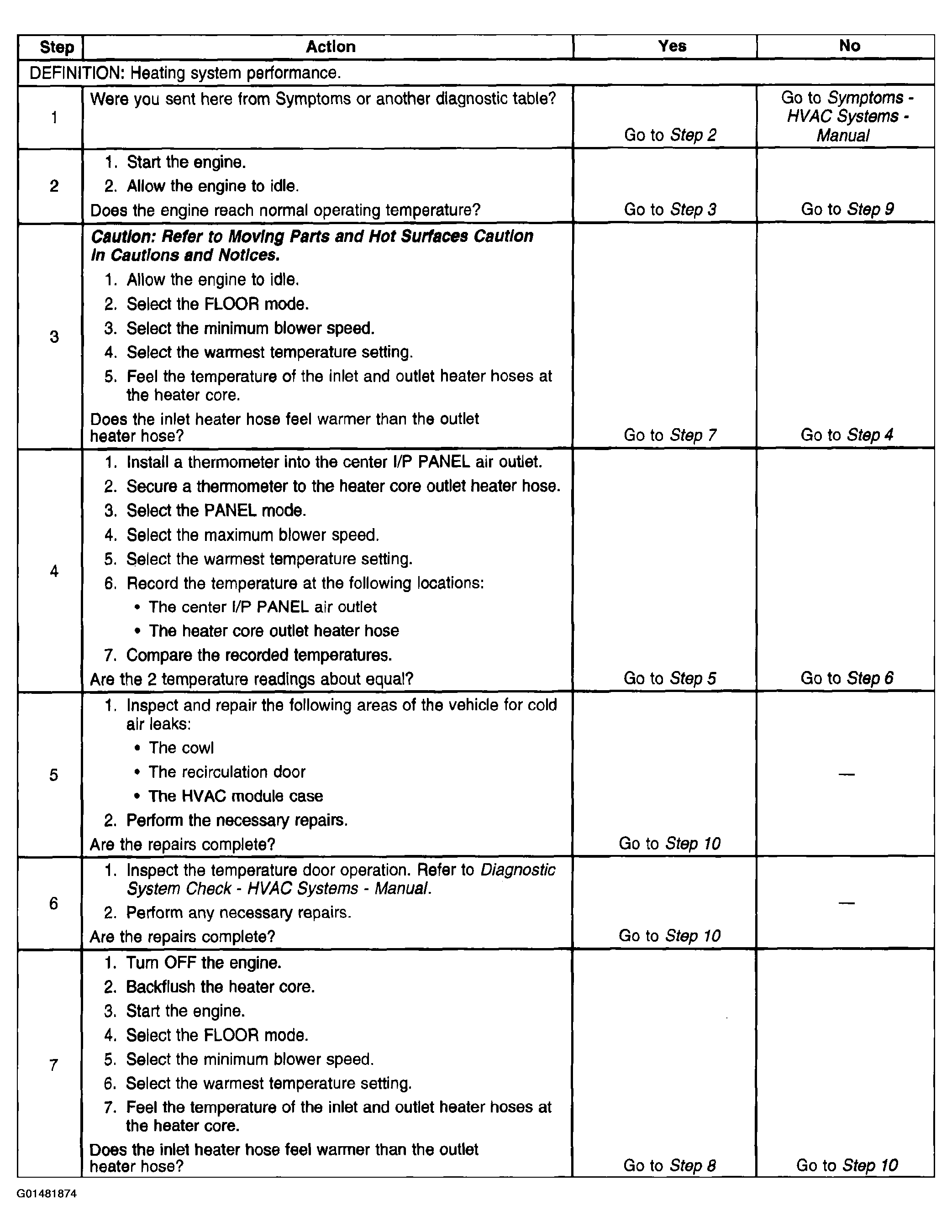

Fig 1: Heating Performance Diagnostic (Steps 1 - 7)
G01481874Courtesy of GENERAL MOTORS CORP.

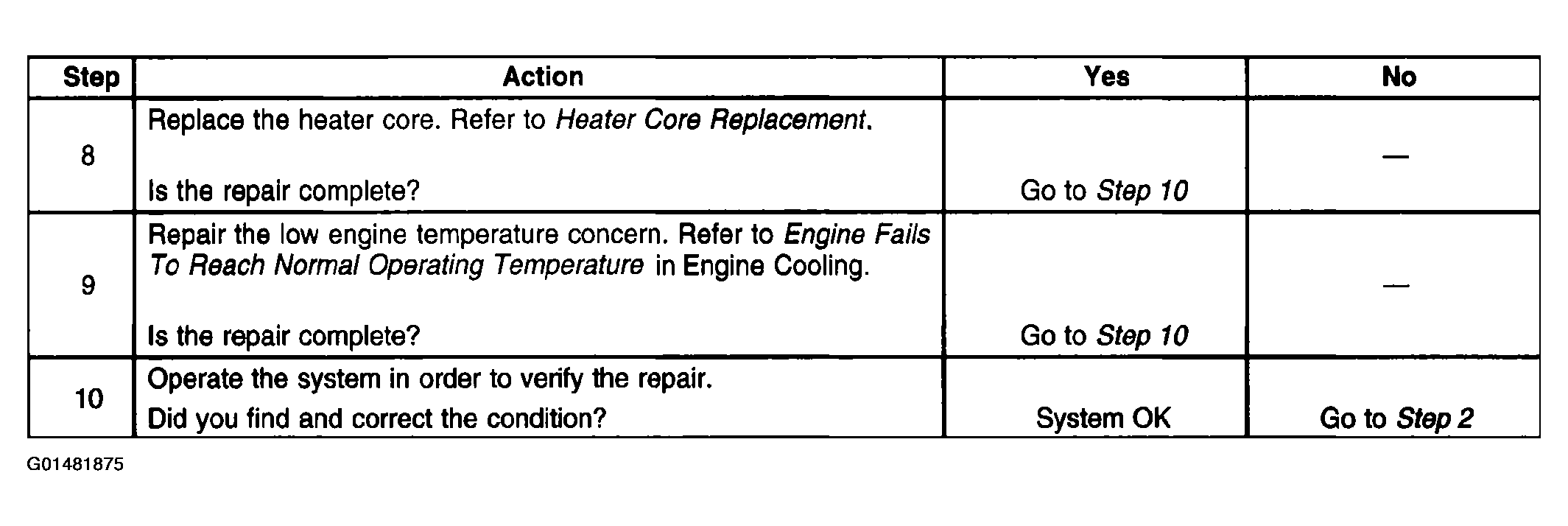

Fig 2: Heating Performance Diagnostic (Steps 8 - 10)
G01481875Courtesy of GENERAL MOTORS CORP.
