Defrosting Insufficient

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

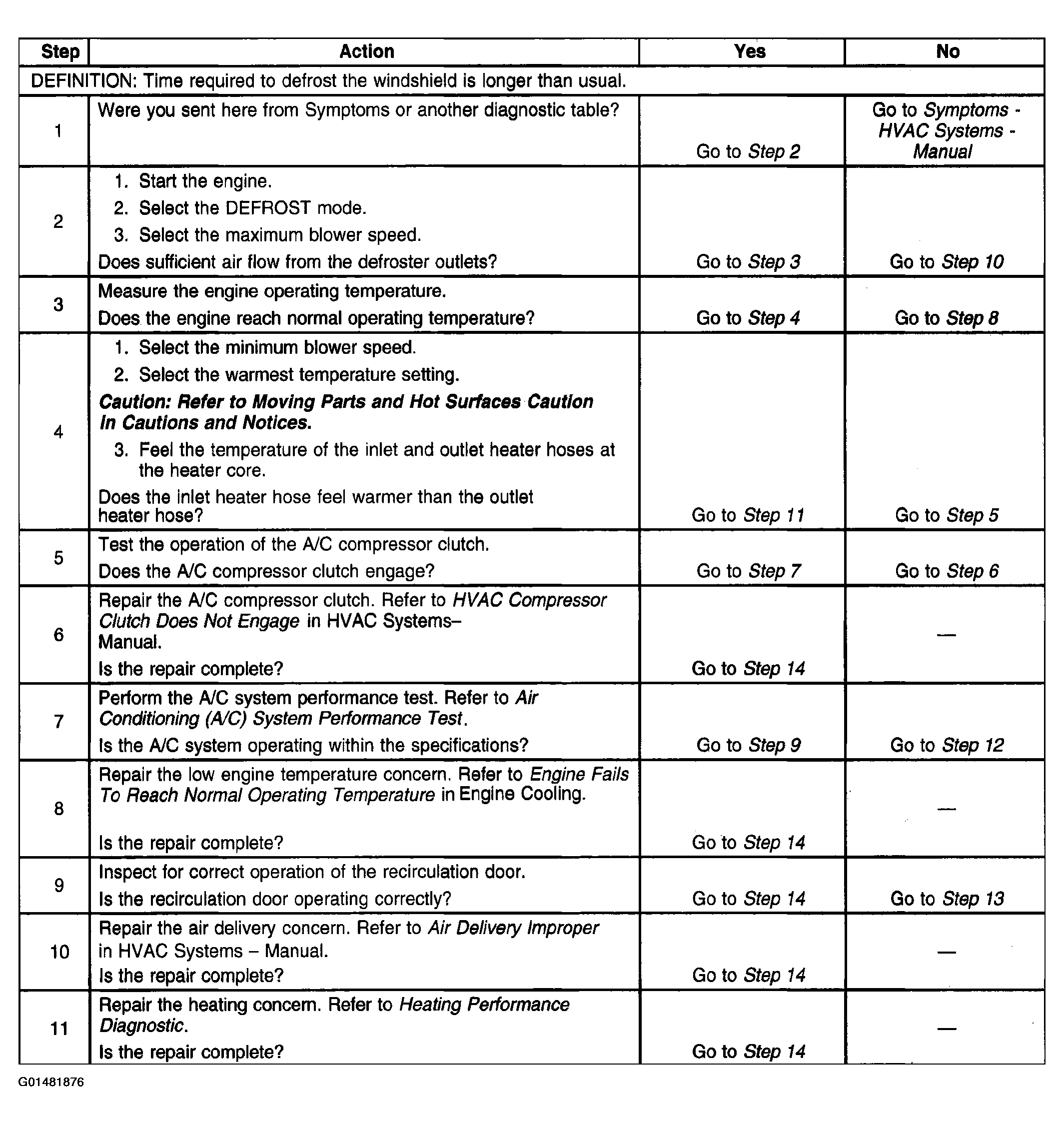

Fig 1: Defrosting Insufficient (Steps 1 - 11)
G01481876Courtesy of GENERAL MOTORS CORP.

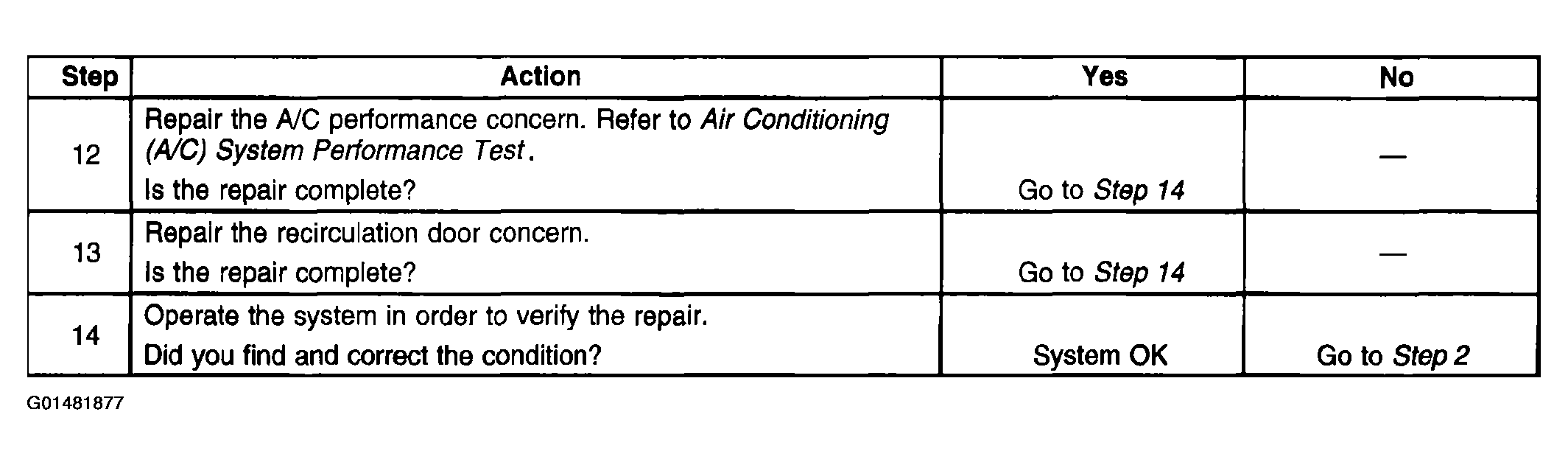

Fig 2: Defrosting Insufficient (Steps 12 - 14)
G01481877Courtesy of GENERAL MOTORS CORP.
