Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
  2. Remove the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement (L36)  or Fuel Injector Sight Shield Replacement (L67) .
  3. Remove the air cleaner intake duct. Refer to AIR CLEANER INTAKE DUCT .
  4. Remove the drive belt tensioner. Refer to Drive Belt Tensioner Replacement (L36)  or Drive Belt Tensioner Replacement (L67) .
  5. Remove the right and the left engine mount struts. Refer to Engine Mount Strut Replacement - Right  and Engine Mount Strut Replacement - Left .
  6. Rotate the engine for access. Refer to Rotating the Engine for Service Access .
  7. Remove the right spark plug wires from the right spark plugs.
  8. Remove the EVAP purge solenoid and the brace. Refer to EVAP CANISTER PURGE SOLENOID .
  9. Remove the right engine lift bracket bolt and the nut from the engine lift bracket.
  10. Remove the right engine lift bracket from the exhaust manifold.

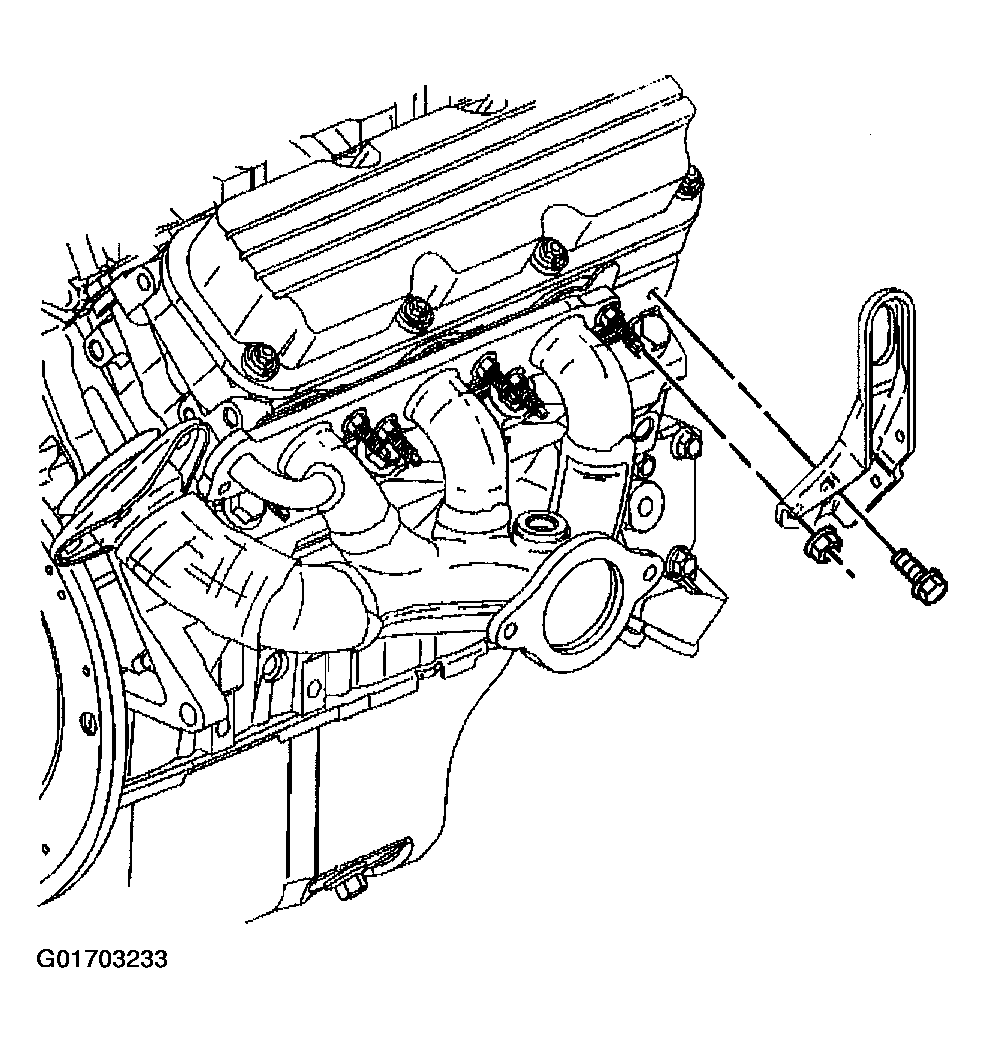

    Fig 1: Right Engine Lift Bracket
    G01703233Courtesy of GENERAL MOTORS CORP.
  11. Remove the fuel injector sight shield bracket nuts.
  12. Remove the fuel injector sight shield bracket.

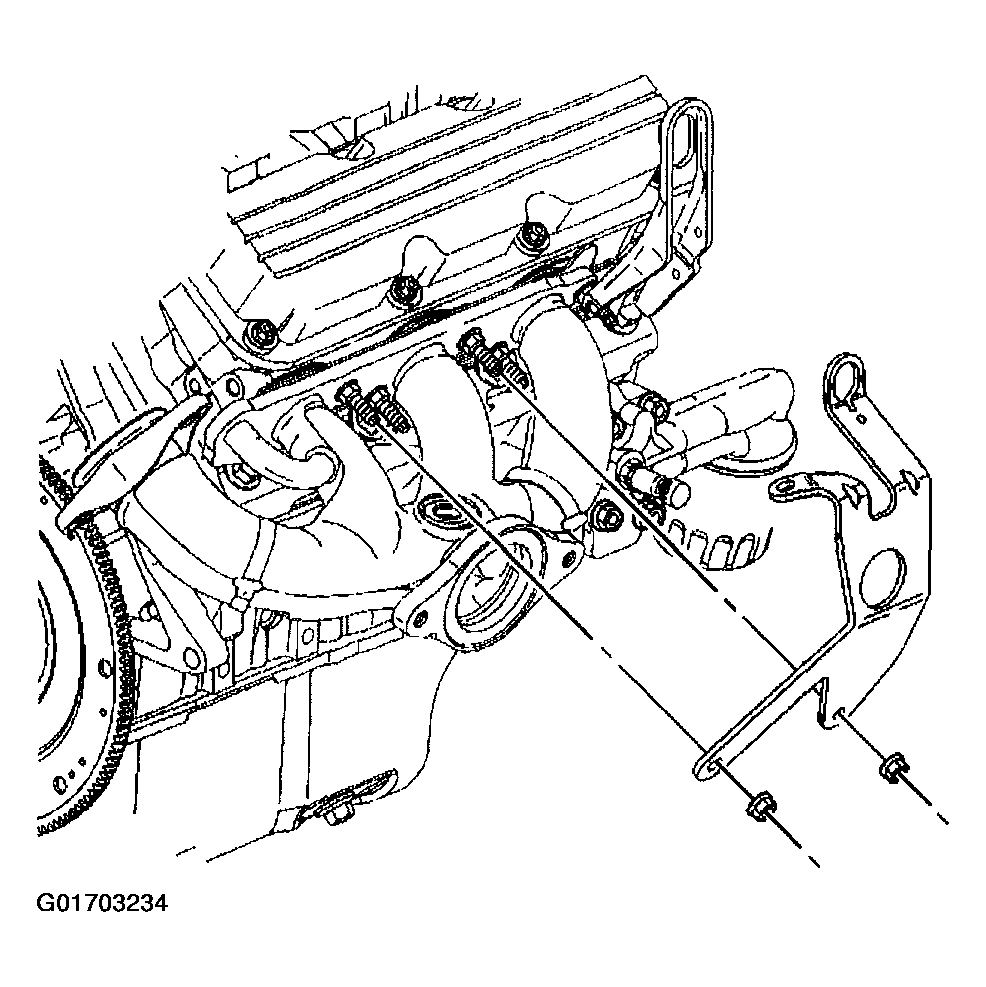

    Fig 2: Fuel Injector Sight Shield Bracket
    G01703234Courtesy of GENERAL MOTORS CORP.
  13. Remove the right valve rocker arm cover bolts.
    IMPORTANT: If the valve rocker arm cover adheres to the cylinder head, remove the valve rocker arm cover by bumping the end of the valve rocker arm cover with the palm of your hand or a soft rubber mallet.
  14. Remove the right valve rocker arm cover.
  15. Remove the right valve rocker arm cover gasket.
  16. Clean the valve rocker arm cover mating surfaces.
  17. Clean the valve rocker arm cover bolts of all thread locking adhesive.

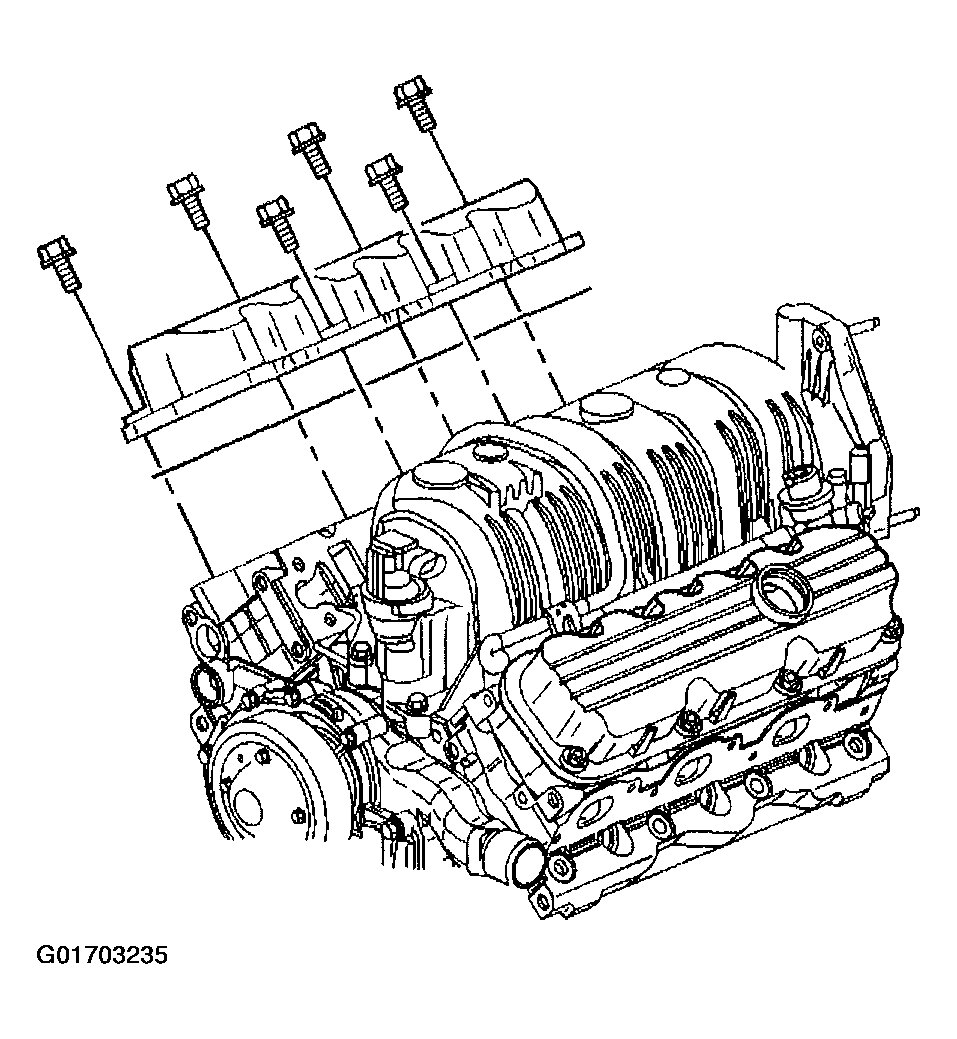

    Fig 3: Right Valve Rocker Arm Cover
    G01703235Courtesy of GENERAL MOTORS CORP.
