Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the console. Refer to CONSOLE REPLACEMENT .
  2. Remove the IP accessory trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY .
  3. Remove the driver knee bolster trim panel. Refer to TRIM PANEL REPLACEMENT - KNEE BOLSTER .
  4. Release the ignition switch and hazard warning switch wiring harness retainers from the driver knee bolster bracket.

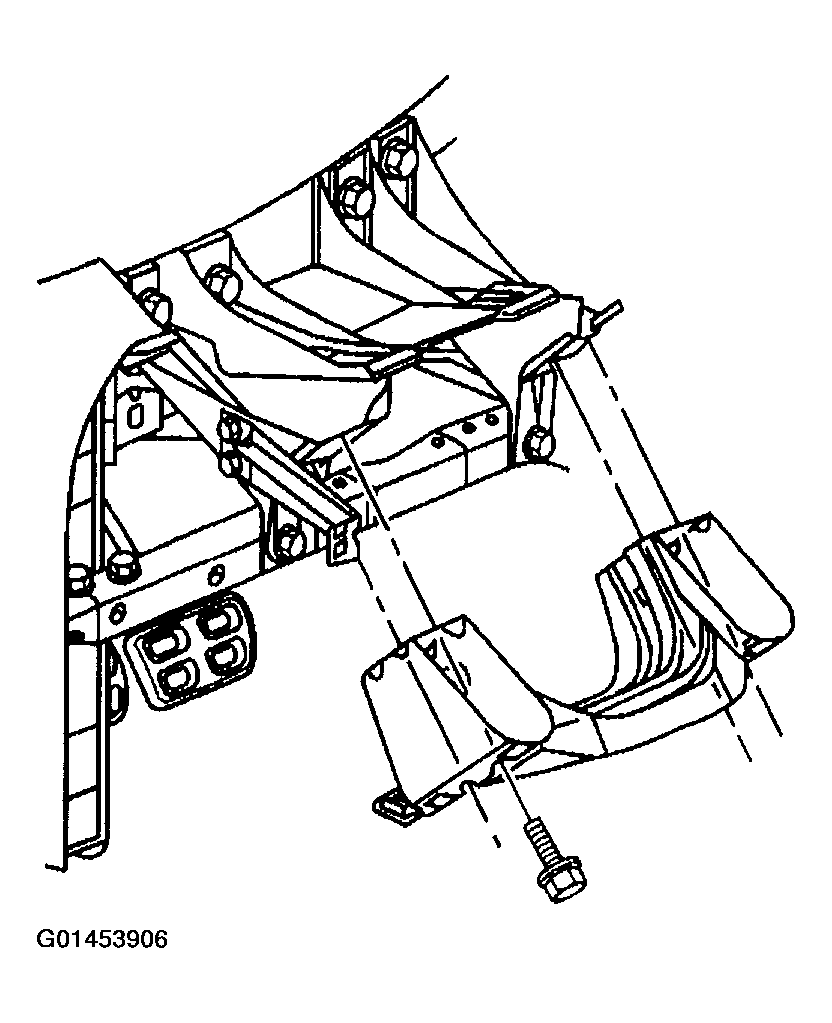

    Fig 1: Removing Driver Side Knee Bolster Bracket
    G01453906Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The following step must be performed to assure proper trim fits during installation.
  5. Mark the location of the driver knee bolster bracket. Refer to INSTRUMENT PANEL (I/P) DISASSEMBLY PRECAUTIONS .
  6. Remove the screws retaining the driver knee bolster bracket to the steering column bracket.
  7. Remove the driver knee bolster bracket.
