Instrument Panel (I/P) Disassembly Precautions

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: The instrument panel (I/P) bracket locations MUST be marked PRIOR to disassembly.

The original locations of the I/P brackets are required for proper trim fit. PRIOR to disassembling the I/P brackets, mark their locations using a paint stick, grease pencil, or other suitable method. The following is a list of the I/P brackets which should be marked and the recommended locations for marking them:

The steering column bracket (1):
Mark the bracket (1) in relation to the I/P upper and lower support beams.

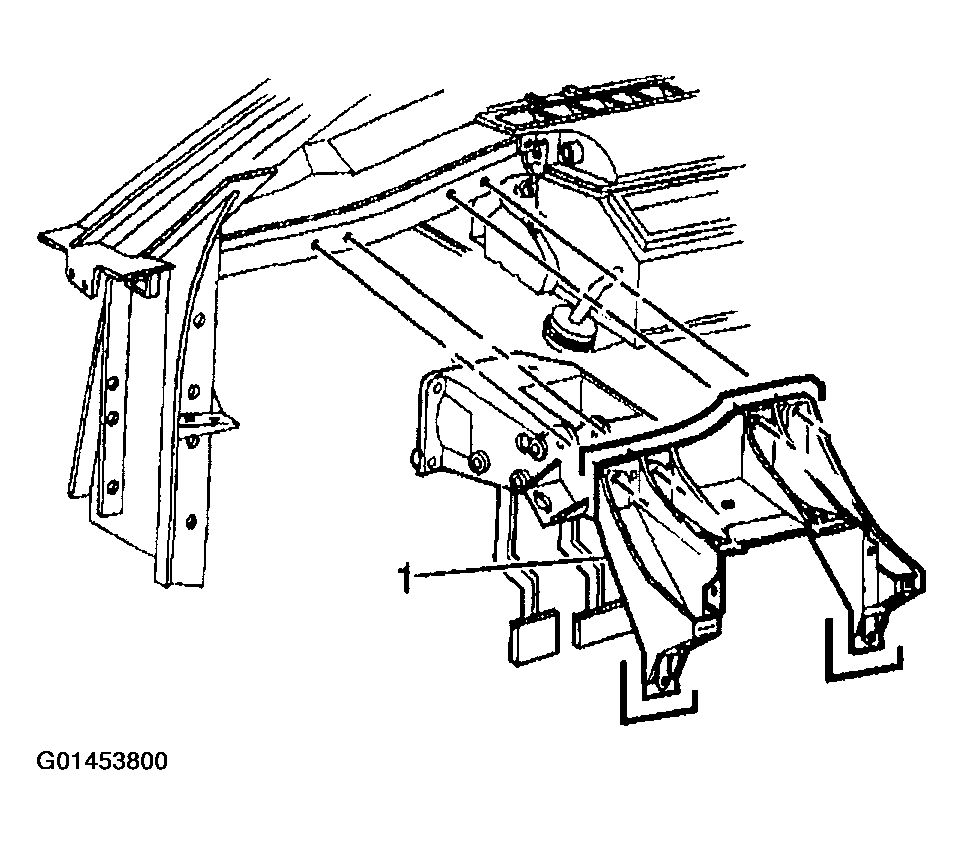

Fig 1: Locating Steering Column Bracket
Courtesy of GENERAL MOTORS CORP.
The passenger SIR bracket (2):
Mark the bracket (2) in relation to the I/P upper and lower support beams.

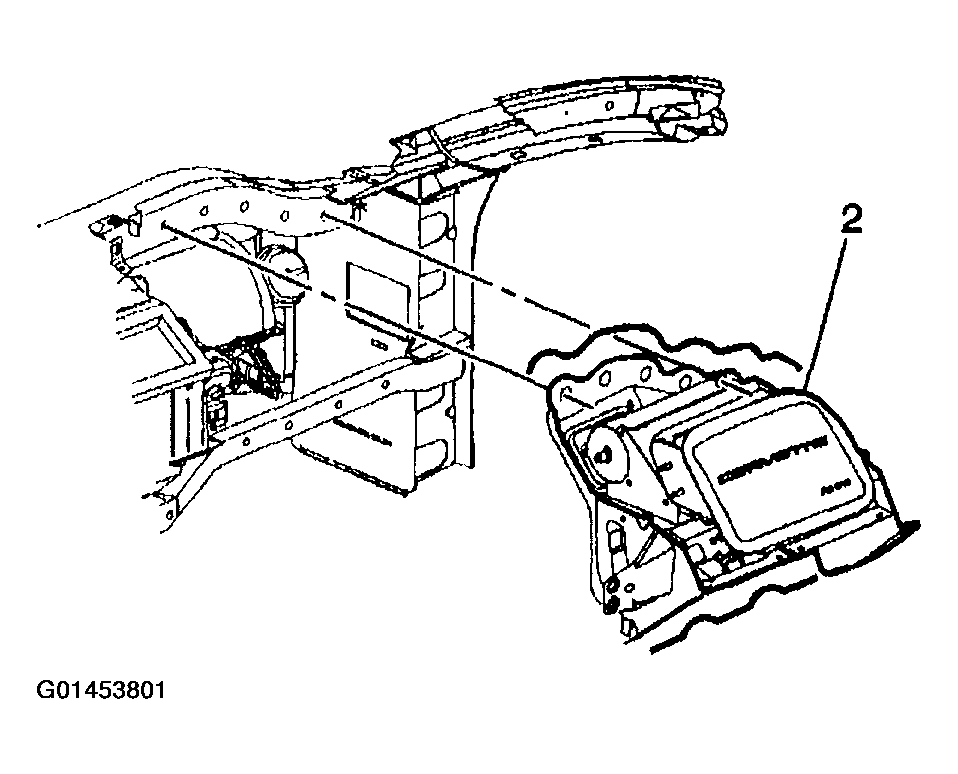

Fig 2: Locating Passenger SIR Bracket
Courtesy of GENERAL MOTORS CORP.
The I/P center support bracket (3), LH side:
Mark the bracket (3), LH side, in relation to the I/P lower support beam and the driveline tunnel; mark the ignition switch housing bracket (7), connected to the I/P center support bracket (3), in relation to the steering column bracket.

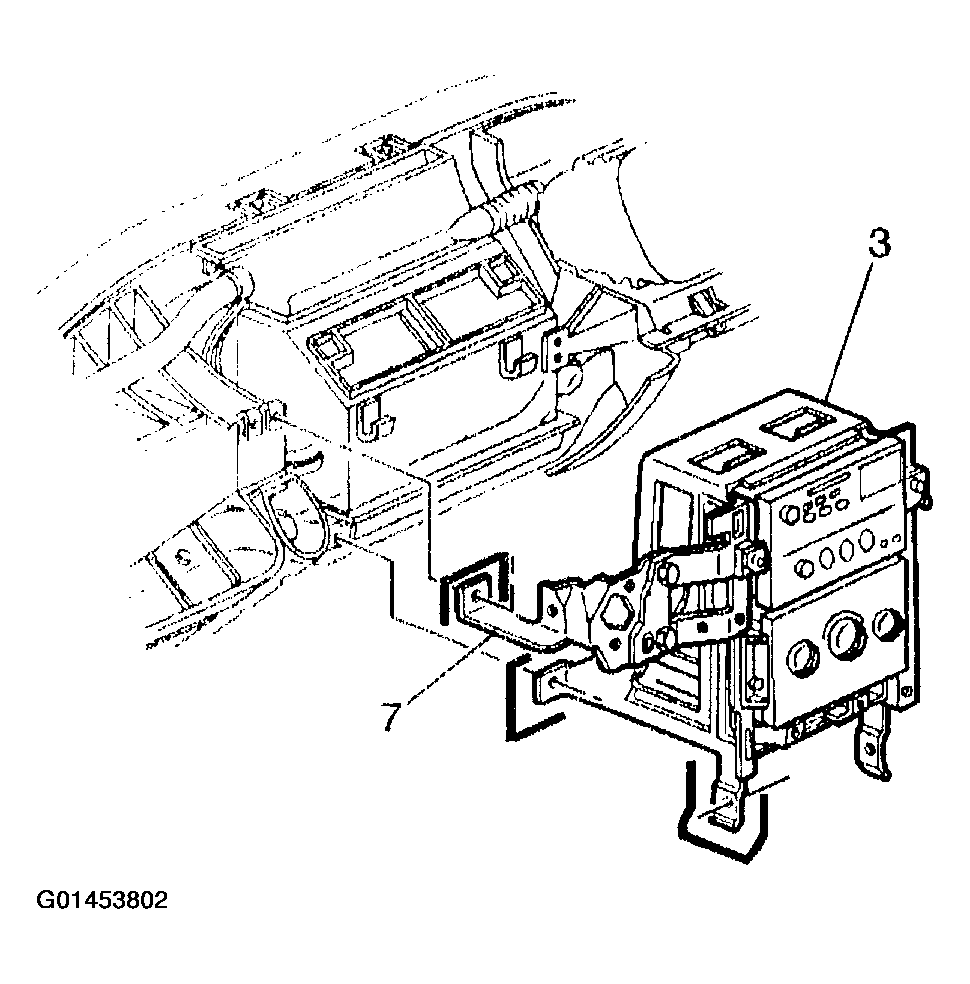

Fig 3: Locating Instrument Panel Center Support Bracket (LH Side)
Courtesy of GENERAL MOTORS CORP.
The I/P center support bracket (3), RH side:
Mark the bracket (3), RH side, in relation to the I/P lower support beam, the driveline tunnel, and the passenger knee bolster bracket (6).

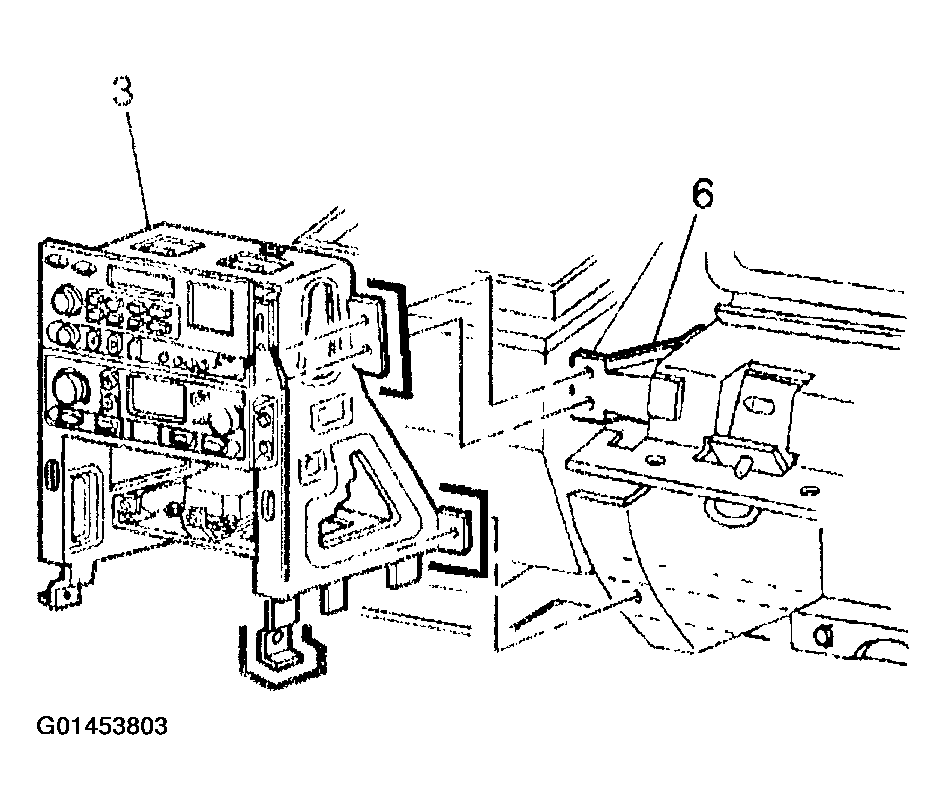

Fig 4: Locating Instrument Panel Center Support Bracket (RH Side)
Courtesy of GENERAL MOTORS CORP.
The driver knee bolster outer bracket (4):
Mark the bracket (4) in relation to the steering column bracket (1).

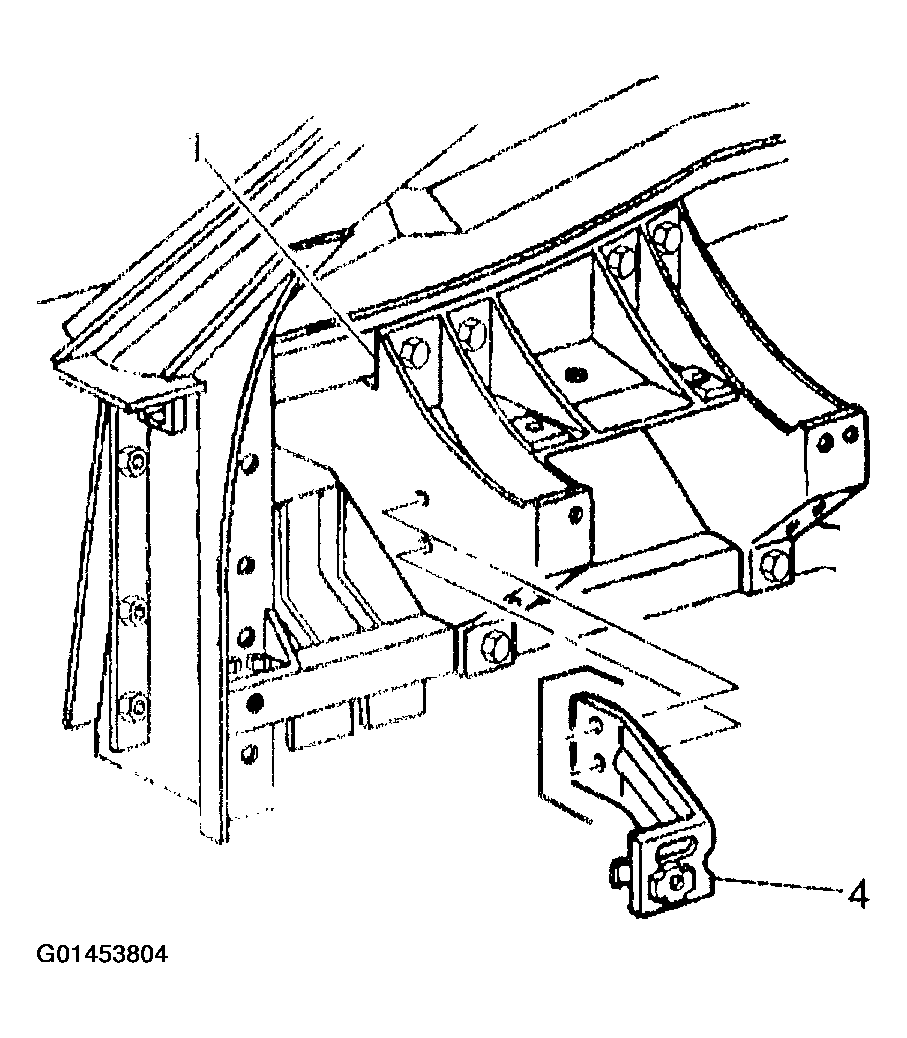

Fig 5: Locating Driver Knee Bolster Outer Bracket
Courtesy of GENERAL MOTORS CORP.
The driver knee bolster bracket (5):
Mark the bracket (5) in relation to the steering column bracket (1).

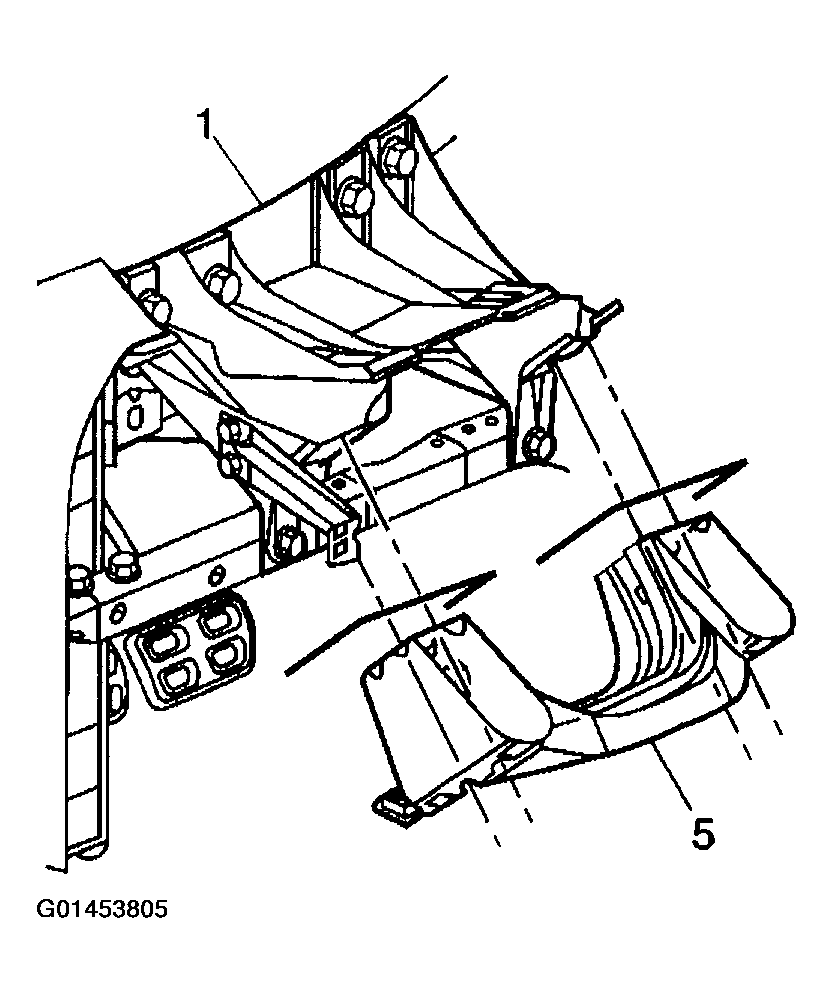

Fig 6: Locating Driver Knee Bolster Bracket
Courtesy of GENERAL MOTORS CORP.
The passenger knee bolster bracket (6):
Mark the bracket (6) in relation to the passenger SIR bracket (2).

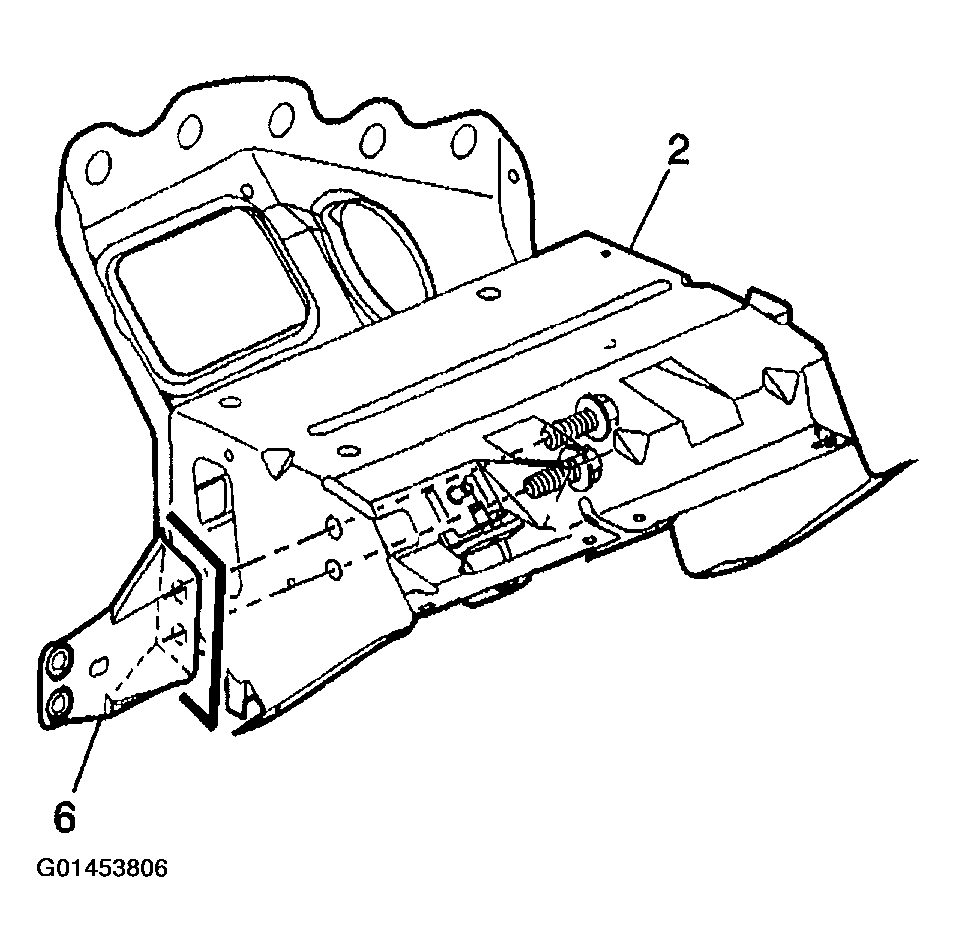

Fig 7: Locating Passenger Knee Bolster Bracket
Courtesy of GENERAL MOTORS CORP.
The ignition switch housing bracket (7):
Mark the bracket (7) in relation to the I/P center support bracket (3).

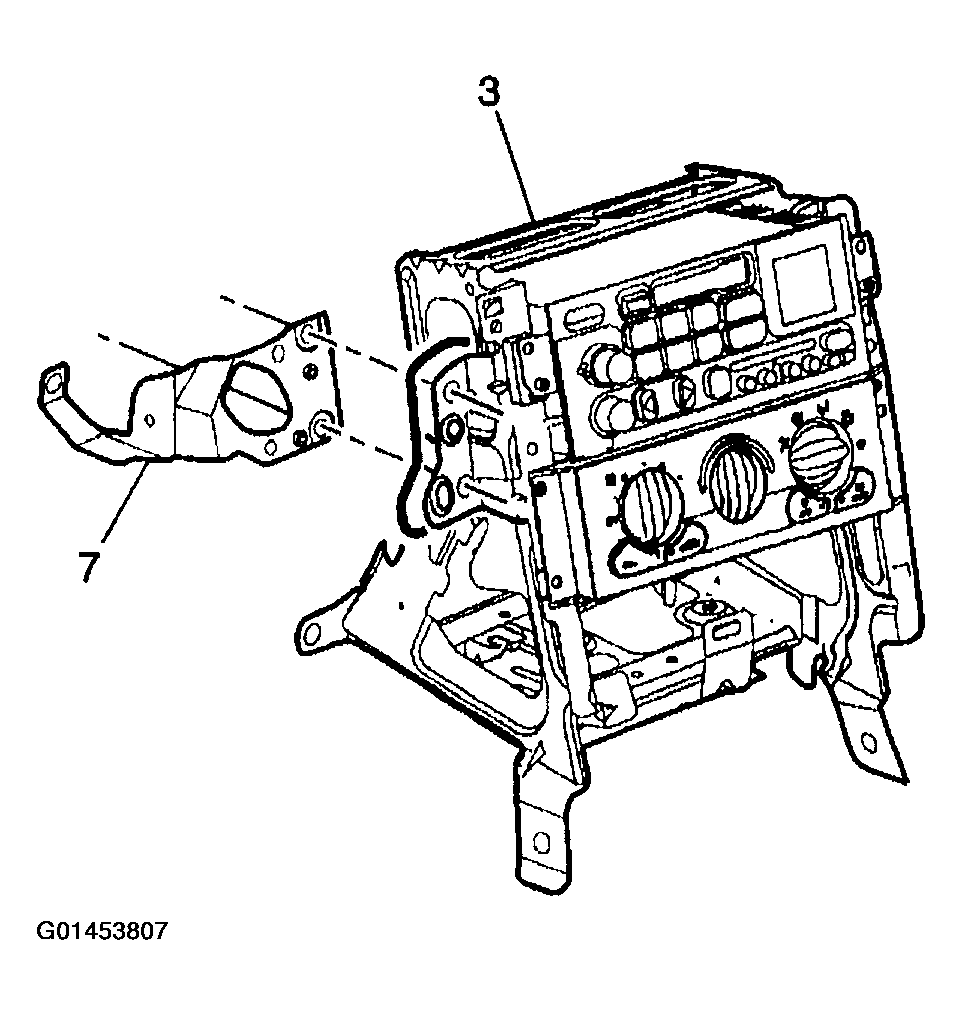

Fig 8: Locating Ignition Switch Housing Bracket
Courtesy of GENERAL MOTORS CORP.
