Fuel Tank: Installation

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Position and support fuel tank. Reconnect fuel tank sending unit and fuel pressure sensor harness connectors. Connect fuel and EVAP pipes to fuel tank. See FUEL LINE DISCONNECT FITTINGS .
Raise fuel tank and install fuel tank straps. Install fuel tank strap retaining bolts and tighten to specification. See TORQUE SPECIFICATIONS . To complete installation, reverse removal procedure.

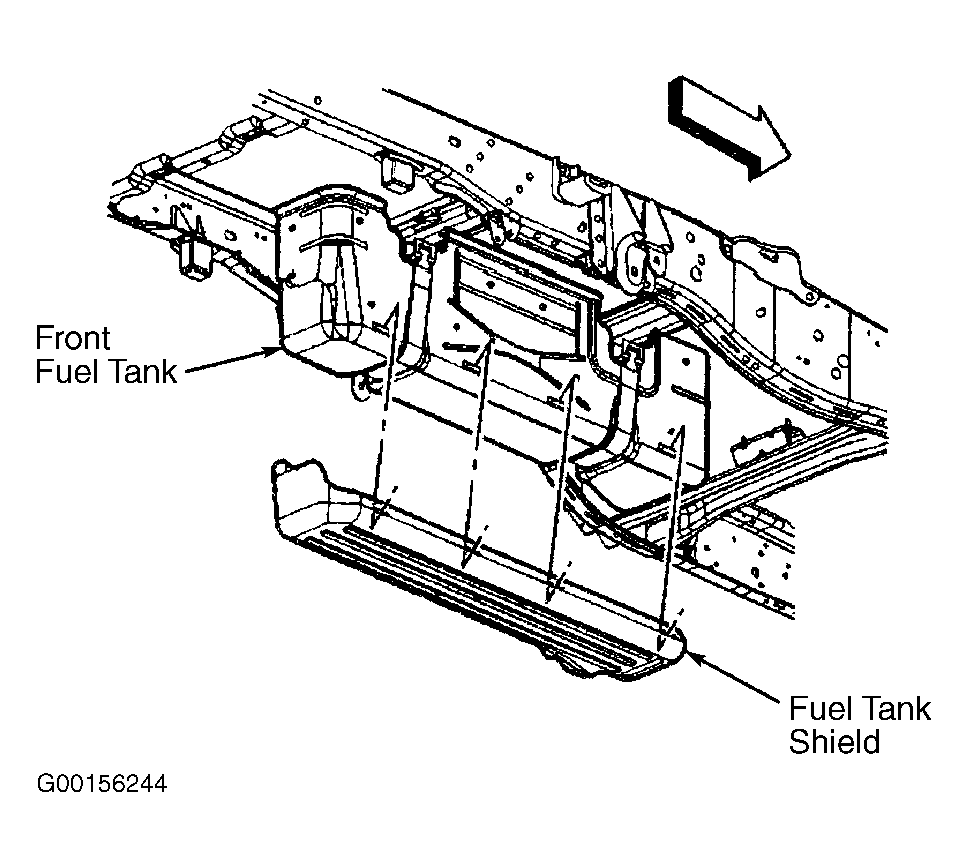

Fig 1: Removing/Installing Fuel Tank Shield (Cab & Chassis; Front)

Courtesy of GENERAL MOTORS CORP.

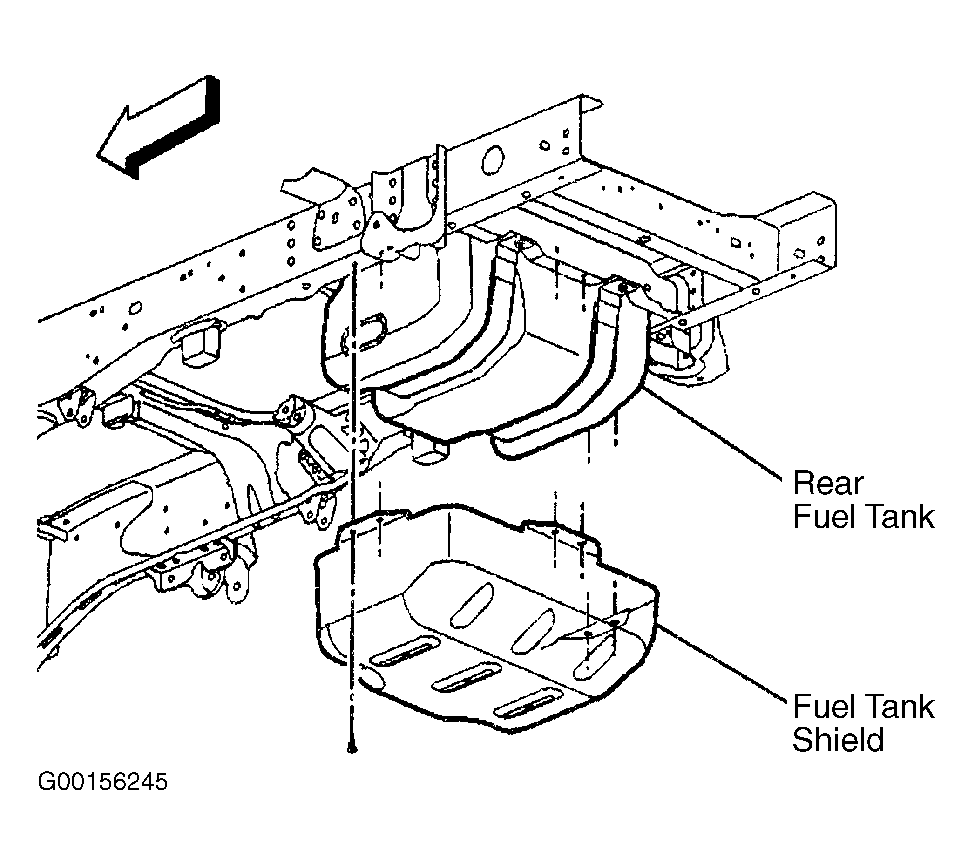

Fig 2: Removing/Installing Fuel Tank Shield (Cab & Chassis; Rear)

Courtesy of GENERAL MOTORS CORP.

Position and support fuel tank. Reconnect fuel tank sending unit and fuel pressure sensor harness connectors. Raise fuel tank and install fuel tank straps. Install fuel tank strap retaining bolts and tighten to specification. See TORQUE SPECIFICATIONS . To complete installation, reverse removal procedure.

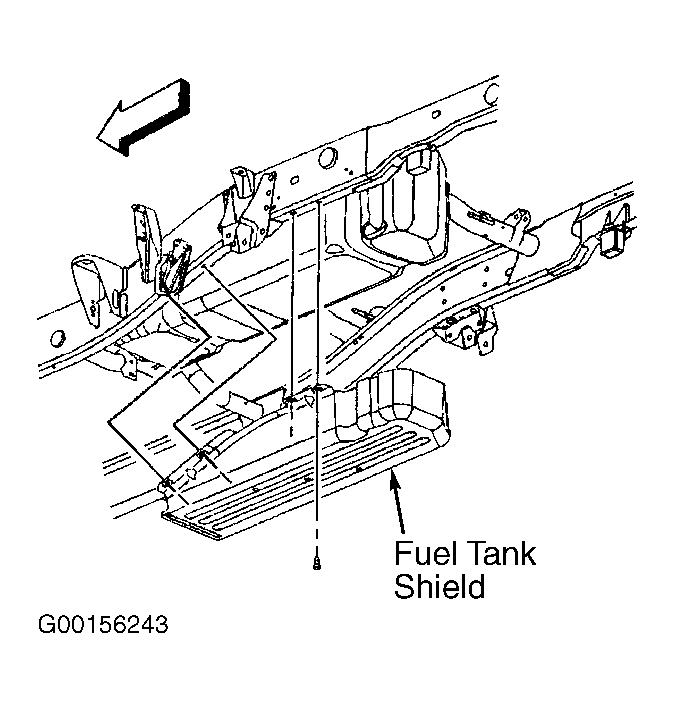

Fig 1: Removing/Installing Fuel Tank Shield (Sierra & Silverado)

Courtesy of GENERAL MOTORS CORP.
