Electronic Column Lock Module - Assemble - Off Vehicle (Standard Column)

Tools Required

J 41396  Park Lock Cable Pliers

1. Install the electronic lock module assembly (1) onto the steering column housing assembly.
2. Screw the 3 pan head tapping screws (2) into the electronic lock module assembly. Tighten the pan head tapping screws to 7 N.m (62 lb in).

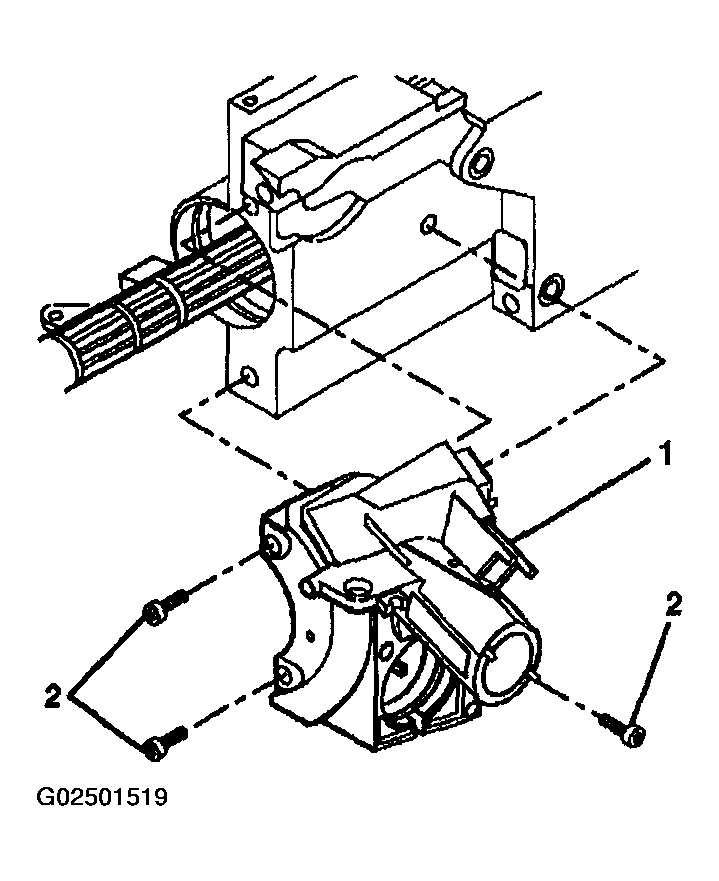

   Fig 1: Identifying Electronic Lock Module Assembly

   Courtesy of GENERAL MOTORS CORP.
3. Connect the park lock cable assembly (1).
   • Place the lock cylinder in the OFF-LOCK position.
   • Place the gear shift lever clevis into the PARK position.
   • Press the locking tab on the end of the park lock cable assembly (1) into the slot in the electronic lock module assembly.
4. Install the ignition and key alarm switch assembly. Refer to Ignition & Key Alarm Switch Assembly - Assemble - Off Vehicle  .
5. Install the upper steering column housing components. Refer to Turn Signal Cancel Cam & Bearing Thrust Washer - Assemble - Off Vehicle  .
6. Install the ignition lock cylinder. Refer to Ignition Lock Cylinder Replacement - On Vehicle  .
7. Enable the inflatable restraint steering wheel module. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
