Inflatable Restraint Steering Wheel Module Coil - Assemble - Off Vehicle

Align the block tooth on the race and upper shaft assembly (1) to the 12 o'clock position.

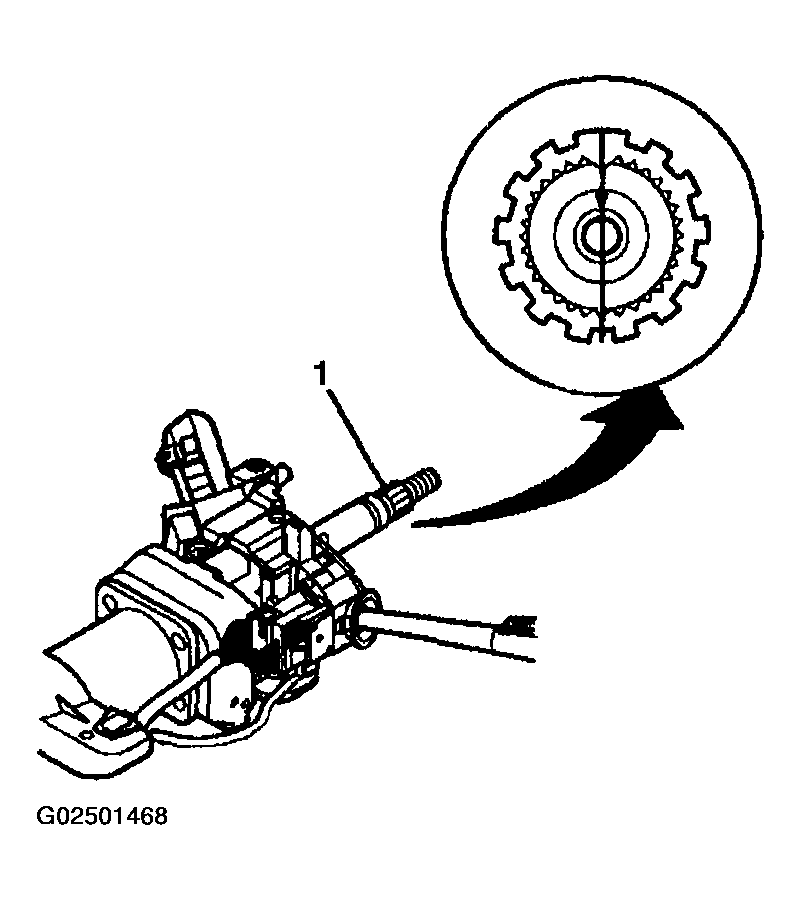

Fig 1: Aligning Block Tooth On Race & Upper Shaft Assembly

Courtesy of GENERAL MOTORS CORP.

Turn the key to the LOCK position and remove the key.
Install the wave washer (1) onto the steering shaft assembly.

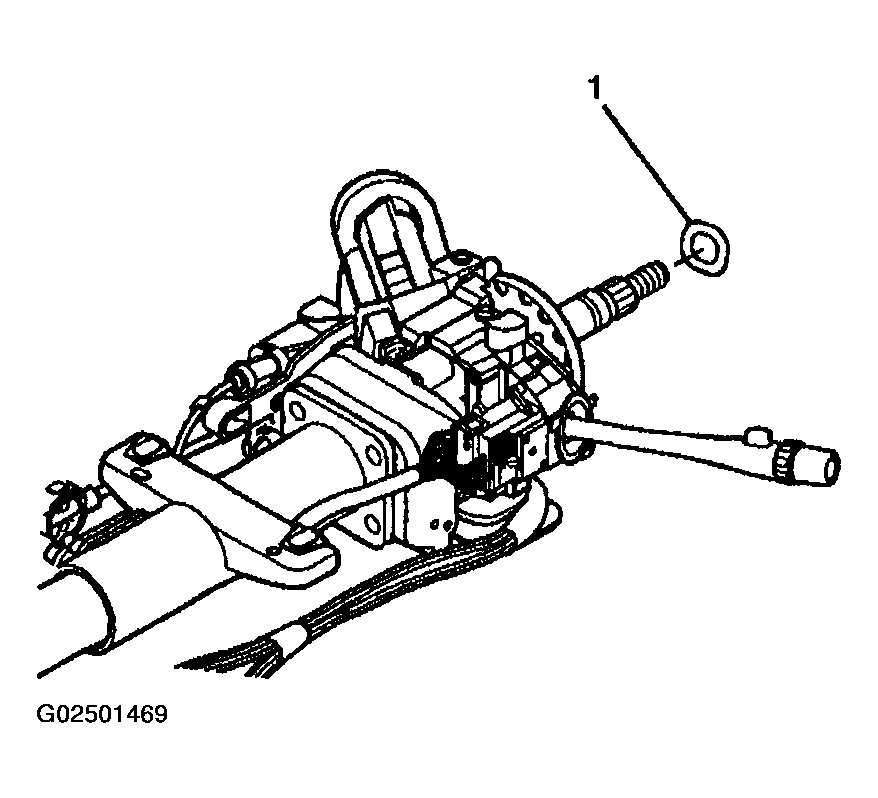

Fig 2: Identifying Wave Washer On Steering Shaft Assembly
Courtesy of GENERAL MOTORS CORP.

Important: A new inflatable restraint steering wheel module coil will be pre-centered. Do not remove the centering tab from the new inflatable restraint steering wheel module coil until the installation is complete.
If reusing the original inflatable restraint steering wheel module coil, refer to Inflatable Restraint Steering Wheel Module Coil - Assemble - Off Vehicle .
Align the inflatable restraint steering wheel module coil (4) with the horn tower on the turn signal cancel cam assembly (1).
Slide the inflatable restraint steering wheel module coil (4) onto the steering shaft assembly (2).
Firmly seat the retaining ring (3) into the groove on the steering shaft assembly (2).
Remove and discard the centering tab from the new inflatable restraint steering wheel module coil (4).

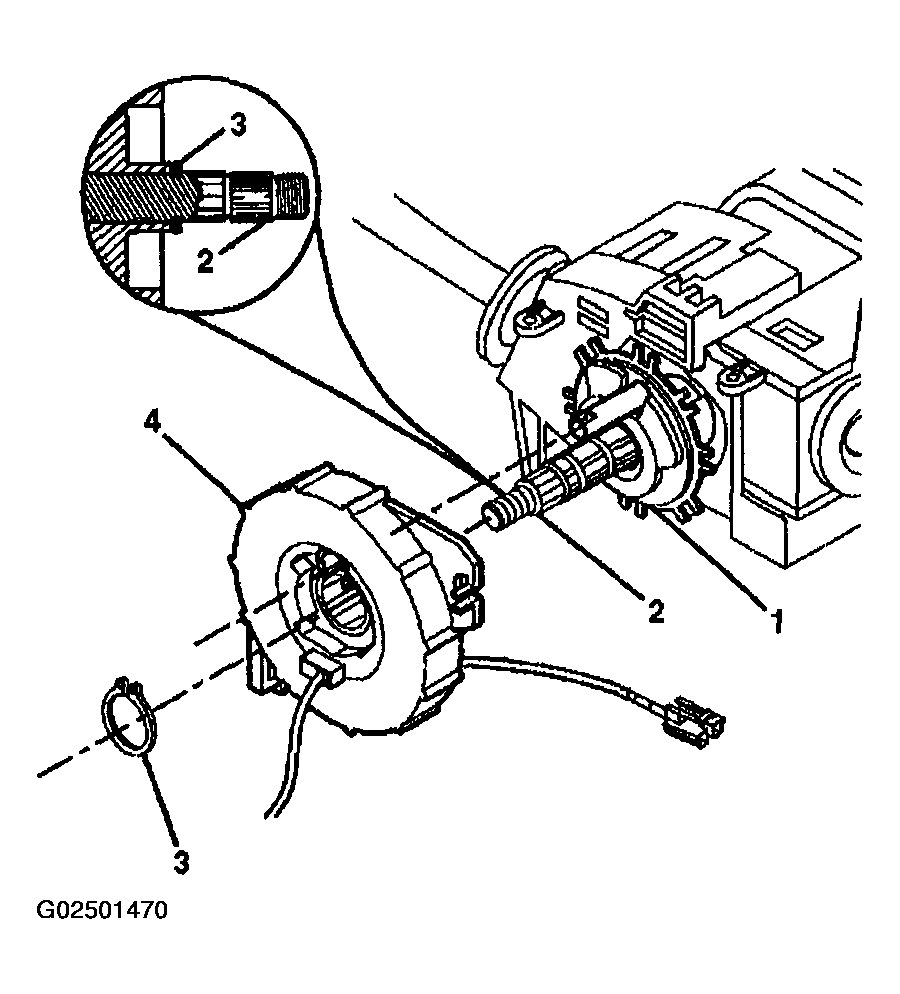

Fig 3: Identifying Inflatable Restraint Steering Wheel Module Coil
Courtesy of GENERAL MOTORS CORP.
Install the wire harness strap (2) into the steering W column tilt head assembly (1).
Install the wire harness straps (3) onto the wire harness assembly (4).
Install the wire harness assembly (4) into the wire harness strap (5).
Install the upper and lower trim covers. Refer to Steering Column Trim Covers - Assemble - Off Vehicle .
Enable the inflatable restraint steering wheel module. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
