Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the SIR system. Refer to Disabling the SIR System .
  2. Remove the passenger front seat. Refer to SEAT REPLACEMENT - BUCKET .
  3. Remove the passenger seat adjuster track cover (1). Refer to SEAT ADJUSTER TRACK COVER REPLACEMENT - FRONT .

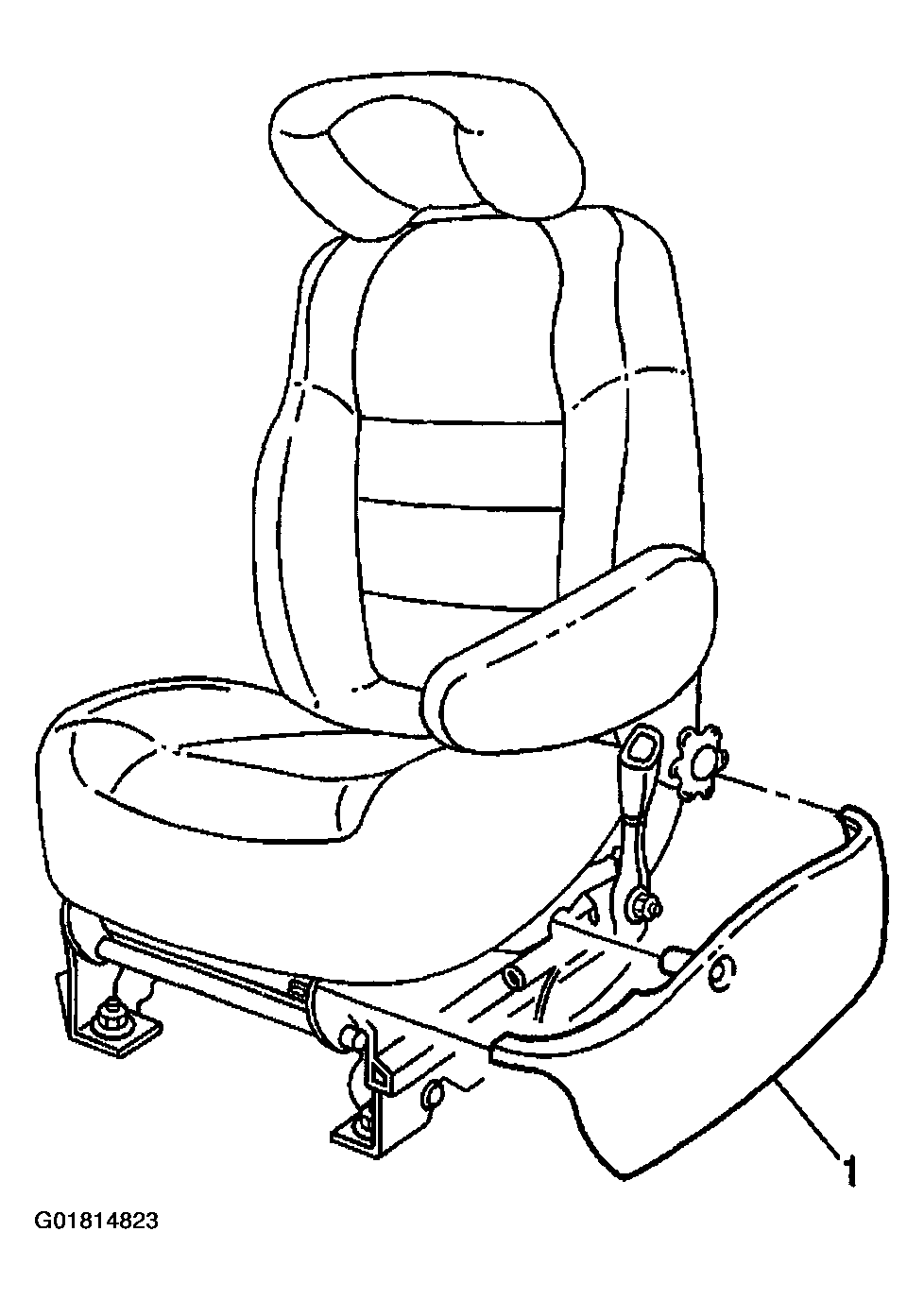

    Fig 1: Removing Driver Seat Adjuster Track Cover (RH)
    G01814823Courtesy of GENERAL MOTORS CORP.
  4. Remove the nut (1) from the passenger seat belt pretensioner.

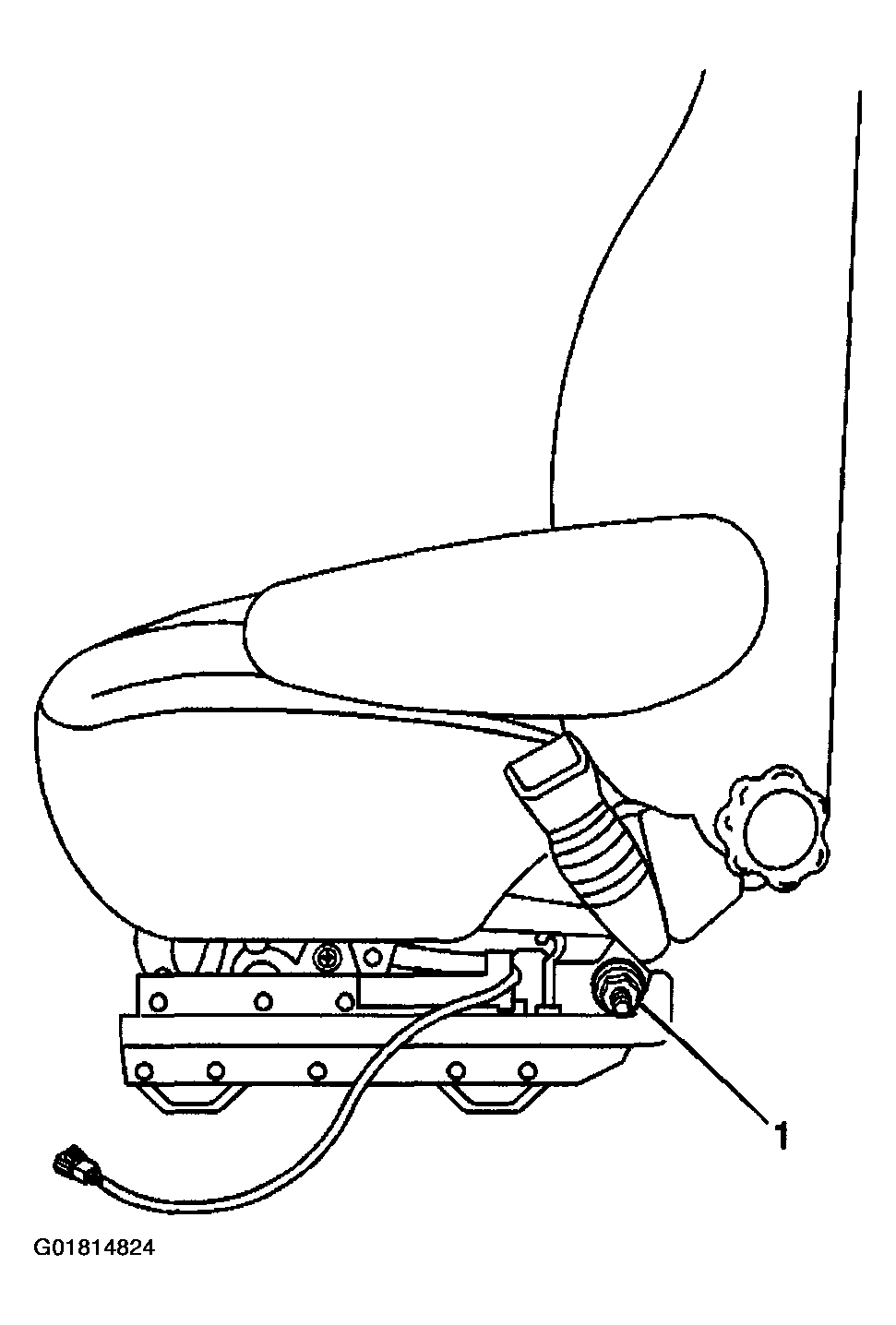

    Fig 2: Removing Nut & Driver Seat Belt Pretensioner (RH)
    G01814824Courtesy of GENERAL MOTORS CORP.
  5. Remove the passenger seat belt pretensioner wiring harness (2) through the passenger seat bottom frame.
  6. Remove the passenger seat belt pretensioner (1) from the passenger seat bottom frame.

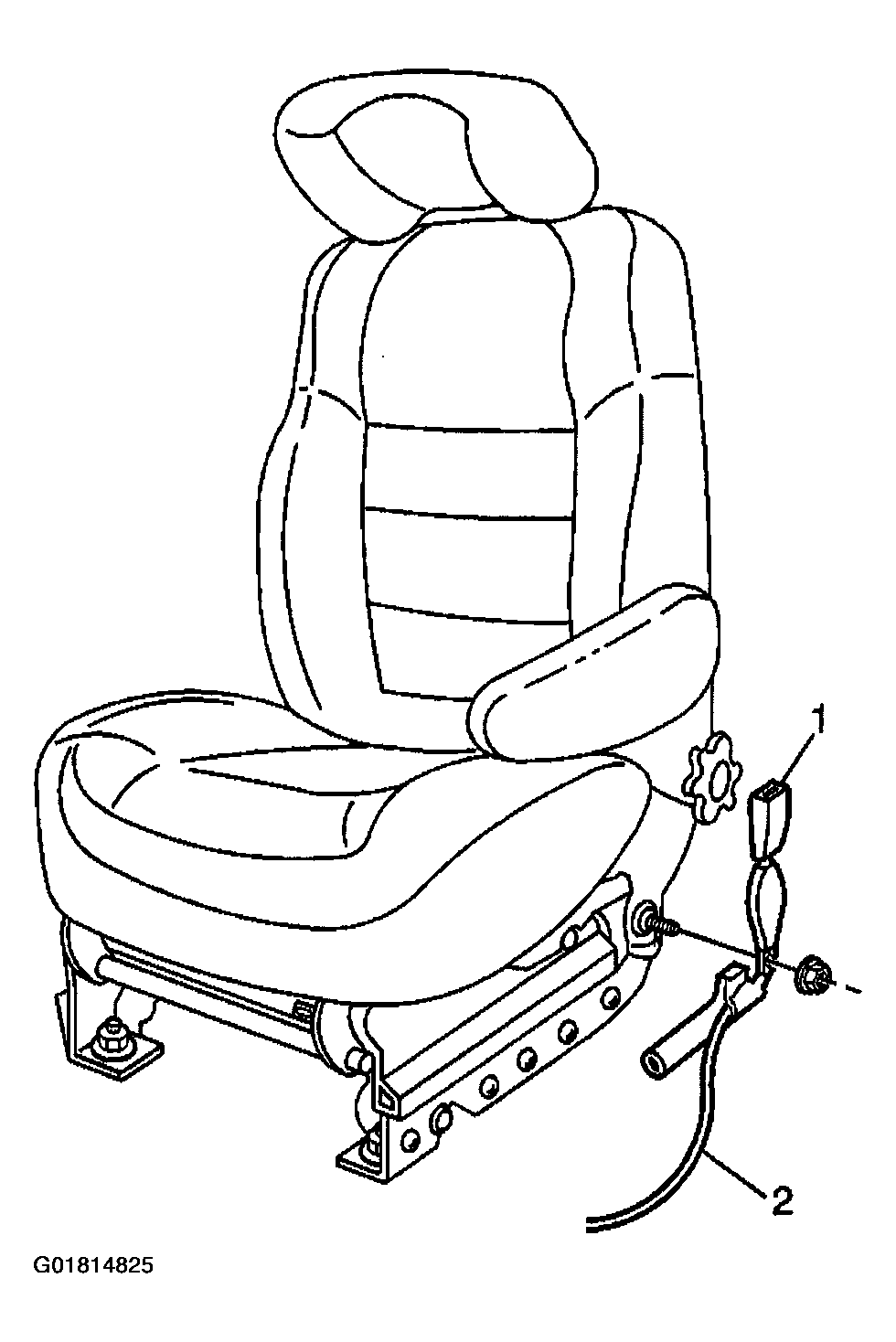

    Fig 3: Removing Driver Seat Belt Pretensioner & Wiring Harness (RH)
    G01814825Courtesy of GENERAL MOTORS CORP.
